HXY MOSFETDatasheet (PDF)

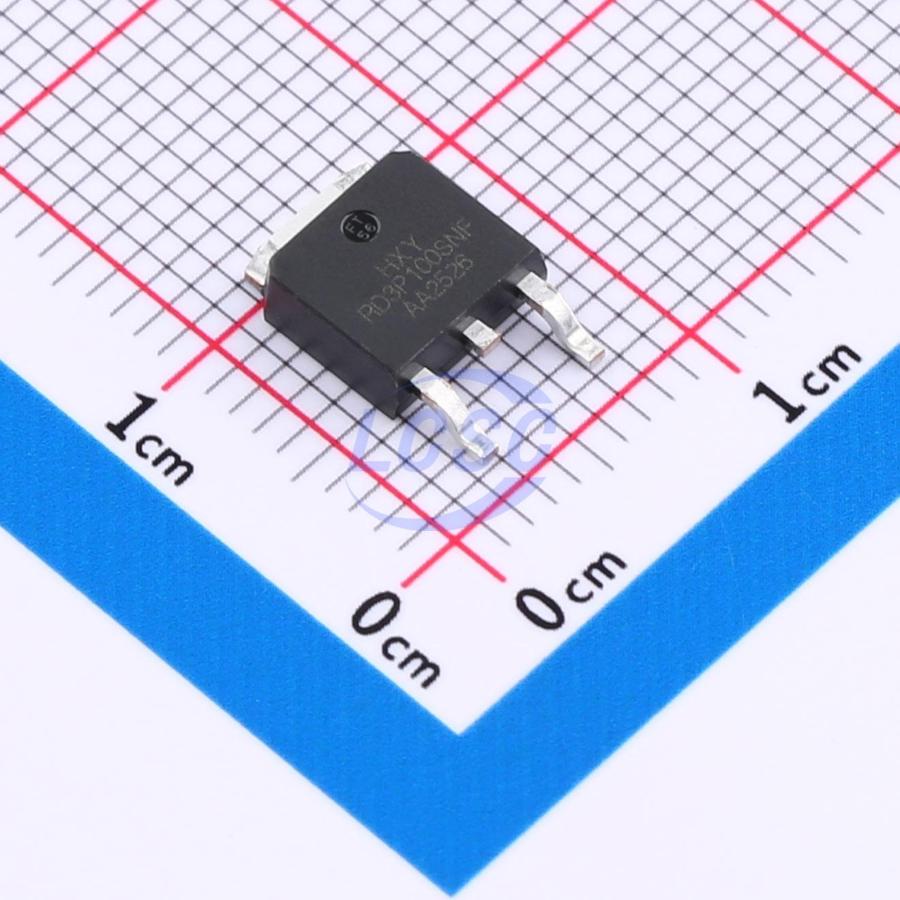

RD3P100SNFRATL-HXY
34.7W 100V 15A 100mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RD3P100SNFRATL-HXY
- Store part #
- C49420479
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
175 in stock
#C49420479
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.13 | ₹225.65 |
| 50+ | ₹36.14 | ₹1,807.00 |
| 150+ | ₹32.29 | ₹4,843.50 |
| 500+ | ₹27.49 | ₹13,745.00 |
| 2,500+ | ₹25.36 | ₹63,400.00 |
| 5,000+ | ₹24.07 | ₹1,20,350.00 |
5 × ₹45.13
₹225.65
excl. GST
₹266.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3P100SNFRATL-HXY
₹225.65 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 60pF
- Ciss-Input Capacitance
- 1.535nF
- Pd - Power Dissipation
- 34.7W
- Operating Temperature
- -55℃~+150℃
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 37pF
- RDS(on)
- 100mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 26.2nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUIRLR3410-HXY#C22366628HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 1,805 | ₹27.10 · 1,805 in stock | View |
 | FDD86113LZ-HXY#C54582563HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹62.38 · 48 in stock | View |
 | DI017N10D1-HXY#C54582581HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹54.67 · 48 in stock | View |
 | HUF75617D3ST-HXY#C54582710HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹59.36 · 48 in stock | View |
 | HUFA75617D3ST-HXY#C54582711HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 48 | ₹60.43 · 48 in stock | View |
