TECH PUBLICDatasheet (PDF)

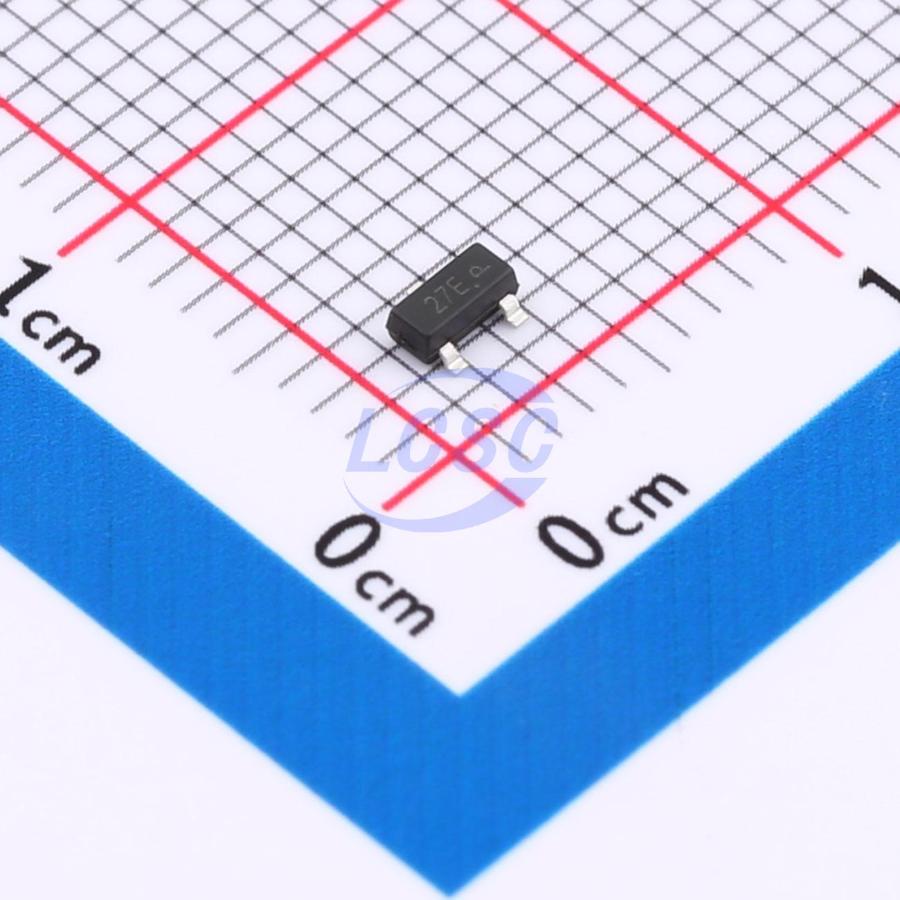

RESD1CAN
43VC Clamp 2A@8/20us Ipp SOT-23
SOT-23RoHSActive
24VWM 43VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RESD1CAN
- Store part #
- C28646387
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C28646387
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.01 | ₹90.10 |
| 100+ | ₹7.12 | ₹712.00 |
| 300+ | ₹6.18 | ₹1,854.00 |
| 3,000+ | ₹5.48 | ₹16,440.00 |
| 6,000+ | ₹4.91 | ₹29,460.00 |
| 9,000+ | ₹4.62 | ₹41,580.00 |
10 × ₹9.01
₹90.10
excl. GST
₹106.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RESD1CAN
₹90.10 for 10 + GST
Specifications
- Clamping Voltage
- 43V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 90W@8/20us
- Voltage - Breakdown
- 26.7V
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- Cellular Handsets and Accessories
- Notebooks and Handhelds
- Portable Instrumentation
- Set TopBox
- Industrial Controls
- CAN Bus Protection
- Automotive Appllcatrons
Key features
- 90w peak pulse power(8/20μs)
- Ulitra low leakage: nA level
- Operating voltage: 24V
- Low clamping voltage
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000 - 4 - 4 (EFT) 40A (5/50ns)
- IEC61000 - 4 - 5 (Lightning) 2A (8/20μs)
- RoHS Compliant
