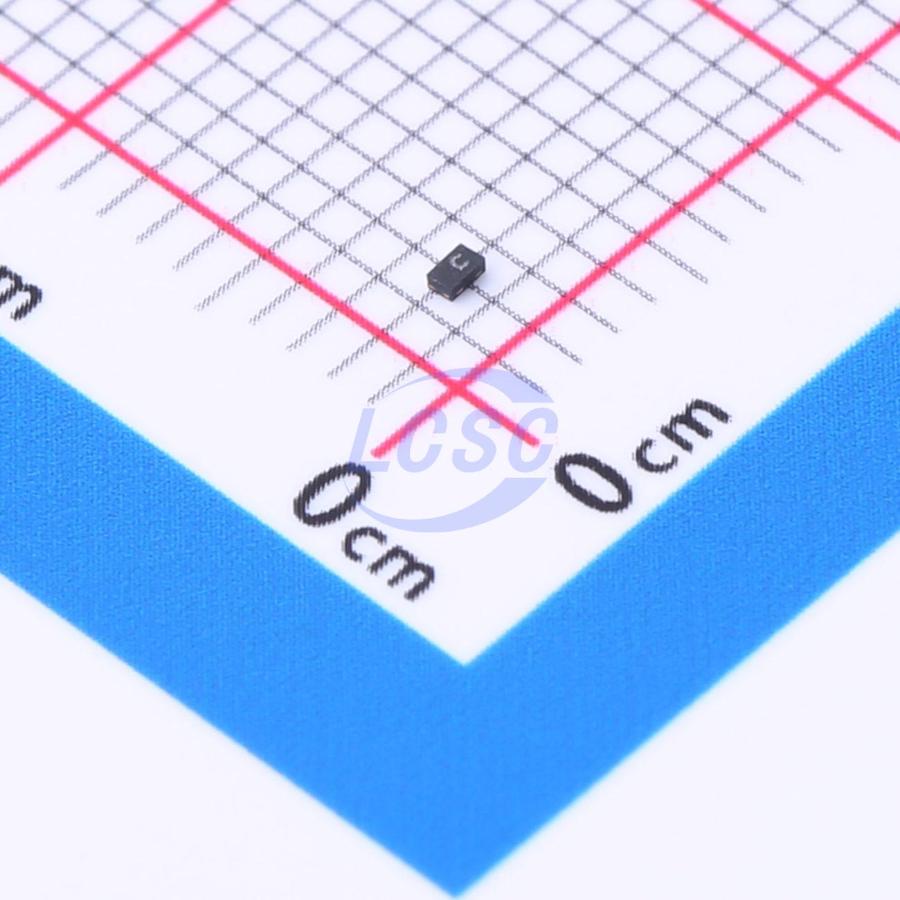

RF2945-000

The SESD Series Ultra Low Capacitance Discrete TVS provides unidirectional and bidirectional ESD protection for the most challenging high speed serial interfaces. Its low off-state capacitance, extremely low leakage (<50 nA) and low dynamic resistance make it compatible with high speed signaling such as USB 3.1, HDMI 2.0, DisplayPort, and V-by-One. The SESD series has an ESD (IEC 61000-4-2) rating of ±20 kV packaged in the industry’s popular 0402 and 0201 footprints.

Applications

• Ultra-high speed data lines
• USB 3.1, 3.0, 2.0
• HDMI 2.0, 1.4a, 1.3
• DisplayPort
• Thunderbolt (Light Peak)
• V-by-One
• LVDS interfaces
• Consumer, mobile and portable electronics
• Tablet PC and external storage with high speed interfaces
• Applications requiring high ESD performance in small packages

Key features

• 0.13pF MAX bidirectional off-state capacitance
• 0.25pF MAX unidirectional off-state capacitance
• IEC 61000-4-2 ESD rating of ±20 kV air and contact discharge
• Low clamping voltage of 10V @ |PP=2A (Bidirectional) (tP=8/20μs)
• PPAP capable
• Low profile 0201 and 0402 DFN packages
• Facilitates excellent signal integrity
• ELV-Compliant
• RoHS-Compliant and Lead-Free
