onsemiDatasheet (PDF)

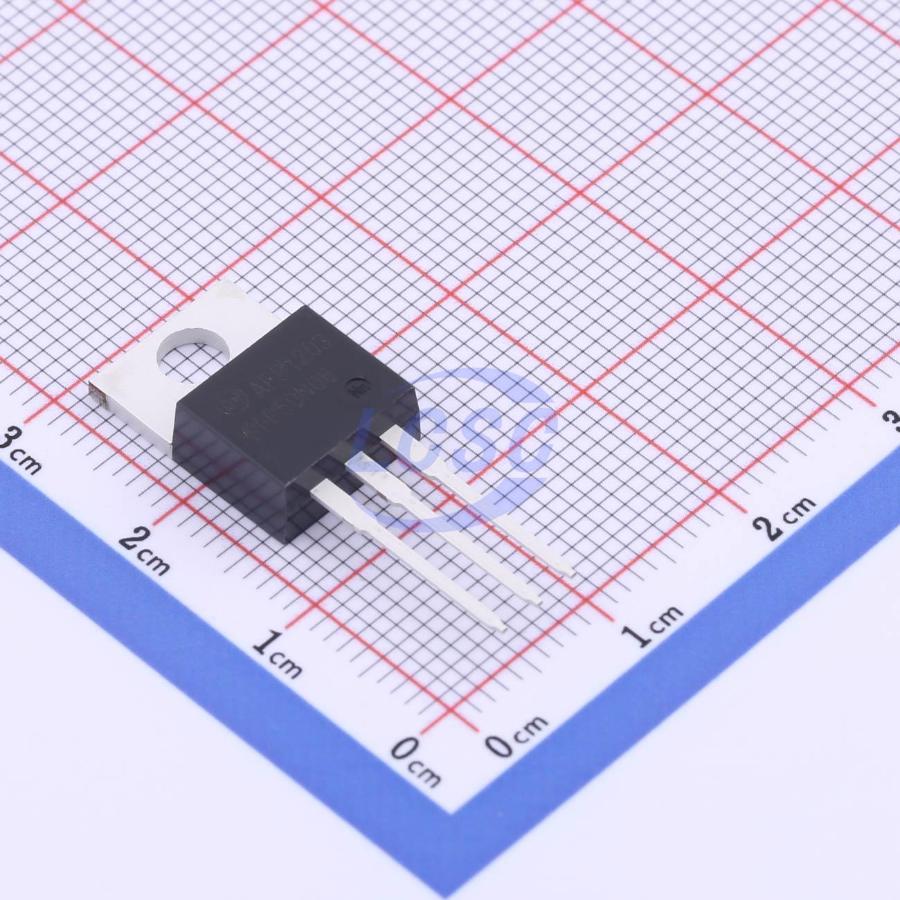

RFP50N06
N-Channel 60V 50A 131W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 60V 50A TO-220AB
- Manufacturer
- onsemi
- Manufacturer part #
- RFP50N06
- Store part #
- C274239
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
93 in stock
#C274239
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹502.58 | ₹502.58 |
| 10+ | ₹443.07 | ₹4,430.70 |
| 50+ | ₹405.71 | ₹20,285.50 |
| 100+ | ₹367.49 | ₹36,749.00 |
| 500+ | ₹350.12 | ₹1,75,060.00 |
| 800+ | ₹342.74 | ₹2,74,192.00 |
1 × ₹502.58
₹502.58
excl. GST
₹593.04 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RFP50N06
₹502.58 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 600pF
- Ciss-Input Capacitance
- 2.02nF
- Pd - Power Dissipation
- 131W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 22mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.64 g
Overview
These N-channel power MOSFETs are manufactured using the MegaFET process. This process features geometries approaching LSI scales, enabling optimal silicon utilization and delivering outstanding performance. They are designed for applications such as switching regulators, switching converters, motor drivers, and relay drivers. These transistors can be driven directly by ICs.
Applications
- Switching Regulator - Switching Converter - Motor Driver - Relay Driver
Key features
- 50A, 60V
- rDS(ON) = 0.022 Ω
- Temperature-compensated PSPICE® model
- 175°C operating temperature
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NCE8290AC#C775787NCE · TO-220-3L | NCE | TO-220-3L | 538 | ₹71.36 · 538 in stock | View |
 | SPZ44TQ#C49257255Siliup · TO-220-3L | Siliup | TO-220-3L | 290 | ₹52.91 · 290 in stock | View |
 | SE8090A#C238632SINO-IC · TO-220 | SINO-IC | TO-220 | 34 | ₹78.77 · 34 in stock | View |
