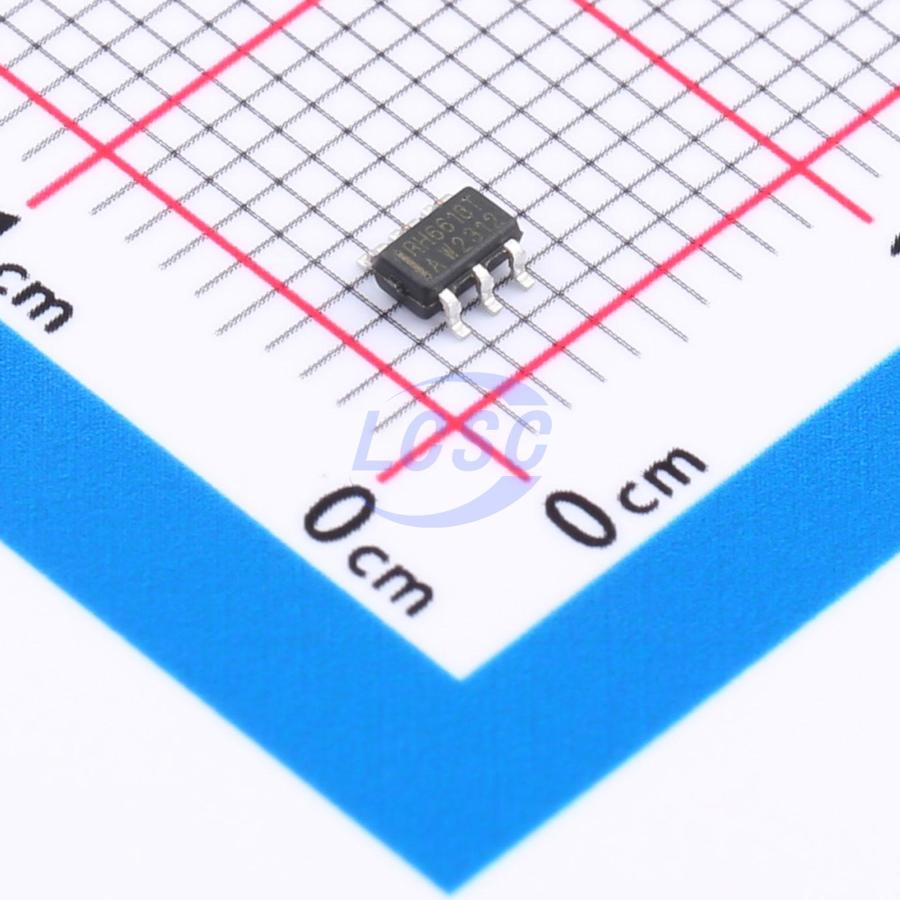

RONGHE Microelectronics

RH6618T

LED Driver IC 1 Output PWM Dimming SOT-23-6

SOT-23-6ROHS CompliantActive

Single-channel touch-type LED dimming IC

Manufacturer: RONGHE Microelectronics
Manufacturer part #: RH6618T
Store part #: C20610684
Package / case: SOT-23-6
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,155 in stock

#C20610684

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹7.54	₹37.70
50+	₹6.59	₹329.50
150+	₹6.11	₹916.50
500+	₹5.76	₹2,880.00
3,000+	₹5.46	₹16,380.00
6,000+	₹5.32	₹31,920.00

Quantity (min 5, multiples of 5)

5 × ₹7.54

₹37.70

excl. GST

₹44.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RH6618T

₹37.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Frequency - Switching: 25kHz
Operating temperature: -20℃~+85℃
Number of Channels: 1
Output Current: 65mA
Voltage - Input(DC): 2.4V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.046 g

Overview

RH6618 is a single-channel capacitive touch-sensing PWM output dimming IC. RH6618 supports touch functionality through dielectric isolation (e.g., glass, acrylic, plastic, ceramic), ensuring high safety. Featuring a built-in voltage regulator, power-on reset/under-voltage reset, and an ambient adaptive algorithm, the RH6618 delivers excellent EMI immunity. RH6618 applications: touch-dimmable LED desk lamps, touch-dimmable LED wall lamps, and other touch-based products requiring PWM output control.

Applications

Touch-dimming LED desk lamps
Touch-dimming LED wall lamps
Other touch-based products requiring PWM output control

Key features

Operating voltage: 2.4V~5.5V
Standby average current 15uA@3V
0.5s fast power-on initialization
Ambient adaptive function for rapid response to scenarios such as power-on before medium coverage and touch power-on
Reliable POR and LVR performance
PWM output frequency 25KHz (stepless) / 33KHz (3-level dimming), effectively reducing flicker
Package types: SOP8, DIP8, SOT23-6
