ROHMDatasheet (PDF)

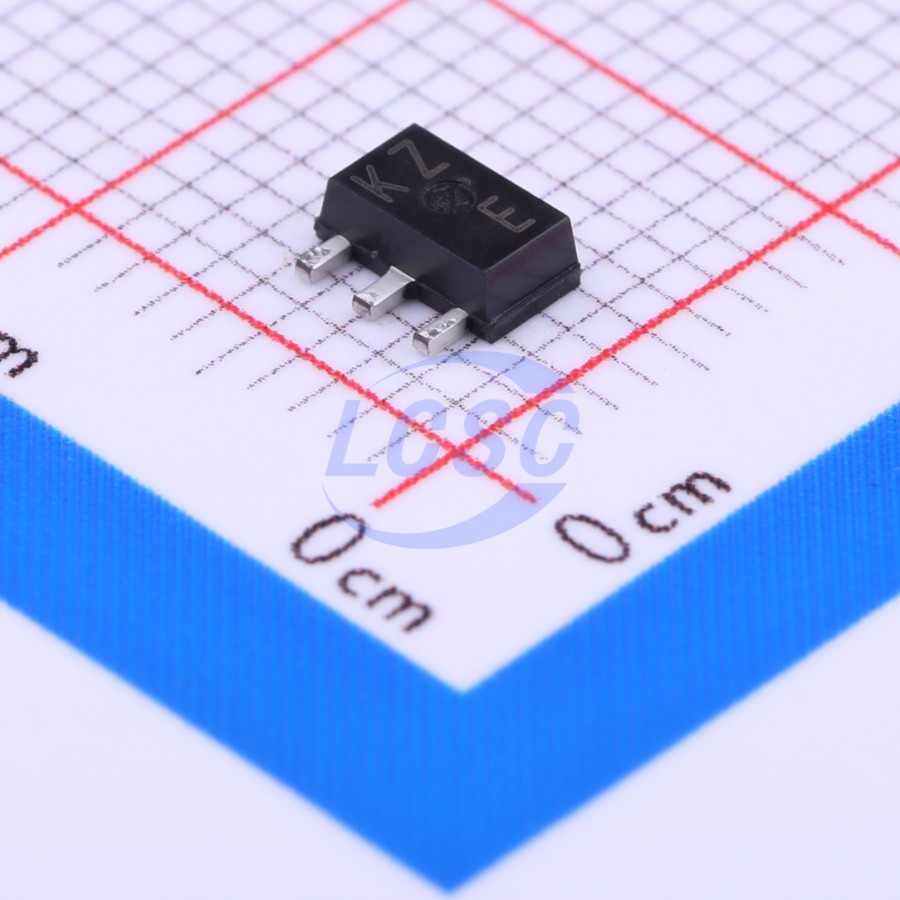

RHP030N03T100
N-Channel 30V 3A 2W Surface Mount SOT-89
SOT-89ROHS3 CompliantActive
MOSFET N-CH 30V 3A SOT-89
- Manufacturer
- ROHM
- Manufacturer part #
- RHP030N03T100
- Store part #
- C308740
- Package / case
- SOT-89
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C308740
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.80 | ₹214.00 |
| 50+ | ₹33.18 | ₹1,659.00 |
| 150+ | ₹29.05 | ₹4,357.50 |
| 1,000+ | ₹23.91 | ₹23,910.00 |
| 2,000+ | ₹21.62 | ₹43,240.00 |
| 5,000+ | ₹20.24 | ₹1,01,200.00 |
5 × ₹42.80
₹214.00
excl. GST
₹252.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
RHP030N03T100
₹214.00 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 90pF
- Ciss-Input Capacitance
- 160pF
- Pd - Power Dissipation
- 2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3A
- Reverse Transfer Capacitance (Crss)
- 27pF
- RDS(on)
- 210mΩ@4V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 6.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.129 g
Overview
Applications
- Switching
Key features
- Low On-resistance
- 4V drive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BRCS4N10TA#C22449011BLUE ROCKET · SOT-89 | BLUE ROCKET | SOT-89 | 670 | ₹10.61 · 670 in stock | View |
 | PJM20N60SQ#C42405713PJSEMI · SOT-89 | PJSEMI | SOT-89 | 25 | ₹19.73 · 25 in stock | View |
 | 5N10 SOT-89#C42387181KUU · SOT-89 | KUU | SOT-89 | 40 | ₹7.47 · 40 in stock | View |
| PCP1403-TD-H#C899997onsemi · SOT-89-3 | onsemi | SOT-89-3 | 2,075 | ₹59.63 · 2,075 in stock | View | |
 | TPM603NT3#C2923350TECH PUBLIC · SOT-89-3 | TECH PUBLIC | SOT-89-3 | 510 | ₹40.81 · 510 in stock | View |
