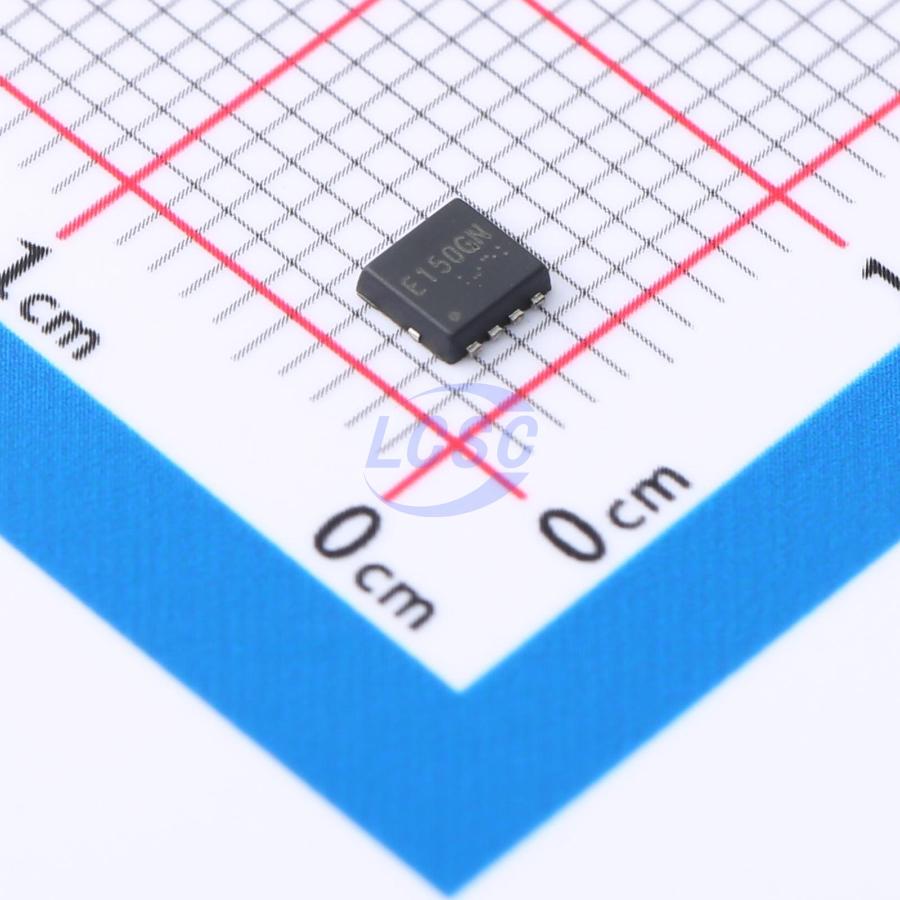

RQ3E150GNTB
N-Channel 30V 39A 17W HSMT-8(3.2x3)
HSMT-8(3.2x3)ROHS3 CompliantActive
MOSFET N-CH 30V 39A HSMT-8(3.2x3)
- Manufacturer
- ROHM
- Manufacturer part #
- RQ3E150GNTB
- Store part #
- C3288440
- Package / case
- HSMT-8(3.2x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
394 in stock
#C3288440
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹79.54 | ₹79.54 |
| 10+ | ₹64.32 | ₹643.20 |
| 30+ | ₹56.72 | ₹1,701.60 |
| 100+ | ₹49.11 | ₹4,911.00 |
| 500+ | ₹44.56 | ₹22,280.00 |
| 1,000+ | ₹42.38 | ₹42,380.00 |
1 × ₹79.54
₹79.54
excl. GST
₹93.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RQ3E150GNTB
₹79.54 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 250pF
- Current - Continuous Drain(Id)
- 39A
- Ciss-Input Capacitance
- 850pF
- Pd - Power Dissipation
- 17W
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 6.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15.3nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.137 g
Overview
Applications
- Switching
Key features
- Low on - resistance.
- High power package (HSMT8).
- Pb-free lead plating ; RoHS compliant
- Halogen free
- 100% Rg and UIS tested.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMTH6016LFVWQ-7#C3279409DIODES · PowerDI3333-8 | DIODES | PowerDI3333-8 | 1 | ₹68.47 · 1 in stock | View |
 | XR60N03D#C42456732XNRUSEMI · PDFN3333-8L | XNRUSEMI | PDFN3333-8L | 3,990 | ₹11.27 · 3,990 in stock | View |
 | XR50N03D#C42456731XNRUSEMI · PDFN3333-8L | XNRUSEMI | PDFN3333-8L | 1,325 | ₹10.11 · 1,325 in stock | View |
 | SDM56AG04LV#C29780698SINEDEVICE · PDFN3.3x3.3-8L | SINEDEVICE | PDFN3.3x3.3-8L | 2 | ₹77.41 · 2 in stock | View |
 | PTQ3060#C49384059HT(Shenzhen Jinyu Semicon) · PDFN-8(3.3x3.3) | HT(Shenzhen Jinyu Semicon) | PDFN-8(3.3x3.3) | 4,795 | ₹12.65 · 4,795 in stock | View |
