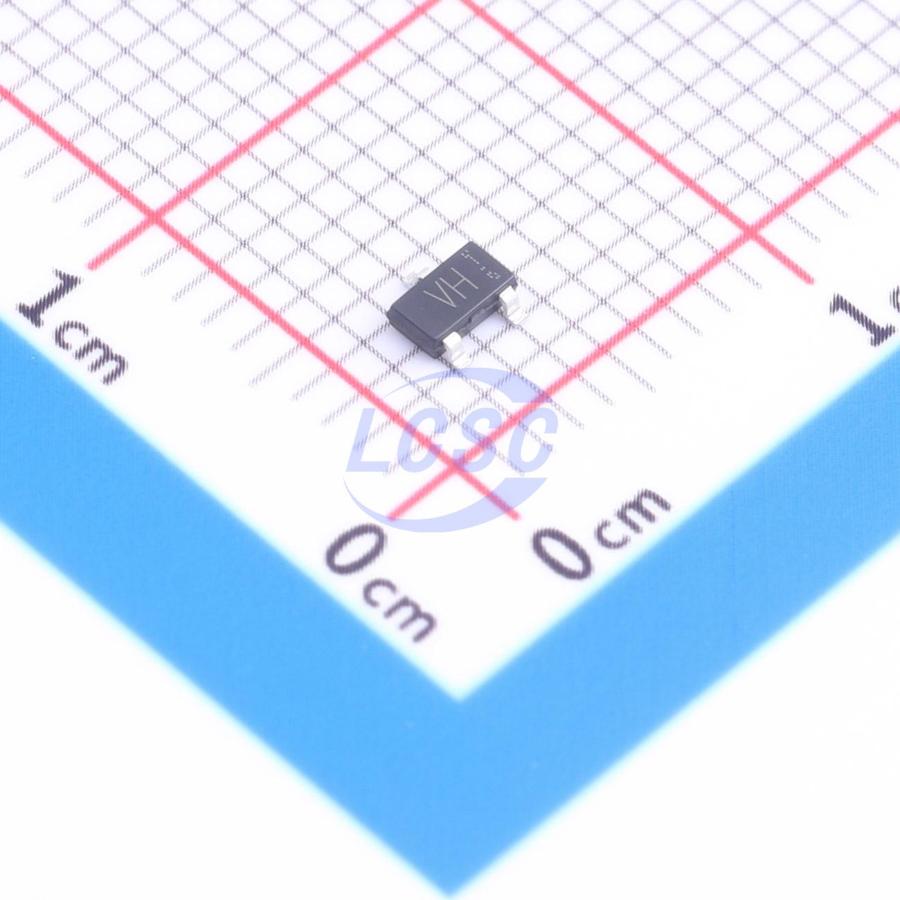

RQ5E015RPTL
30V 1.5A 700mW 160mΩ@10V 1 P-Channel TSMT3 Single FETs, MOSFETs RoHS
TSMT3ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RQ5E015RPTL
- Store part #
- C6201369
- Package / case
- TSMT3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6201369
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹95.44 | ₹95.44 |
| 10+ | ₹93.93 | ₹939.30 |
| 30+ | ₹92.86 | ₹2,785.80 |
| 100+ | ₹91.79 | ₹9,179.00 |
1 × ₹95.44
₹95.44
excl. GST
₹112.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RQ5E015RPTL
₹95.44 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 1.5A
- Ciss-Input Capacitance
- 230pF
- Pd - Power Dissipation
- 700mW
- RDS(on)
- 160mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 3.2nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.066 g
Overview
Applications
- Switching applications
Key features
- Low on-resistance
- Built-in gate-source protection diode
- Compact SMT package (TSMT3)
- Lead-free plating; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJM03P40SA#C42431758PJSEMI · SOT-23 | PJSEMI | SOT-23 | 120 | ₹7.53 · 120 in stock | View |
 | RQ5E025SPTL#C509986ROHM · SOT-346 | ROHM | SOT-346 | 33 | ₹131.10 · 33 in stock | View |
 | 2309#C22458617High Diode · SOT-23 | High Diode | SOT-23 | 2,480 | ₹4.50 · 2,480 in stock | View |
 | NCE2303#C414149NCE · SOT-23 | NCE | SOT-23 | 850 | ₹10.46 · 850 in stock | View |
 | SSM3J353F,LF#C6497273TOSHIBA · TO-236-3(SOT-23-3) | TOSHIBA | TO-236-3(SOT-23-3) | 81 | ₹54.86 · 81 in stock | View |
