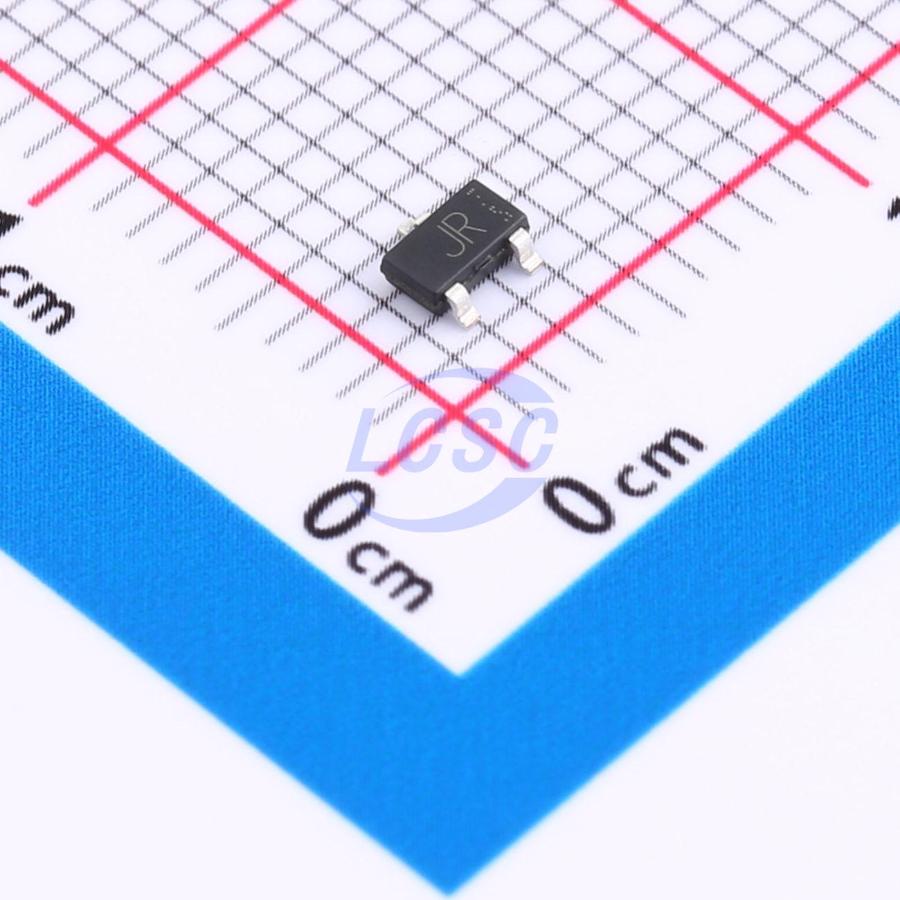

RQ5E035ATTCL
P-Channel 30V 3.5A 1W Surface Mount SOT-346
SOT-346ROHS3 CompliantActive
MOSFET P-CH 30V 3.5A SOT-346
- Manufacturer
- ROHM
- Manufacturer part #
- RQ5E035ATTCL
- Store part #
- C509989
- Package / case
- SOT-346
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,355 in stock
#C509989
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.27 | ₹126.35 |
| 50+ | ₹19.77 | ₹988.50 |
| 150+ | ₹17.41 | ₹2,611.50 |
| 500+ | ₹14.47 | ₹7,235.00 |
| 3,000+ | ₹13.18 | ₹39,540.00 |
| 6,000+ | ₹12.38 | ₹74,280.00 |
5 × ₹25.27
₹126.35
excl. GST
₹149.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RQ5E035ATTCL
₹126.35 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 85pF
- Ciss-Input Capacitance
- 475pF
- Pd - Power Dissipation
- 1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 3.5A
- Reverse Transfer Capacitance (Crss)
- 65pF
- RDS(on)
- 50mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Switching
Key features
- Low on - resistance
- Small Surface Mount Package (TSMT3)
- Pb-free lead plating ; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | WST2307#C2906294Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 2,540 | ₹4.79 · 2,540 in stock | View |
 | SP3407T1#C41354968Siliup · SOT-23-3L | Siliup | SOT-23-3L | 2,940 | ₹5.86 · 2,940 in stock | View |
 | VB2355#C416212VBsemi Elec · SOT-23(TO-236) | VBsemi Elec | SOT-23(TO-236) | 2,445 | ₹15.20 · 2,445 in stock | View |
 | SQ2389ES-T1_GE3-VB#C22395894VBsemi Elec · SOT-23 | VBsemi Elec | SOT-23 | 1,475 | ₹23.63 · 1,475 in stock | View |
 | YJL3407CQ#C20605886YANGJIE · SOT-23(TO-236) | YANGJIE | SOT-23(TO-236) | 645 | ₹11.09 · 645 in stock | View |
