ROHMDatasheet (PDF)

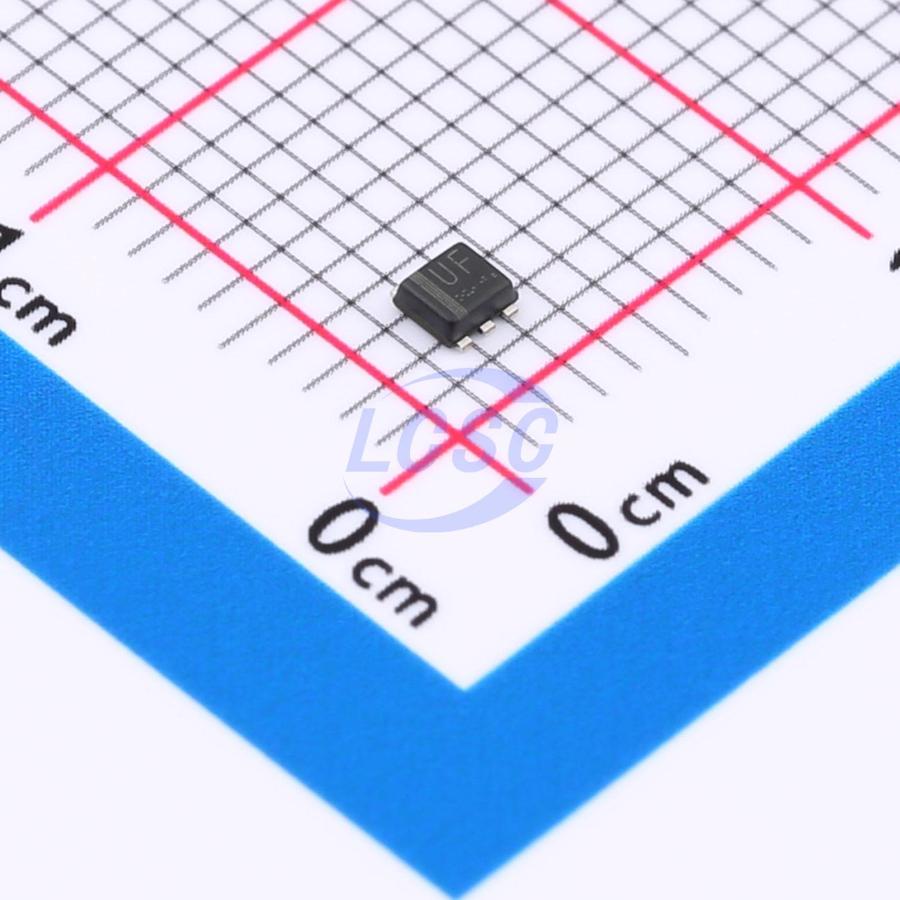

RRL035P03TR
P-Channel 30V 3.5A 1W Surface Mount TUMT6
TUMT6ROHS3 CompliantActive
MOSFET P-CH 30V 3.5A TUMT6
- Manufacturer
- ROHM
- Manufacturer part #
- RRL035P03TR
- Store part #
- C6987798
- Package / case
- TUMT6
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
620 in stock
#C6987798
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.51 | ₹107.55 |
| 50+ | ₹20.97 | ₹1,048.50 |
| 150+ | ₹20.60 | ₹3,090.00 |
| 500+ | ₹20.23 | ₹10,115.00 |
5 × ₹21.51
₹107.55
excl. GST
₹126.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RRL035P03TR
₹107.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 120pF
- Current - Continuous Drain(Id)
- 3.5A
- Ciss-Input Capacitance
- 800pF
- Pd - Power Dissipation
- 1W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 72mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 8nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.027 g
Overview
The third-generation power MOSFETs utilize advanced processing technology to achieve extremely low on-resistance per unit silicon area. This advantage, combined with the well-known fast switching speed and robust device design of power MOSFETs, provides designers with an exceptionally efficient and reliable device suitable for a wide variety of applications. The D²PAK is a surface-mount power package capable of accommodating die sizes up to HEX-4. It offers the highest power handling capability and the lowest possible on-resistance of any existing surface-mount package. Due to its low internal connection resistance, the D²PAK is suitable for high-current applications and can dissipate up to 2.0 W of power in typical SMT applications.
Applications
- Switching
Key features
- Low on - resistance
- Built-in G-S protection diode.
- Small surface mount package(TUMT6)
- Pb-free lead plating ; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SQA405EJ-T1_GE3#C5143597VISHAY · SC-70-6L | VISHAY | SC-70-6L | 7,306 | ₹108.46 · 7,306 in stock | View |
 | MCH6342-TL-W#C480774onsemi · SC-88FL(MCPH-6) | onsemi | SC-88FL(MCPH-6) | 2 | ₹75.65 · 2 in stock | View |
| MCH6341-TL-W#C891545onsemi · MCPH-6 | onsemi | MCPH-6 | 211 | ₹72.86 · 211 in stock | View | |
 | SI1443EDH-T1-GE3#C727305VISHAY · SC-70-6 | VISHAY | SC-70-6 | 663 | ₹63.36 · 663 in stock | View |
