VISHAYDatasheet (PDF)

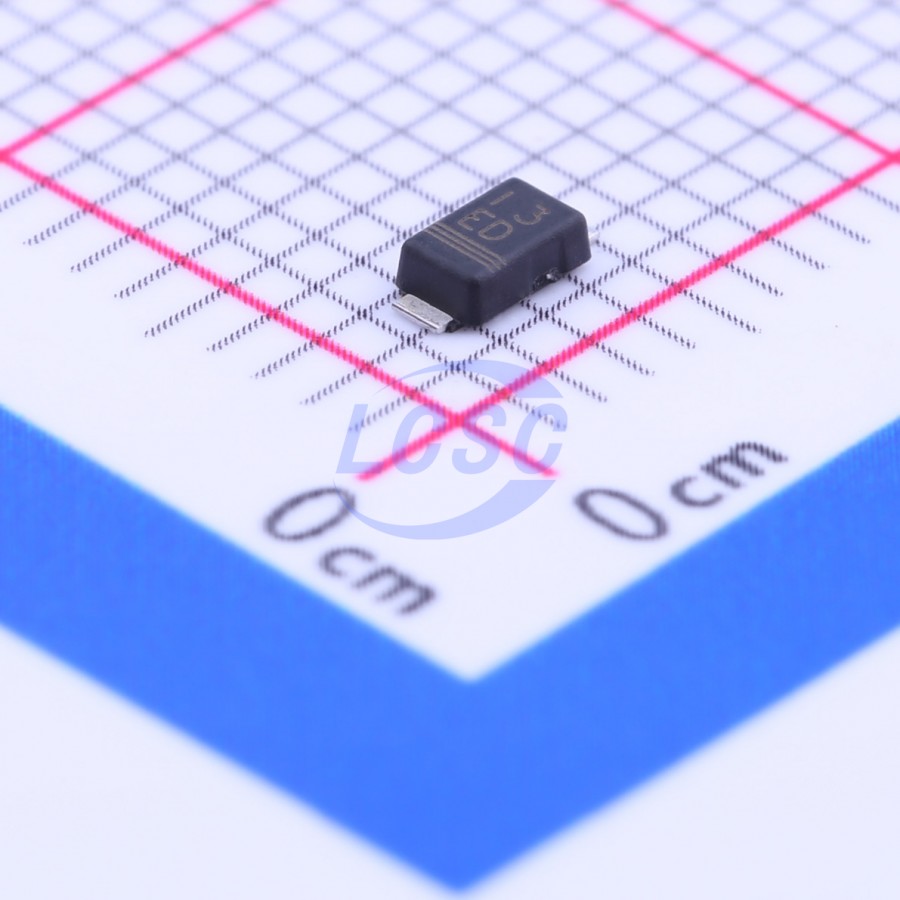

RS07D-GS08
Diode 200V 1.4A Surface Mount SMF
SMFROHS3 CompliantActive
DIODE STANDARD 200V 1.4A SMF
- Manufacturer
- VISHAY
- Manufacturer part #
- RS07D-GS08
- Store part #
- C145211
- Package / case
- SMF
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
245 in stock
#C145211
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.83 | ₹114.15 |
| 50+ | ₹17.68 | ₹884.00 |
| 150+ | ₹15.47 | ₹2,320.50 |
| 500+ | ₹12.71 | ₹6,355.00 |
| 3,000+ | ₹11.48 | ₹34,440.00 |
| 6,000+ | ₹10.74 | ₹64,440.00 |
5 × ₹22.83
₹114.15
excl. GST
₹134.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS07D-GS08
₹114.15 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@700mA
- Reverse Leakage Current (Ir)
- 10uA@200V
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1.4A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Key features
- For surface mounted applications
- Low profile package
- Ideal for automated placement
- Glass passivated RoHS
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
- Meets JESD 201 class 2 whisker test
- Wave and reflow solderable
- AEC - Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS07J-GS18#C3032343VISHAY · SMF(DO-219AB) | VISHAY | SMF(DO-219AB) | 3,785 | ₹11.22 · 3,785 in stock | View |
 | S07M-M-08#C17617827VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 15 | ₹29.79 · 15 in stock | View |
 | S07M-GS08#C466985VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 72,180 | ₹7.46 · 72,180 in stock | View |
 | SE20FGHM3/I#C17348674VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 15 | ₹49.55 · 15 in stock | View |
| SE15FD-M3/H#C17227479VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹23.89 · 0 in stock | View | |
