ROHMDatasheet (PDF)

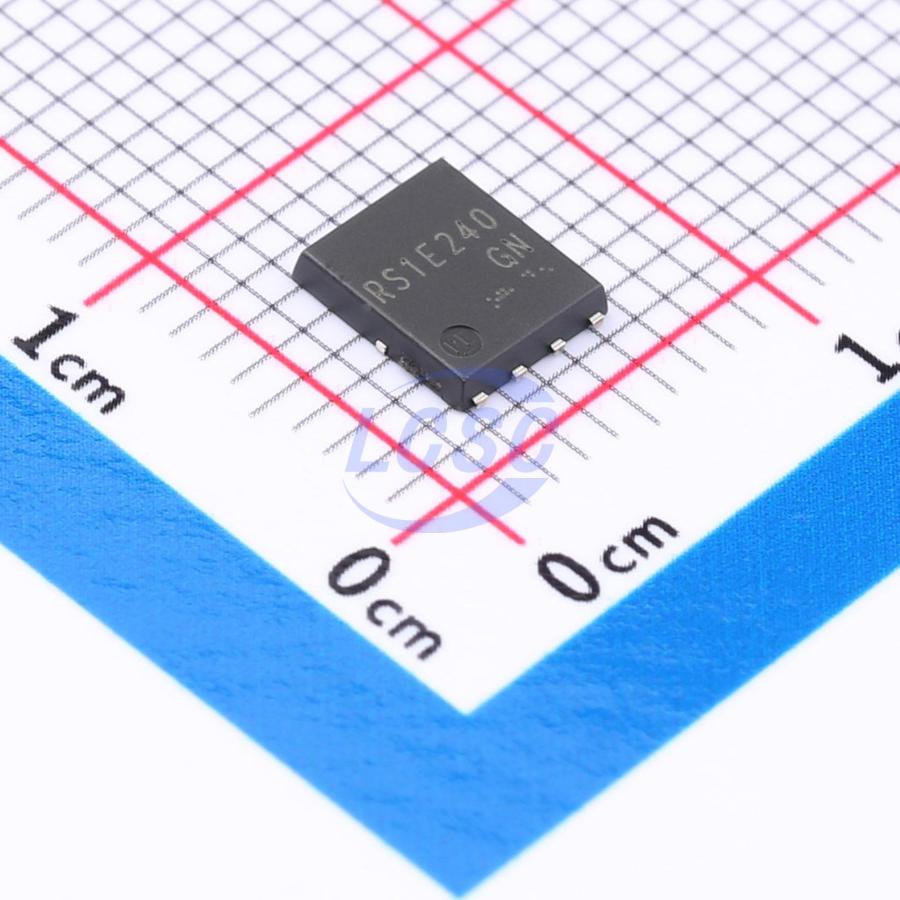

RS1E240GNTB
N-Channel 30V 72A 3W Surface Mount HSOP-8
HSOP-8ROHS3 CompliantActive
MOSFET N-CH 30V 72A HSOP-8
- Manufacturer
- ROHM
- Manufacturer part #
- RS1E240GNTB
- Store part #
- C3278140
- Package / case
- HSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C3278140
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹171.57 | ₹171.57 |
| 10+ | ₹143.31 | ₹1,433.10 |
| 30+ | ₹127.87 | ₹3,836.10 |
| 100+ | ₹110.47 | ₹11,047.00 |
| 500+ | ₹102.64 | ₹51,320.00 |
| 1,000+ | ₹99.16 | ₹99,160.00 |
1 × ₹171.57
₹171.57
excl. GST
₹202.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RS1E240GNTB
₹171.57 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 375pF
- Current - Continuous Drain(Id)
- 72A
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 3W;27.4W
- Reverse Transfer Capacitance (Crss)
- 110pF
- RDS(on)
- 2.6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 23nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.12 g
Overview
A 110 W ultra-rugged LDMOS power transistor for broadcast and industrial applications from HF to 600 MHz.
Applications
- Switching applications
Key features
- Low on-resistance.
- High-power package (HSOP8).
- Lead-free pin plating; RoHS compliant.
- Halogen-free.
- 100% Rg and UIS tested.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AGMH403A1#C22364295AGMSEMI · PDFN-8(5x6) | AGMSEMI | PDFN-8(5x6) | 101 | ₹69.67 · 101 in stock | View |
 | RS30N115G#C51904710REASUNOS · DFN-8(5x6) | REASUNOS | DFN-8(5x6) | 130 | ₹21.55 · 130 in stock | View |
| HSBA4050#C42376803HUASHUO · PRPAK5x6-8L | HUASHUO | PRPAK5x6-8L | 2,750 | ₹31.92 · 2,750 in stock | View | |
 | CMSA8059A#C54951119Cmos · DFN-8(5x6) | Cmos | DFN-8(5x6) | 430 | ₹19.82 · 430 in stock | View |
| MX3003D56#C53670873Wuxi Maxinmicro · DFN-8(5x6) | Wuxi Maxinmicro | DFN-8(5x6) | 4,990 | ₹18.55 · 4,990 in stock | View | |
