DIODESDatasheet (PDF)

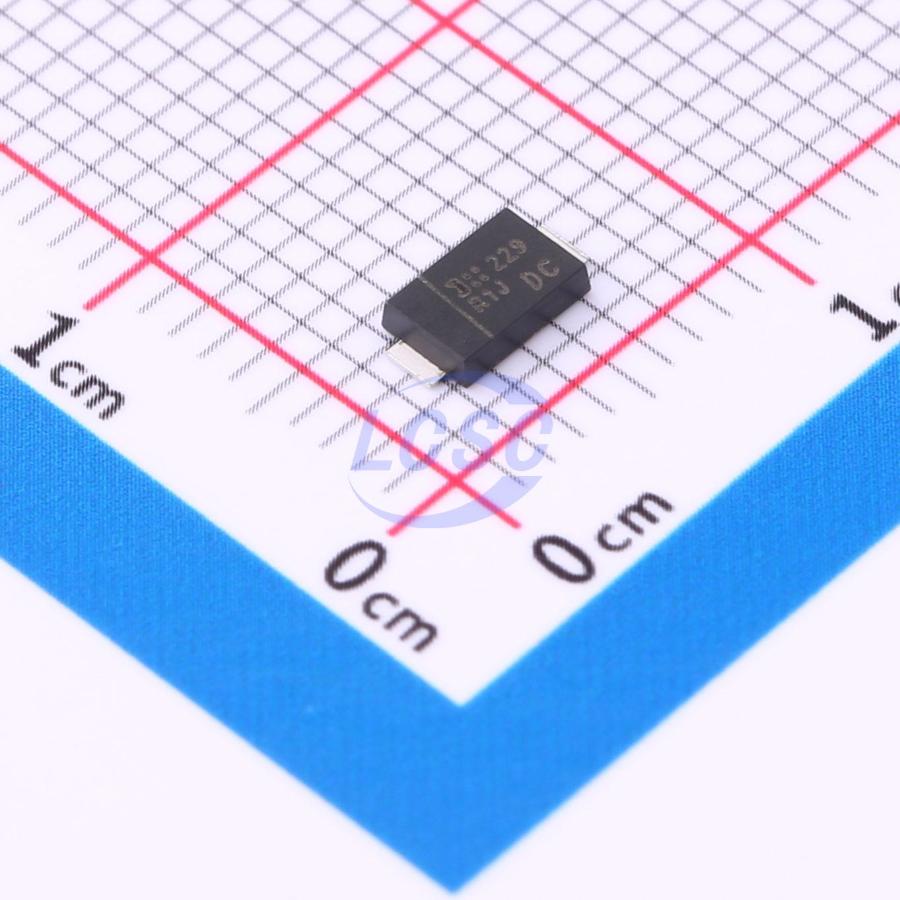

RS1JDFQ-13
Diode 600V 1A SMD
D-FLATROHS3 CompliantActive
DIODE STANDARD 600V 1A SMD
- Manufacturer
- DIODES
- Manufacturer part #
- RS1JDFQ-13
- Store part #
- C5249189
- Package / case
- D-FLAT
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C5249189
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.48 | ₹77.40 |
| 50+ | ₹15.15 | ₹757.50 |
| 150+ | ₹14.92 | ₹2,238.00 |
| 500+ | ₹14.70 | ₹7,350.00 |
5 × ₹15.48
₹77.40
excl. GST
₹91.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
RS1JDFQ-13
₹77.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.062 g
Overview
RS1JDFQ is a rectifier in a thin D-FLAT package. With fast recovery time and high efficiency, it is well suited for general applications such as reverse protection, switching, and blocking.
Applications
- Reverse protection
- Switching
- Blocking
Key features
- Glass passivated die construction
- Fast recovery time for high efficiency
- Surge overload rating to 30A peak
- High current capability
- Low profile package with height less than 1.1mm
- Pb-free finish; RoHS compliant
- Halogen and antimony free, "Green" device
- AEC-Q101 qualified for high reliability
- PPAP capable
