ROHMDatasheet (PDF)

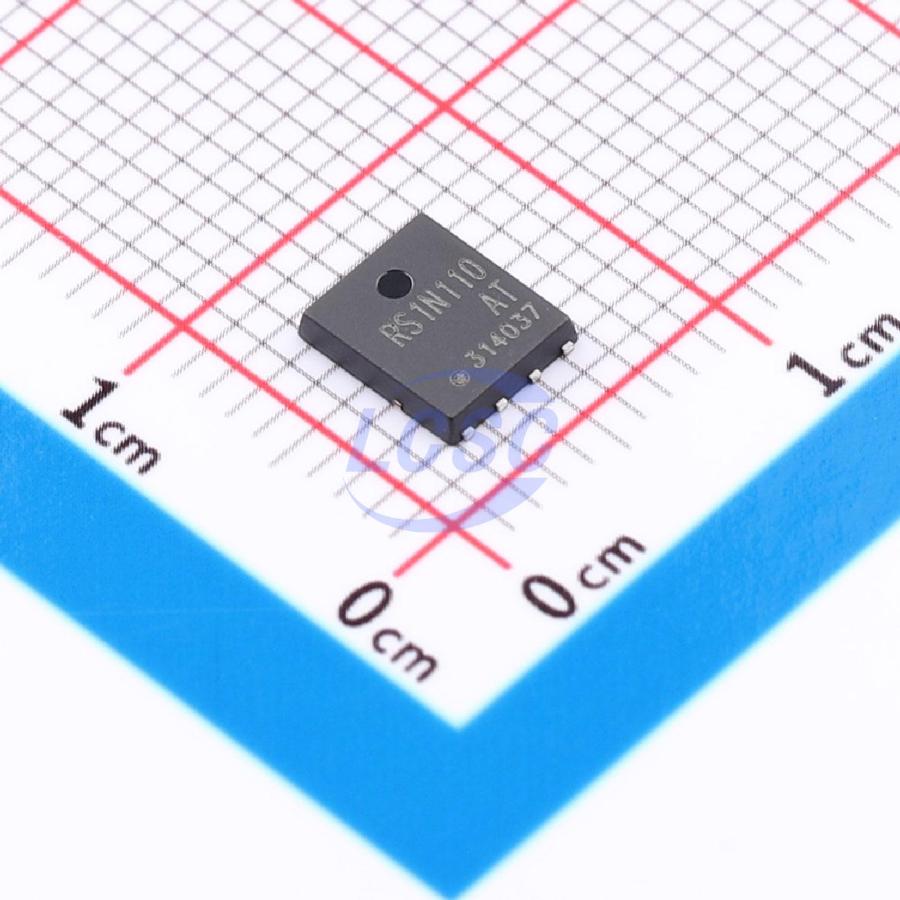

RS1N110ATTB1
40W 80V 43A 16.3mΩ@10V 1 N-channel N-Channel HSOP-8 Single FETs, MOSFETs RoHS
HSOP-8ROHS CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RS1N110ATTB1
- Store part #
- C27924821
- Package / case
- HSOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C27924821
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹210.75 | ₹210.75 |
| 10+ | ₹205.54 | ₹2,055.40 |
| 30+ | ₹201.84 | ₹6,055.20 |
| 100+ | ₹198.37 | ₹19,837.00 |
1 × ₹210.75
₹210.75
excl. GST
₹248.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RS1N110ATTB1
₹210.75 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 310pF
- Ciss-Input Capacitance
- 5.8nF
- Pd - Power Dissipation
- 40W
- Configuration
- Standalone
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 43A
- Reverse Transfer Capacitance (Crss)
- 255pF
- RDS(on)
- 16.3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 135nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.624 g
Overview
Applications
- Switches
- Motor drives
Key features
- Low on-resistance
- High-power package (HSOP8)
- Lead-free plating; RoHS compliant
- Halogen-free
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJAC70SN15#C5369043JSCJ · PDFNWB5x6-8L | JSCJ | PDFNWB5x6-8L | 211 | ₹151.62 · 211 in stock | View |
 | HYG180N10LS1C2#C5121300HUAYI · PDFN-8(5x6) | HUAYI | PDFN-8(5x6) | 5,685 | ₹37.72 · 5,685 in stock | View |
 | APG038N01G#C5443671ALLPOWER · PDFN5x6-8 | ALLPOWER | PDFN5x6-8 | 2,789 | ₹132.83 · 2,789 in stock | View |
 | WSD100N15DN56G#C5444517Winsok Semicon · DFN5X6-8L | Winsok Semicon | DFN5X6-8L | 4,684 | ₹187.24 · 4,684 in stock | View |
| BSC070N10SD(KTP)#C54430196KTP · PDFN(5x6) | KTP | PDFN(5x6) | 4,475 | ₹38.57 · 4,475 in stock | View | |
