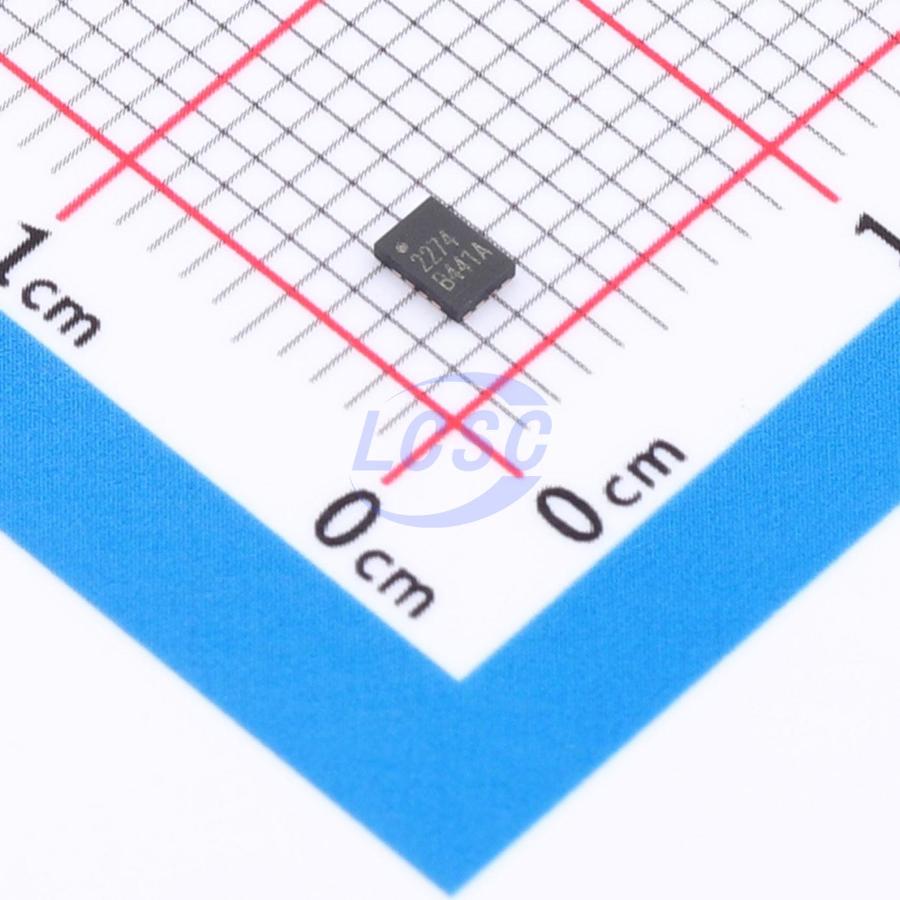

RUNIC

RS2274XTQQ16

2.5V~4.4V 550MHz 9Ω 2 4:1 USB, UART UQFN-16(1.8x2.6) Analog Switches - Special Purpose

UQFN-16(1.8x2.6)RoHSActive

Manufacturer: RUNIC
Manufacturer part #: RS2274XTQQ16
Store part #: C50202011
Package / case: UQFN-16(1.8x2.6)
Category: Analog Switches - Special Purpose
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C50202011

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹69.72	₹69.72
10+	₹54.31	₹543.10
30+	₹47.79	₹1,433.70
100+	₹39.53	₹3,953.00
500+	₹37.36	₹18,680.00
1,000+	₹35.19	₹35,190.00

Quantity (min 1)

1 × ₹69.72

₹69.72

excl. GST

₹82.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS2274XTQQ16

₹69.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Turn-on time: 200us
Turn-off time: 92ns
Voltage - Supply: 2.5V~4.4V
-3dB Bandwidth: 550MHz
Ron: 9Ω
Number of Channels: 2
Switch Circuit: 4:1
Propagation Delay (tpd): 350ps
Operating Temperature: -40℃~+125℃
Applications: USB, UART
Features: Bidirectional analog channel
Con: 11.5pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1 g

Overview

RS2274 is a bidirectional, low-power, high-speed USB 2.0 switch consisting of two 4:1 multiplexers. The device features ultra-low on-resistance, allowing inputs to connect to outputs without adding propagation delay. It is optimized for switching four high-speed (480Mbps) sources, or any combination of high-speed and full-speed/low-speed USB/UART sources, to a single USB 2.0 connector. The RS2274 is available in a green UQFN2.6X1.8-16 package and operates over an ambient temperature range of -40°C to 125°C.
