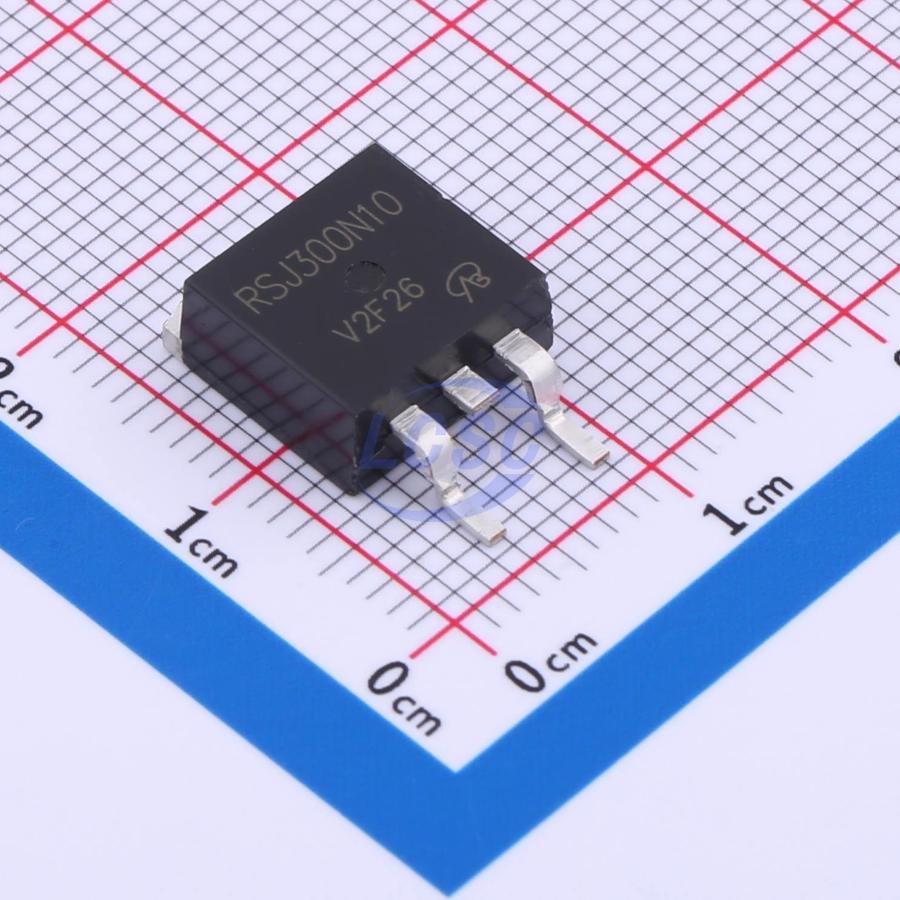

RSJ300N10TL-VB
N-Channel 100V 45A 127W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 100V 45A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RSJ300N10TL-VB
- Store part #
- C5137450
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C5137450
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹116.37 | ₹116.37 |
| 10+ | ₹93.42 | ₹934.20 |
| 50+ | ₹78.85 | ₹3,942.50 |
| 100+ | ₹67.47 | ₹6,747.00 |
| 500+ | ₹60.69 | ₹30,345.00 |
| 800+ | ₹57.29 | ₹45,832.00 |
1 × ₹116.37
₹116.37
excl. GST
₹137.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RSJ300N10TL-VB
₹116.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 410pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 3.1nF
- Pd - Power Dissipation
- 127W
- Reverse Transfer Capacitance (Crss)
- 150pF
- RDS(on)
- 30mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.26 g
Overview
Applications
- Laptop CPU core - high-end switching
Key features
- Trench power MOSFET
- 175°C junction temperature
- Low thermal resistance package
- RoHS compliant
