ROHMDatasheet (PDF)

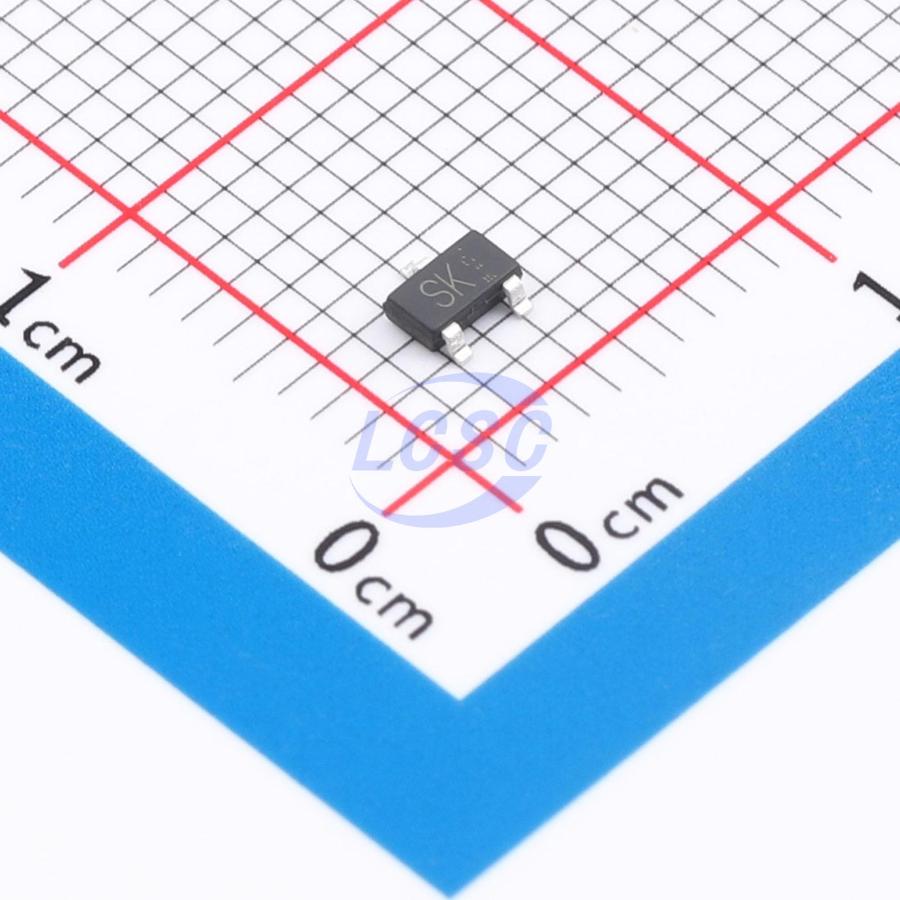

RSR015P06HZGTL
60V 1.5A 1W 340mΩ@4.5V 1 P-Channel TSMT-3 Single FETs, MOSFETs RoHS
TSMT-3ROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RSR015P06HZGTL
- Store part #
- C3291331
- Package / case
- TSMT-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
295 in stock
#C3291331
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.93 | ₹80.93 |
| 10+ | ₹78.76 | ₹787.60 |
| 30+ | ₹77.46 | ₹2,323.80 |
| 100+ | ₹76.15 | ₹7,615.00 |
1 × ₹80.93
₹80.93
excl. GST
₹95.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RSR015P06HZGTL
₹80.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 70pF
- Current - Continuous Drain(Id)
- 1.5A
- Ciss-Input Capacitance
- 500pF
- Pd - Power Dissipation
- 1W
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 340mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.037 g
Overview
These N-channel enhancement mode power MOSFETs are manufactured using Fairchild Semiconductor's proprietary planar stripe DMOS technology. This advanced technology is specifically designed to minimize on-resistance, deliver superior switching performance, and withstand high-energy pulses in avalanche and commutation modes. These devices are ideal for use in high-efficiency switch-mode power supplies.
Applications
- Switching applications
Key features
- Low on-resistance
- High power, small footprint package (TSMT3)
- Lead-free terminal plating; RoHS compliant
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RQ5L015SPTL#C509993ROHM · SOT-346 | ROHM | SOT-346 | 19,035 | ₹22.03 · 19,035 in stock | View |
 | SI2309BDS#C41431769TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 1,490 | ₹8.84 · 1,490 in stock | View |
 | CMN2309M#C5203747Cmos · SOT-23-3L | Cmos | SOT-23-3L | 2,850 | ₹14.34 · 2,850 in stock | View |
 | SP60P140T2#C41354820Siliup · SOT-23 | Siliup | SOT-23 | 840 | ₹4.64 · 840 in stock | View |
 | SSM3J356R,LF#C3034012TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 25,000 | ₹16.79 · 25,000 in stock | View |
