ROHMDatasheet (PDF)

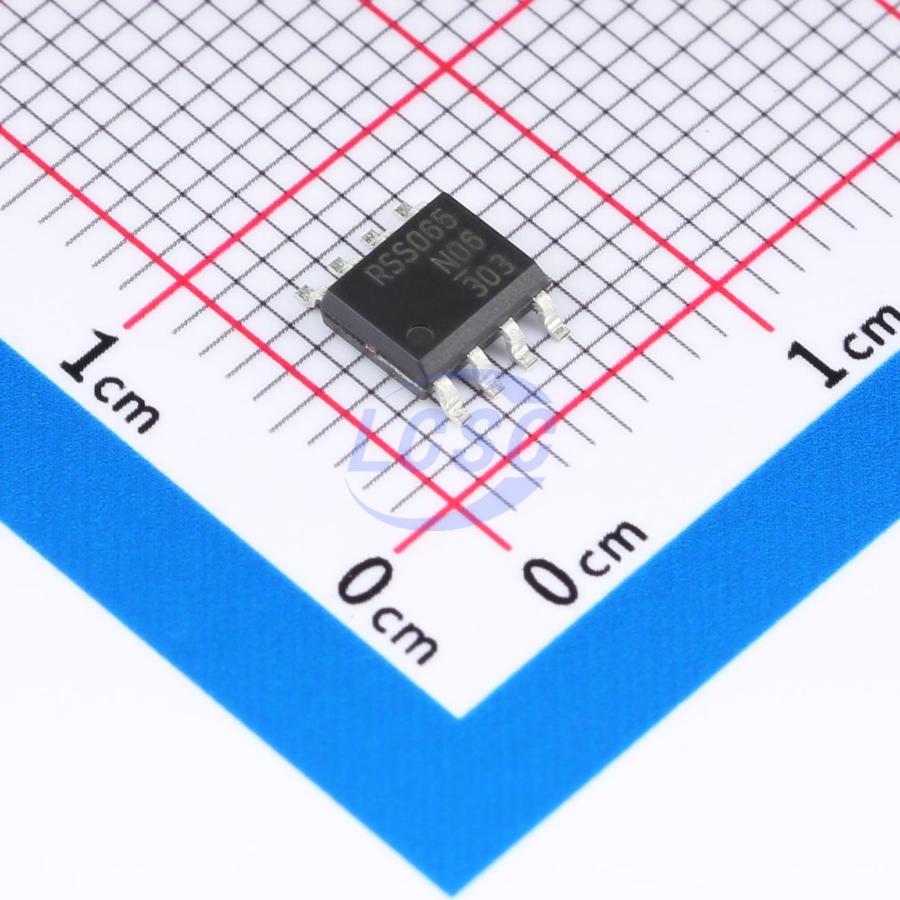

RSS065N06HZGTB
60V 6.5A 2W 37mΩ@10V 1 N-channel N-Channel SOP-8 Single FETs, MOSFETs RoHS
SOP-8ROHS3 CompliantActive
N-Channel, Current:6.5A, Voltage:60V
- Manufacturer
- ROHM
- Manufacturer part #
- RSS065N06HZGTB
- Store part #
- C3289867
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
83 in stock
#C3289867
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹158.63 | ₹158.63 |
| 10+ | ₹131.69 | ₹1,316.90 |
| 30+ | ₹116.91 | ₹3,507.30 |
| 100+ | ₹100.40 | ₹10,040.00 |
| 500+ | ₹93.01 | ₹46,505.00 |
| 1,000+ | ₹89.53 | ₹89,530.00 |
1 × ₹158.63
₹158.63
excl. GST
₹187.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RSS065N06HZGTB
₹158.63 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 6.5A
- Ciss-Input Capacitance
- 900pF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 100pF
- RDS(on)
- 37mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 16nC@5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.273 g
Overview
Applications
- Switching applications
Key features
- Low on-resistance
- Compact SMT package (SOP8)
- Lead-free pin plating; RoHS compliant
- Halogen-free
- 100% tin-plated
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBA1630#C416229VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹68.07 · 10 in stock | View |
 | AO4266#C5197350TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,850 | ₹39.76 · 2,850 in stock | View |
 | DMT6016LSS-13#C151586DIODES · SO-8 | DIODES | SO-8 | 2,518 | ₹101.80 · 2,518 in stock | View |
 | AP4846#C2903772ALLPOWER · SOP-8 | ALLPOWER | SOP-8 | 2,050 | ₹46.25 · 2,050 in stock | View |
 | DOS9N10#C46598092DOINGTER · SOP-8 | DOINGTER | SOP-8 | 495 | ₹18.81 · 495 in stock | View |
