JSMSEMIDatasheet (PDF)

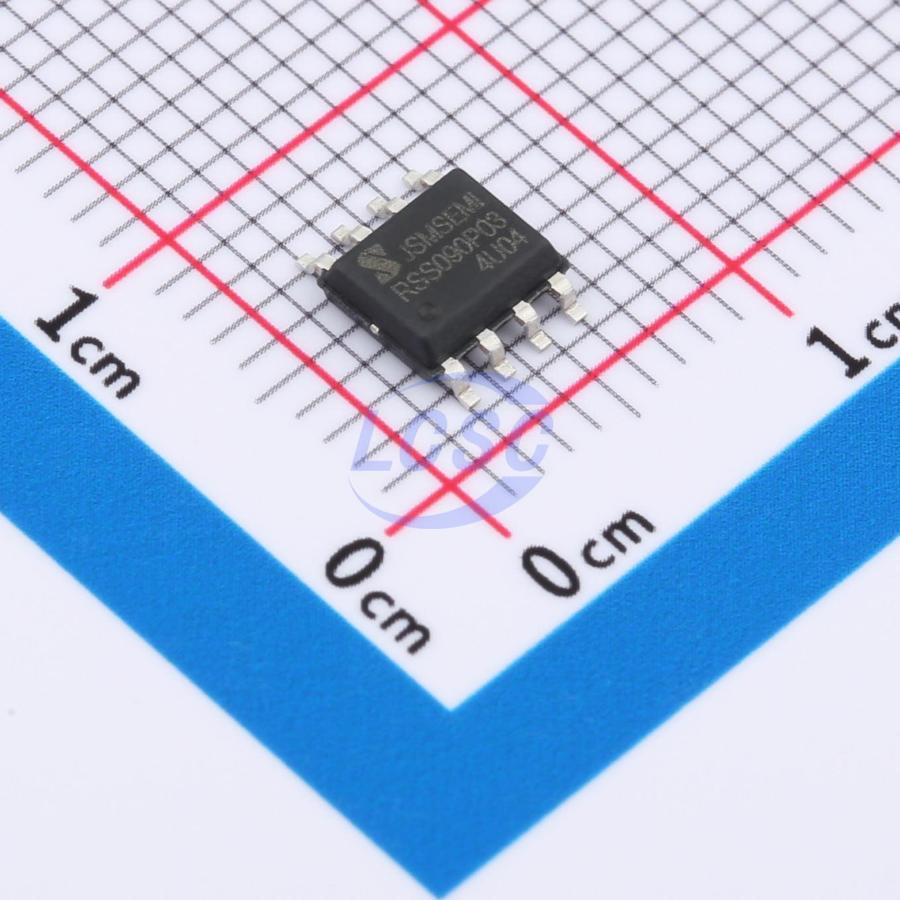

RSS090P03-JSM
P-Channel 30V 13A 2W Surface Mount SOP-8
SOP-8ROHS CompliantActive
MOSFET P-CH 30V 13A SOP-8
- Manufacturer
- JSMSEMI
- Manufacturer part #
- RSS090P03-JSM
- Store part #
- C18191266
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,425 in stock
#C18191266
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.30 | ₹131.50 |
| 50+ | ₹20.84 | ₹1,042.00 |
| 150+ | ₹18.50 | ₹2,775.00 |
| 500+ | ₹15.57 | ₹7,785.00 |
| 3,000+ | ₹14.26 | ₹42,780.00 |
| 6,000+ | ₹13.48 | ₹80,880.00 |
5 × ₹26.30
₹131.50
excl. GST
₹155.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RSS090P03-JSM
₹131.50 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 710pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 2.73nF
- Pd - Power Dissipation
- 2W
- Reverse Transfer Capacitance (Crss)
- 590pF
- RDS(on)
- 17mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 42nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.184 g
Overview
The RSS090P03 is the P-Channel logic enhancement mode power field effect transistor is produced using high cell density advanced trench technology. This high density process is especially tailored to minimize on-state resistance. This device is suitable for use as a load switch or in PVWM and gate charge for most of the synchronous buck converter applications
Applications
- High Frequency Point-of-Load Synchronous Buck Converter for MB/NB/UMPC/GA
- Newworking DC-DC Power System
- Load Switch
- Power Management in Note Book
Key features
- -30V/-13A, RDS(ON)=9mΩ (typ.) @v0s=-10v
- -30V/-7.0A, RDs(oN)<14.5mQ (typ.) @v0s=4.5V
- Super high design for extremely low RDS(ON)
- Exceptional on-resistance and Maximum DC current capability
- Full RoHS compliance
- SOP8 package design
