ROHMDatasheet (PDF)

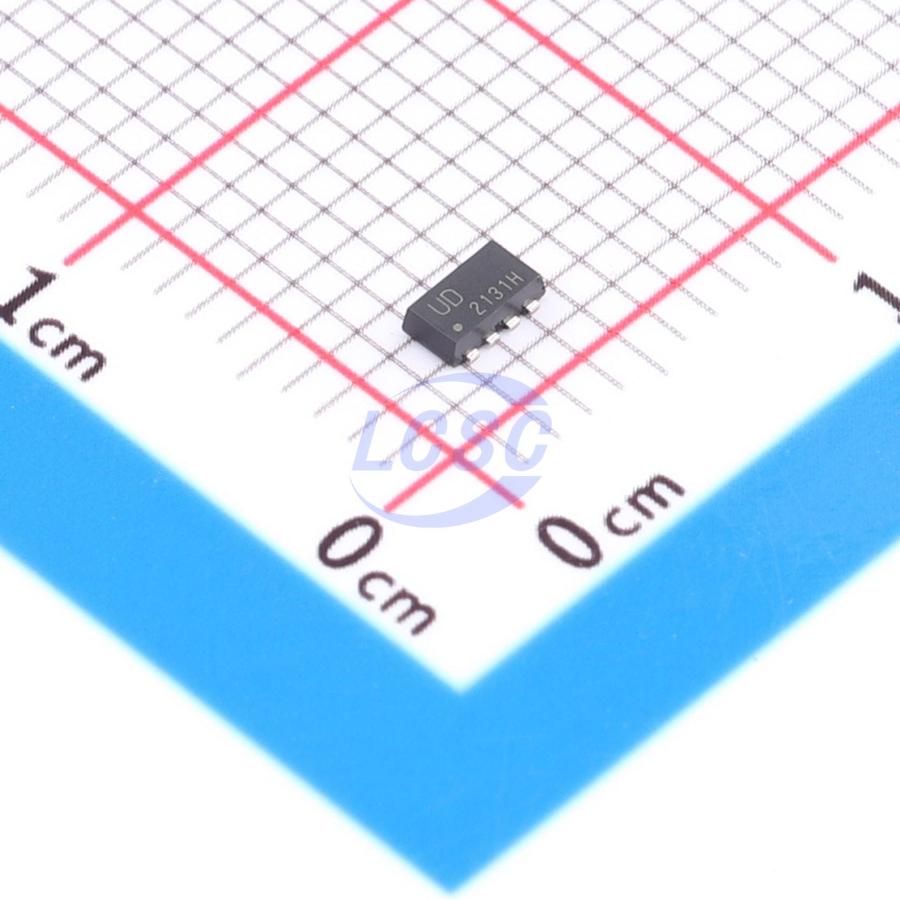

RT1E050RPTR
P-Channel TSST-8
TSST-8ROHS CompliantActive
MOSFET P-CH TSST-8
- Manufacturer
- ROHM
- Manufacturer part #
- RT1E050RPTR
- Store part #
- C6460997
- Package / case
- TSST-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C6460997
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.79 | ₹35.79 |
| 10+ | ₹34.91 | ₹349.10 |
| 30+ | ₹34.28 | ₹1,028.40 |
| 100+ | ₹33.63 | ₹3,363.00 |
1 × ₹35.79
₹35.79
excl. GST
₹42.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT1E050RPTR
₹35.79 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 5A
- Ciss-Input Capacitance
- 1.3nF
- Pd - Power Dissipation
- 1.25W
- Reverse Transfer Capacitance (Crss)
- 160pF
- RDS(on)
- 26mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
Applications
- Motor Drive - Power Tools - LED Lighting
Key features
- Cumulative pitch tolerance: The cumulative pitch tolerance of every 10 pitches of the mold for producing carrier tapes shall be within ±0.2mm.
- Minimum bending radius: The carrier tape shall have sufficient flexibility to protect the components without damage at a minimum radius of 30mm.
- Carrier tape material: Polystyrene coated with special carbon paint on both sides.
- Peel strength: 0.1N~1.0N (if the product is stored beyond the recommended storage conditions).
- Recommended storage conditions: Temperature 5°C - 40°C, humidity 30%RH - 80%RH.
- Recommended storage time: Five years after production.
