RICHTEK

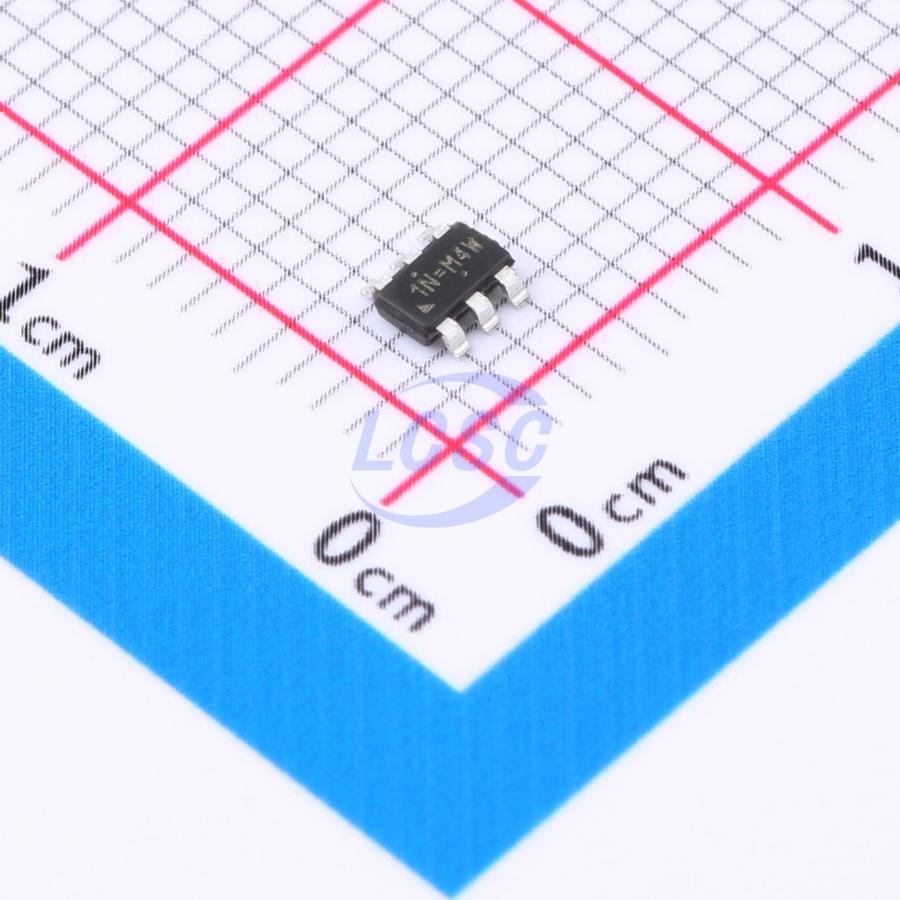

RT6222DHGJ6F

1.4MHz Step-down type Adjustable 2A 600mV~8V TSOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23-6ROHS3 CompliantActive

2A, 18V, 1.4MHz Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT6222DHGJ6F
Store part #: C3031682
Package / case: TSOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,955 in stock

#C3031682

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹38.99	₹194.95
50+	₹30.83	₹1,541.50
150+	₹27.32	₹4,098.00
500+	₹22.95	₹11,475.00
3,000+	₹21.01	₹63,030.00
6,000+	₹19.85	₹1,19,100.00

Quantity (min 5, multiples of 5)

5 × ₹38.99

₹194.95

excl. GST

₹230.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT6222DHGJ6F

₹194.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Frequency - Switching: 1.4MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.3V~18V
Switch tube (built-in/external): Built-in
Output Current: 2A
Output Voltage: 600mV~8V
Quiescent Current: 500uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.052 g

Overview

The RT6222C/D is a synchronous step-down converter with Advanced Constant On-Time (ACOTTM) control mode. The ACOTTM provides a very fast transient response with few external components. The low impedance internal MOSFET supports high efficiency operation with wide input voltage range from 4.3V to 18V. The proprietary circuit of the RT6222C/D enables to support all ceramic capacitors. The output voltage can be adjusted between 0.6V and 8V.

Applications

Industrial and Commercial Low Power Systems
Computer Peripherals
LCD Monitors and TVs
Green Electronics/Appliances
Point of Load Regulation for High-Performance DSPs, FPGAs, and ASICs

Key features

4.3V to 18V Input Voltage Range
2A Output Current
Advanced Constant On-Time Control
Fast Transient Response
Support All Ceramic Capacitors
1.4MHz Switching Frequency
Adjustable Output Voltage from 0.6V to 8V
Cycle-by-Cycle Current Limit
Input Under-Voltage Lockout
Hiccup Mode Under-Voltage Protection
Thermal Shutdown
Power Saving Mode for High Efficiency at Light Load
Low Output Voltage Ripple at Light Load
High Side Over Current Limit
RoHS Compliant and Halogen Free

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
RT7294CGJ6F#C147961RICHTEK · TSOT-23-6	RICHTEK	TSOT-23-6	145	₹24.40 · 145 in stock	View
RT7294AGJ6F#C3034214RICHTEK · TSOT-23-6	RICHTEK	TSOT-23-6	13	₹41.03 · 13 in stock	View
RT7295AGJ6F#C130800RICHTEK · SOT-23-6	RICHTEK	SOT-23-6	766	₹56.28 · 766 in stock	View
RT7295CGJ6F#C250410RICHTEK · TSOT-23-6	RICHTEK	TSOT-23-6	4,502	₹57.19 · 4,502 in stock	View
FR9850FS6#C42411199FITIPOWER · SOT-23-6	FITIPOWER	SOT-23-6	1,005	₹14.96 · 1,005 in stock	View
