RICHTEKDatasheet (PDF)

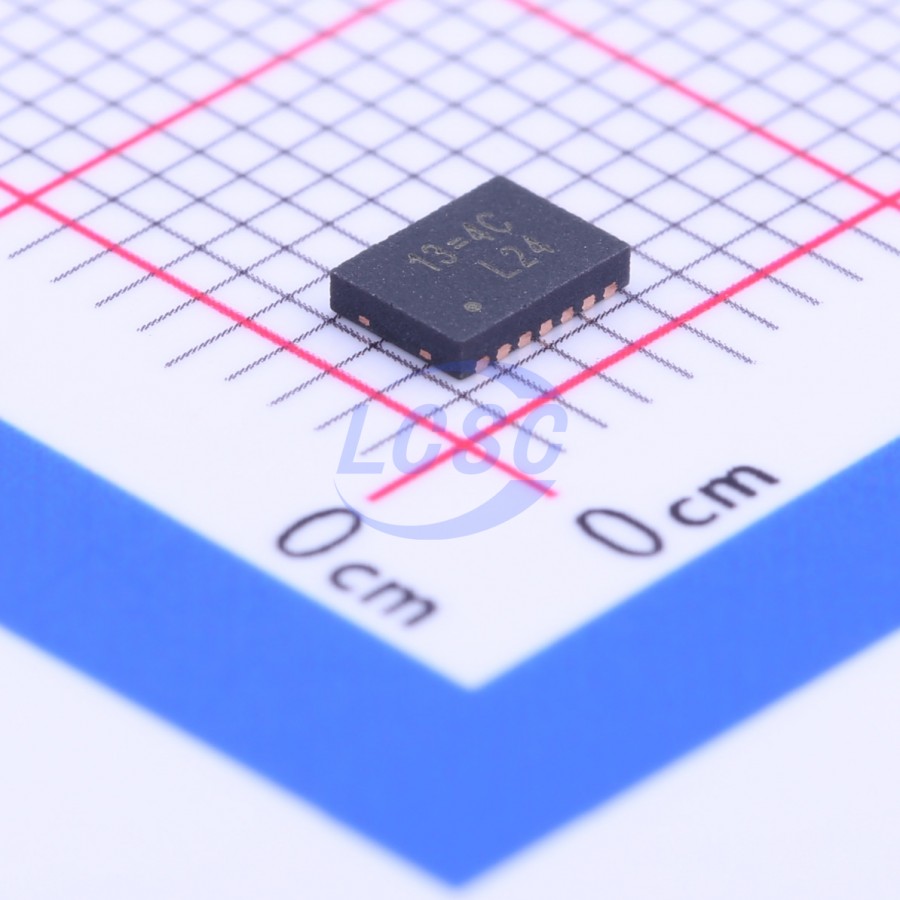

RT7258GQW
600kHz Step-down type Adjustable 808mV~15V 8A DFN-14(3x4) Voltage Regulators - DC DC Switching Regulators RoHS
DFN-14(3x4)ROHS3 CompliantActive
8A Synchronous Step-Down DC/DC Converter
- Manufacturer
- RICHTEK
- Manufacturer part #
- RT7258GQW
- Store part #
- C147980
- Package / case
- DFN-14(3x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C147980
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.30 | ₹153.30 |
| 10+ | ₹127.50 | ₹1,275.00 |
| 30+ | ₹113.39 | ₹3,401.70 |
| 100+ | ₹97.36 | ₹9,736.00 |
| 500+ | ₹90.20 | ₹45,100.00 |
| 1,500+ | ₹86.95 | ₹1,30,425.00 |
1 × ₹153.30
₹153.30
excl. GST
₹180.89 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RT7258GQW
₹153.30 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 600kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~24V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 808mV~15V
- Output Current
- 8A
- Quiescent Current
- 900uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The RT7258 is a synchronous step-down DC/DC converter with an integrated high side internal power MOSFET and a gate driver for a low side external power MOSFET. It can deliver up to 8A output current from a 4.5V to 24V input supply. The RT7258's current mode architecture allows the transient response to be optimized over a wider input voltage and load range. Cycle-by-cycle current limit provides protection against shorted outputs and soft-start eliminates input current surge during start-up. The RT7258 is synchronizable to an external clock with frequency ranging from 300kHz to 1.5MHz. The RT7258 is available in WDFN-14L 4x3 and SOP-8 (Exposed Pad) packages.
Applications
- Point of Load Regulator in Distributed Power System
- Digital Set top Boxes
- Personal Digital Recorders
- Broadband Communications
- Flat Panel TVs and Monitors
Key features
- 4.5V to 24V Input Voltage Range
- 8A Output Current
- 45mΩ Internal High Side N-MOSFET
- Current Mode Control
- 600kHz Switching Frequency
- Adjustable Output from 0.808V to 15V
- Up to 95% Efficiency
- Internal Compensation
- Stable with Ceramic Capacitors
- Synchronous External Clock: 300kHz to 1.5MHz
- Cycle-by-Cycle Current Limit
- Input Under Voltage Lockout
- Output Under Voltage Protection
- Power Good Indicator
- Thermal Shutdown Protection
- RoHS Compliant and Halogen Free
