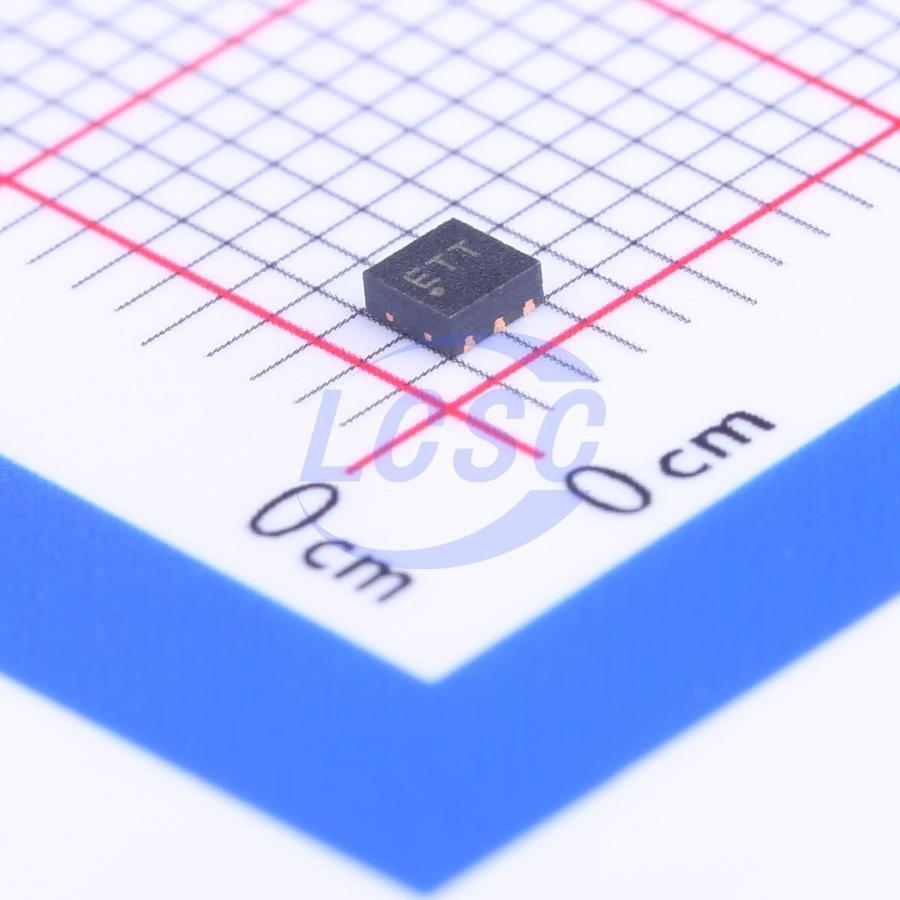

1.5MHz, 1A, High Efficiency PWM Step-Down DC/DC Converter

Manufacturer: RICHTEK
Manufacturer part #: RT8010GQW
Store part #: C130803
Package / case: WDFN-6-EP(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,375 in stock

#C130803

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹45.56	₹227.80
50+	₹37.34	₹1,867.00
150+	₹33.80	₹5,070.00
500+	₹29.40	₹14,700.00
2,500+	₹18.51	₹46,275.00
5,000+	₹17.33	₹86,650.00

Quantity (min 5, multiples of 5)

5 × ₹45.56

₹227.80

excl. GST

₹268.80 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

RT8010GQW

₹227.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1.5MHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~5.3V
Output Current: 1A
Quiescent Current: 50uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The RT8010/A is a high efficiency Pulse-Width-Modulated (PWM) step-down DC/DC converter. Capable of delivering 1A output current over a wide input voltage range from 2.5V to 5.5V, the RT8010/A is ideally suited for portable electronic devices that are powered from 1-cell Li-ion battery or from other power sources such as cellular phones, PDAs and hand-held devices. Two operating modes are available including : PWM/LowDropout autoswitch and shutdown modes. The Internal synchronous rectifier with low RDS(ON) dramatically reduces conduction loss at PWM mode. No external Schottky diode is required in practical application. The RT8010/A enters Low Dropout mode when normal PWM cannot provide regulated output voltage by continuously turning on the upper P-MOSFET. RT8010/A enter shut-down mode and consumes less than 0.1μA when EN pin is pulled low. The switching ripple is easily smoothed-out by small package filtering elements due to a fixed operating frequency of 1.5MHz. This along with small WDFN-6L 2x2 and WQFN-16L 3x3 package provides small PCB area application. Other features include soft start, lower internal reference voltage with 2% accuracy, over temperature protection, and over current protection.

Applications

Mobile Phones
Personal Information Appliances
Wireless and DSL Modems
MP3 Players
Portable Instruments

Key features

2.5V to 5.5V Input Range
Output Voltage (Adjustable Output From 0.6V to VIN)
RT8010: 1V, 1.2V, 1.5V, 1.6V, 1.8V, 2.5V and 3.3V Fixed/Adjustable Output Voltage
RT8010A Adjustable Output Voltage Only
1A Output Current
±95% Efficiency
No Schottky Diode Required
1.5MHz Fixed-Frequency PWM Operation
Small 6-Lead WDFN and 16-Lead WQFN Package
RoHS Compliant and 100% Lead (Pb)-Free
