RICHTEK

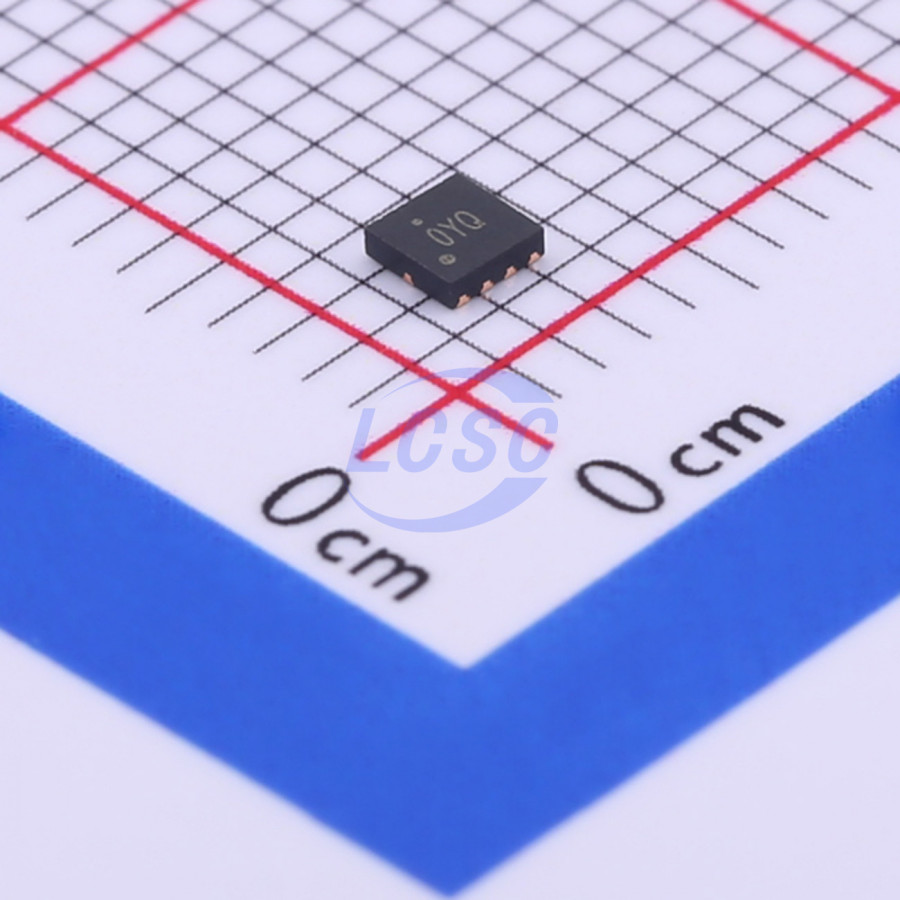

RT8086BGQUF

1.2MHz Step-down type Adjustable 600mV~3.3V 3.5A UQFN-12L(2x2) Voltage Regulators - DC DC Switching Regulators RoHS

UQFN-12L(2x2)ROHS3 CompliantActive

3.5A, 1.2MHz, Synchronous Step-Down Converter

Manufacturer: RICHTEK
Manufacturer part #: RT8086BGQUF
Store part #: C250417
Package / case: UQFN-12L(2x2)
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,439 in stock

#C250417

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹68.72	₹68.72
10+	₹55.10	₹551.00
30+	₹49.27	₹1,478.10
100+	₹42.14	₹4,214.00
500+	₹38.90	₹19,450.00
1,000+	₹36.95	₹36,950.00

Quantity (min 1)

1 × ₹68.72

₹68.72

excl. GST

₹81.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

RT8086BGQUF

₹68.72 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 1.2MHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Hiccup current limiting;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.8V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 600mV~3.3V
Output Current: 3.5A
Quiescent Current: 60uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.017 g

Overview

The RT8086B is a high efficiency, synchronous step-down DC/DC converter. The available input voltage range is from 2.8V to 5.5V and the regulated output voltage is adjustable from 0.6V to 3.3V while delivering up to 3.5A of output current. The internal synchronous low on-resistance power switches increase efficiency and eliminate the need for an external Schottky diode. The current mode constant on-time operation with internal compensation allows the transient response to be optimized over a wide range of loads and output capacitors. The RT8086B is available in the UQFN-12L 2x2 (FC) package.

Applications

Smart Handheld devices
Portable Instruments
Battery-Powered Equipment
Distributed Power Systems

Key features

High Efficiency Up to 95%
Low RDS(ON) Switches: 50mΩ/40mΩ
0.6V Reference Allows for Low Output Voltage
Internal Compensation
Input Voltage Range: 2.8V to 5.5V
Adjustable Output Voltage from 0.6V to 3.3V
1.2MHz Switching Frequency
Start-Up into Pre-Biased Load
Built in Soft-Start
Power Good Indication
Cycle-by-Cycle Current Limit
Input Under Voltage Lockout
Output Under Voltage Protection (Hiccup)
Thermal Shutdown Protection
RoHS Compliant and Halogen Free
