TECH PUBLIC

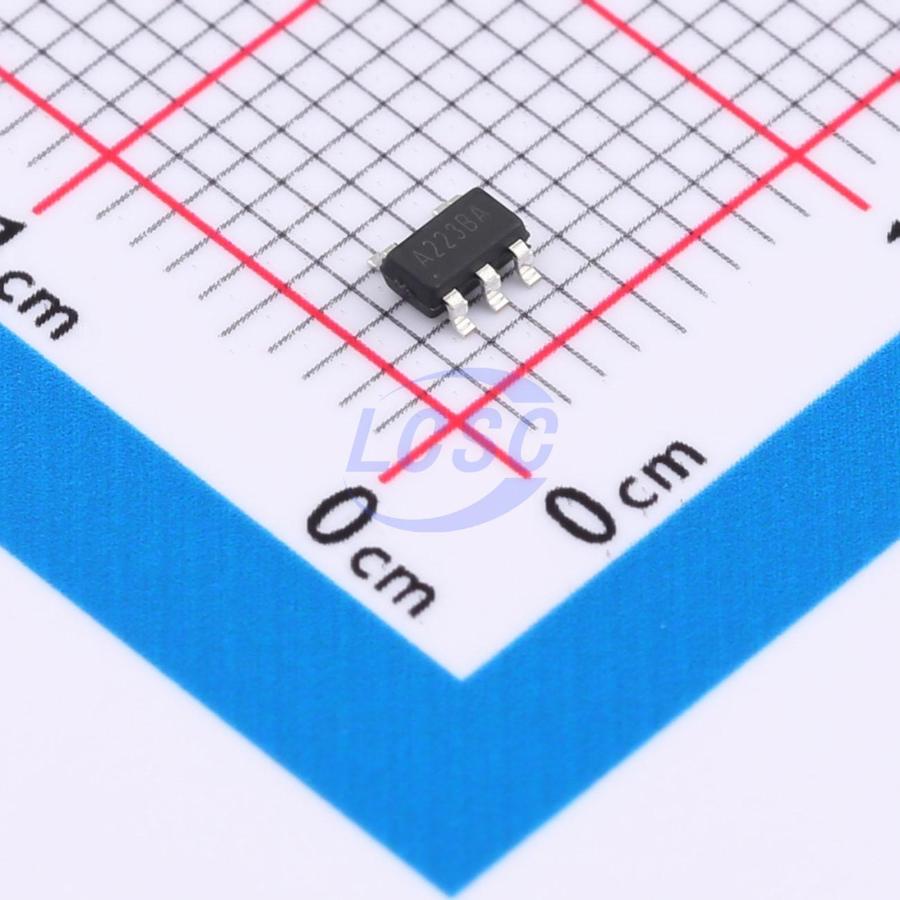

RT8097CHGB-TP

Step-down type 1MHz Adjustable 2A SOT-23-5 Voltage Regulators - DC DC Switching Regulators

SOT-23-5RoHSActive

High Efficiency 1MHz, 2A Synchronous Step Down Regulator

Manufacturer: TECH PUBLIC
Manufacturer part #: RT8097CHGB-TP
Store part #: C41348099
Package / case: SOT-23-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

235 in stock

#C41348099

Stock & price checked 13 days ago

Quantity	Unit price	Pack price
5+	₹14.90	₹74.50
50+	₹11.77	₹588.50
150+	₹10.20	₹1,530.00
500+	₹9.04	₹4,520.00
3,000+	₹8.10	₹24,300.00
6,000+	₹7.62	₹45,720.00

Quantity (min 5, multiples of 5)

5 × ₹14.90

₹74.50

excl. GST

₹87.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RT8097CHGB-TP

₹74.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 1MHz
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 2.5V~6V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 50uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.039 g

Overview

Because of the high integration in the IC, the application circuit based on this regulator IC is rather simple. Only input capacitor CIN, output capacitor COUT, output inductor L and feedback resistors (R1 and R2) need to be selected for the targeted applications specifications.
