RICHTEK

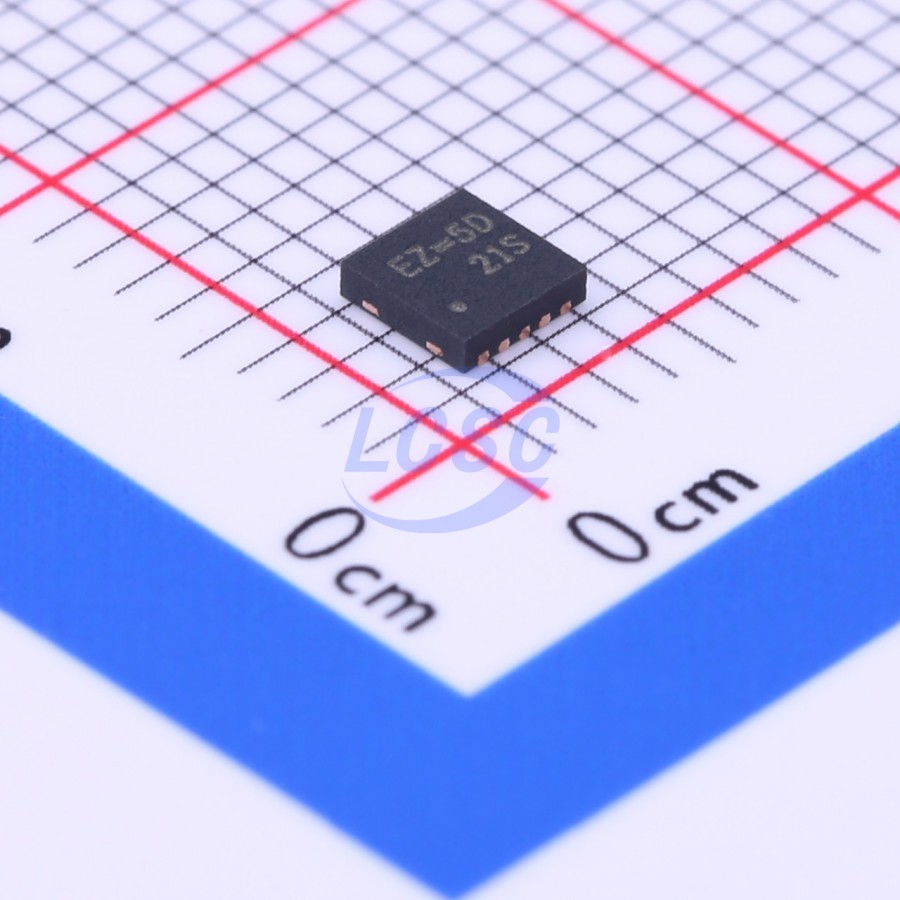

RT9297GQW

640kHz~1.2MHz Boost 3A Adjustable 2.6V~5.5V WDFN-10L-EP(3x3) Special Purpose Regulators RoHS

WDFN-10L-EP(3x3)ROHS3 CompliantActive

High Performance 3A Step-Up DC/DC Converter

Manufacturer: RICHTEK
Manufacturer part #: RT9297GQW
Store part #: C250541
Package / case: WDFN-10L-EP(3x3)
Category: Special Purpose Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,679 in stock

#C250541

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹109.52	₹109.52
10+	₹88.67	₹886.70
30+	₹78.23	₹2,346.90
100+	₹68.02	₹6,802.00
500+	₹61.93	₹30,965.00
1,500+	₹58.68	₹88,020.00

Quantity (min 1)

1 × ₹109.52

₹109.52

excl. GST

₹129.23 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

RT9297GQW

₹109.52 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Synchronous Rectifier: No
Features: Adjustable soft-start;External compensation;Overcurrent Protection
Frequency - Switching: 640kHz~1.2MHz
Function: Boost
Number of Outputs: 1
Output Voltage: 2.6V~24V
Output Current: 3A
Topology: Boost
Quiescent Current: 500uA
Switch tube (built-in/external): Built-in
Operating Temperature: -40℃~+125℃
Output Type: Adjustable
Voltage - Supply: 2.6V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.09 g

Overview

The RT9297 includes a high performance step-up DC/DC converter that provides a regulated supply voltage for activematrix thin-film transistor (TFT) liquid-crystal displays (LCDs). The Boost Converter incorporates current mode, fixedfrequency, pulse-width modulation (PWM) circuitry with a built-in N-Channel power MOSFET to achieve high efficiency and fast transient response. The RT9297 is available in a WDFN -10L 3x3 package.
