ROHMDatasheet (PDF)

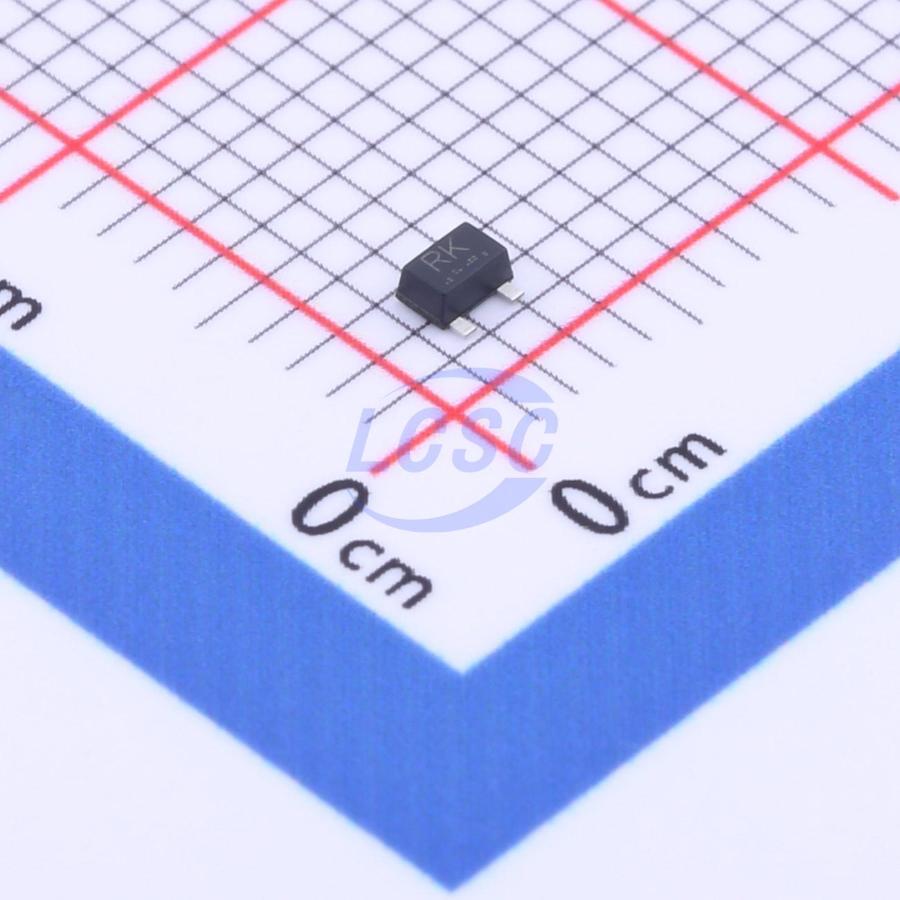

RU1L002SNTL
N-Channel 60V 250mA 200mW Surface Mount SOT-323
SOT-323ROHS3 CompliantActive
MOSFET N-CH 60V 250mA SOT-323
- Manufacturer
- ROHM
- Manufacturer part #
- RU1L002SNTL
- Store part #
- C962652
- Package / case
- SOT-323
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
70 in stock
#C962652
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.52 | ₹55.20 |
| 100+ | ₹4.42 | ₹442.00 |
| 300+ | ₹3.86 | ₹1,158.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 6,000+ | ₹2.69 | ₹16,140.00 |
| 9,000+ | ₹2.53 | ₹22,770.00 |
10 × ₹5.52
₹55.20
excl. GST
₹65.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RU1L002SNTL
₹55.20 for 10 + GST
Specifications
- Output Capacitance(Coss)
- 4.5pF
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 200mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 250mA
- Reverse Transfer Capacitance (Crss)
- 2pF
- RDS(on)
- 2.4Ω@10V
- Number
- 1 N-channel
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.023 g
Overview
- Split-gate trench MOSFET technology - Low RDS(on) and figure of merit (FOM) - Low Crss - Ultra-low switching losses - Excellent stability and consistency
Applications
- Switching
Key features
- Low on - Resistance, High Current
- Small Package (SOT - 323FL)
- Ultra Low voltage drive (2.5V drive)
- Pb - free lead plating ; RoHS compliant
- Halogen Free
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RSU002N06T106#C6288171ROHM · SC-70(SOT-323) | ROHM | SC-70(SOT-323) | 3,000 | ₹7.28 · 3,000 in stock | View | |
 | RU1L002SNMGTL#C2981762ROHM · SOT-323-3 | ROHM | SOT-323-3 | 100 | ₹4.55 · 100 in stock | View |
 | 2N7002W#C18212686TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 3,900 | ₹2.57 · 3,900 in stock | View |
 | RU1L002SN-TP#C51886148TECH PUBLIC · SOT-323 | TECH PUBLIC | SOT-323 | 2,750 | ₹2.55 · 2,750 in stock | View |
 | L2N7002KWT1G#C2912011LRC · SC-70 | LRC | SC-70 | 7,060 | ₹3.39 · 7,060 in stock | View |
