VBsemi ElecDatasheet (PDF)

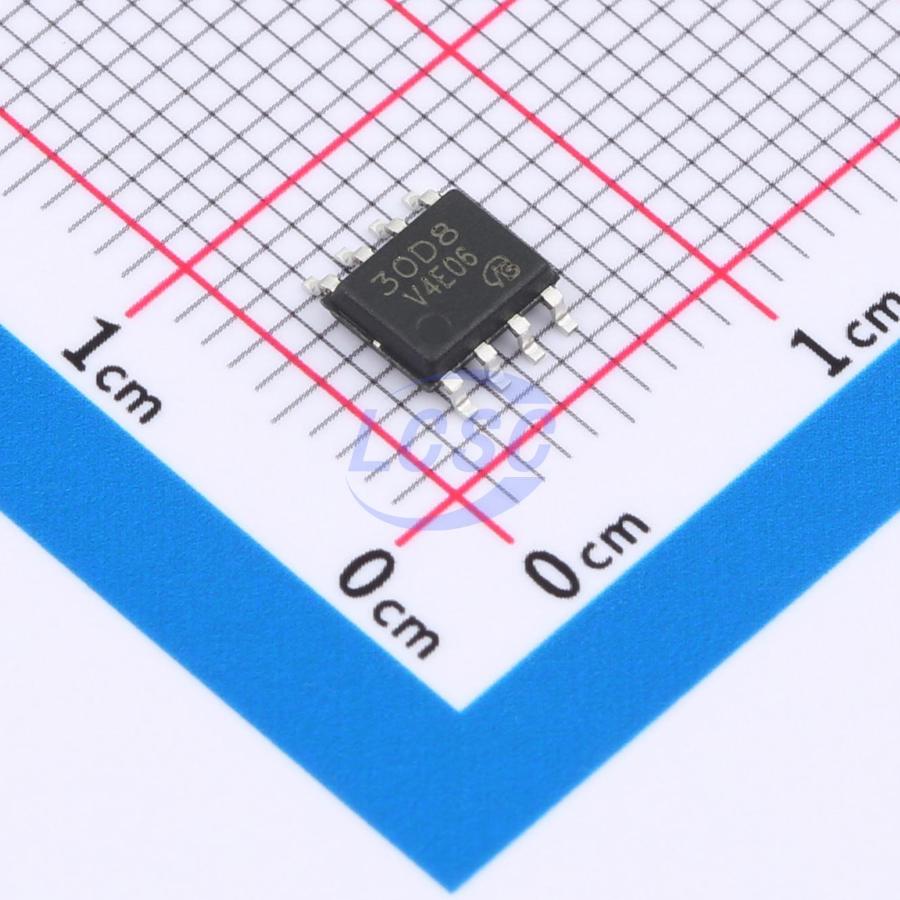

RU30D8HCGTR-VB
N-Channel 30V 8.5A 3.1W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 8.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU30D8HCGTR-VB
- Store part #
- C22389529
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C22389529
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.84 | ₹50.84 |
| 10+ | ₹39.91 | ₹399.10 |
| 30+ | ₹35.30 | ₹1,059.00 |
| 100+ | ₹29.41 | ₹2,941.00 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 1,000+ | ₹25.22 | ₹25,220.00 |
1 × ₹50.84
₹50.84
excl. GST
₹59.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RU30D8HCGTR-VB
₹50.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 140pF
- Current - Continuous Drain(Id)
- 8.5A
- Ciss-Input Capacitance
- 660pF
- Pd - Power Dissipation
- 3.1W
- Reverse Transfer Capacitance (Crss)
- 86pF
- RDS(on)
- 16mΩ@10V;20mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 14.5nC@10V;7.1nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V;2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.165 g
Overview
Applications
- Notebook System Power
- Low-Current DC/DC Converter
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant with directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 4214W-VB#C20417643VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹52.93 · 45 in stock | View |
 | STS8DNH3LL-VB#C20755604VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹52.93 · 45 in stock | View |
 | BSO4804HUMA2-VB#C51822622VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹57.48 · 10 in stock | View |
 | 150N03MD-VB#C19626773VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹52.93 · 50 in stock | View |
 | AO4842-VB#C19632051VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 45 | ₹52.93 · 45 in stock | View |
