VBsemi ElecDatasheet (PDF)

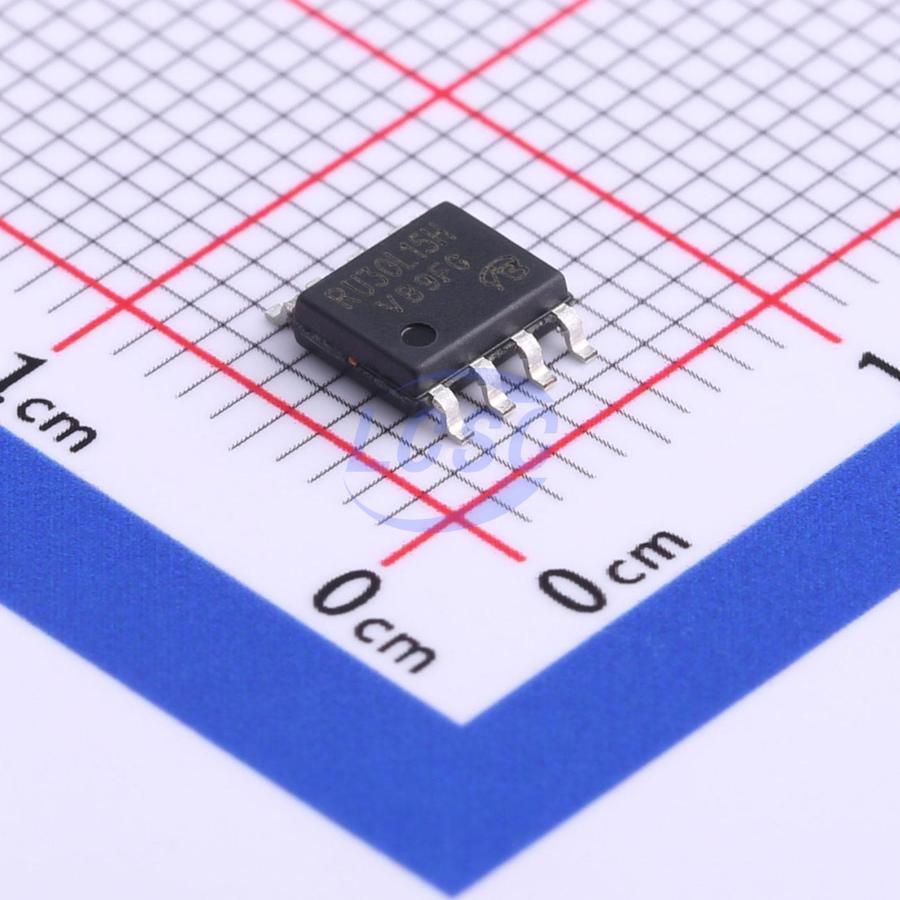

RU30L15H-VB
P-Channel 30V 8.7A 2.5W Surface Mount SO-8
SO-8RoHSActive
MOSFET P-CH 30V 8.7A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU30L15H-VB
- Store part #
- C693100
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C693100
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.97 | ₹62.97 |
| 10+ | ₹50.30 | ₹503.00 |
| 30+ | ₹44.70 | ₹1,341.00 |
| 100+ | ₹38.05 | ₹3,805.00 |
| 500+ | ₹33.54 | ₹16,770.00 |
| 1,000+ | ₹31.82 | ₹31,820.00 |
1 × ₹62.97
₹62.97
excl. GST
₹74.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RU30L15H-VB
₹62.97 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 380pF
- Current - Continuous Drain(Id)
- 8.7A
- Ciss-Input Capacitance
- 1.96nF
- Pd - Power Dissipation
- 2.5W
- Reverse Transfer Capacitance (Crss)
- 325pF
- RDS(on)
- 11mΩ@10V;12mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 22nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.187 g
Overview
Applications
- Load Switch - Laptop - Desktop Computer
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- 100% unclamped inductive switching (UIS) tested
- RoHS compliant
- Halogen-free available
