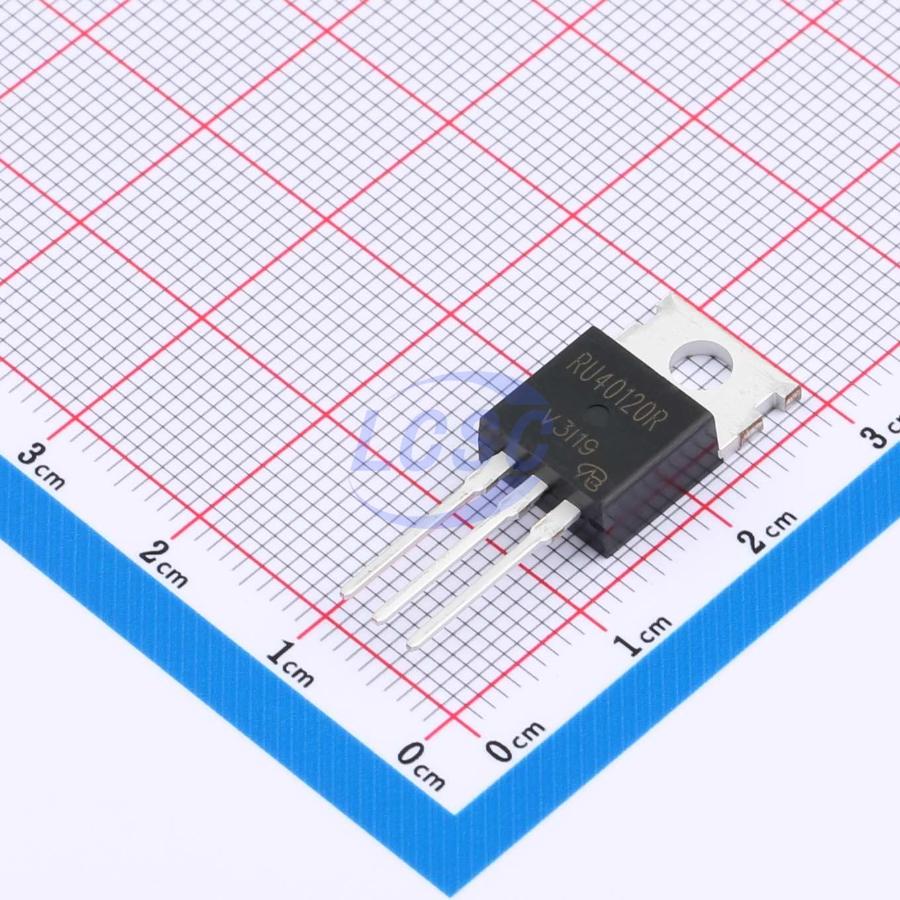

RU40120R-VB
N-Channel 40V 110A Through Hole TO-220AB
TO-220ABRoHSActive
MOSFET N-CH 40V 110A TO-220AB
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU40120R-VB
- Store part #
- C18212468
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C18212468
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹134.30 | ₹134.30 |
| 10+ | ₹112.14 | ₹1,121.40 |
| 50+ | ₹80.62 | ₹4,031.00 |
| 100+ | ₹69.54 | ₹6,954.00 |
| 500+ | ₹63.03 | ₹31,515.00 |
| 1,000+ | ₹59.55 | ₹59,550.00 |
1 × ₹134.30
₹134.30
excl. GST
₹158.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RU40120R-VB
₹134.30 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 750pF
- Current - Continuous Drain(Id)
- 110A
- Ciss-Input Capacitance
- 2.9nF
- Reverse Transfer Capacitance (Crss)
- 310pF
- RDS(on)
- 6mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 130nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.745 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
