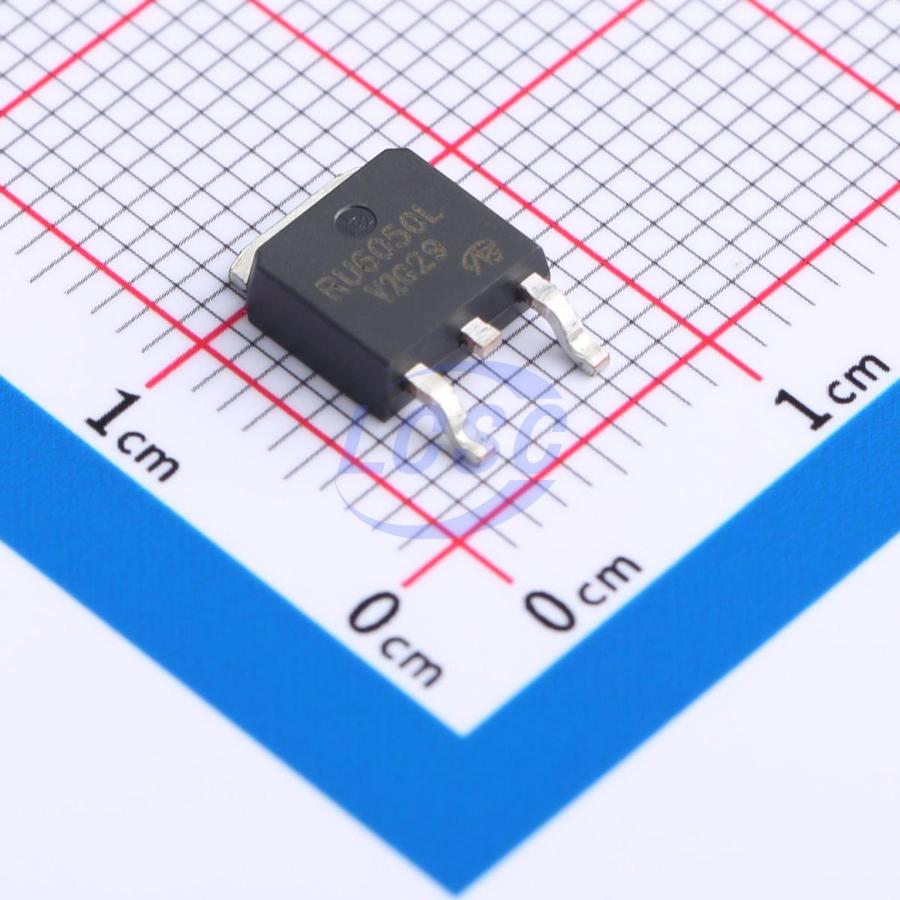

RU6050L-VB
N-Channel 60V 58A 136W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 60V 58A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU6050L-VB
- Store part #
- C5137449
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C5137449
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹87.81 | ₹87.81 |
| 10+ | ₹71.84 | ₹718.40 |
| 30+ | ₹63.86 | ₹1,915.80 |
| 100+ | ₹55.88 | ₹5,588.00 |
| 500+ | ₹48.95 | ₹24,475.00 |
| 1,000+ | ₹46.42 | ₹46,420.00 |
1 × ₹87.81
₹87.81
excl. GST
₹103.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RU6050L-VB
₹87.81 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 470pF
- Current - Continuous Drain(Id)
- 58A
- Ciss-Input Capacitance
- 2.65nF
- Pd - Power Dissipation
- 136W
- Reverse Transfer Capacitance (Crss)
- 225pF
- RDS(on)
- 10mΩ@10V;13mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Key features
- Junction temperature 175°C
- Trench power MOSFET
- Material classification: RoHS compliant
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AP9974GH-HF-VB#C18794925VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 44 | ₹94.05 · 44 in stock | View |
 | AULR2905Z-VB#C19632094VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 30 | ₹85.92 · 30 in stock | View |
 | IRFR48ZTRLPBF-VB#C20417450VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹86.92 · 20 in stock | View |
 | BUK7210-55B-VB#C20755627VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 29 | ₹82.32 · 29 in stock | View |
 | K30S06K3L-VB#C20755676VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹85.92 · 50 in stock | View |
