VBsemi ElecDatasheet (PDF)

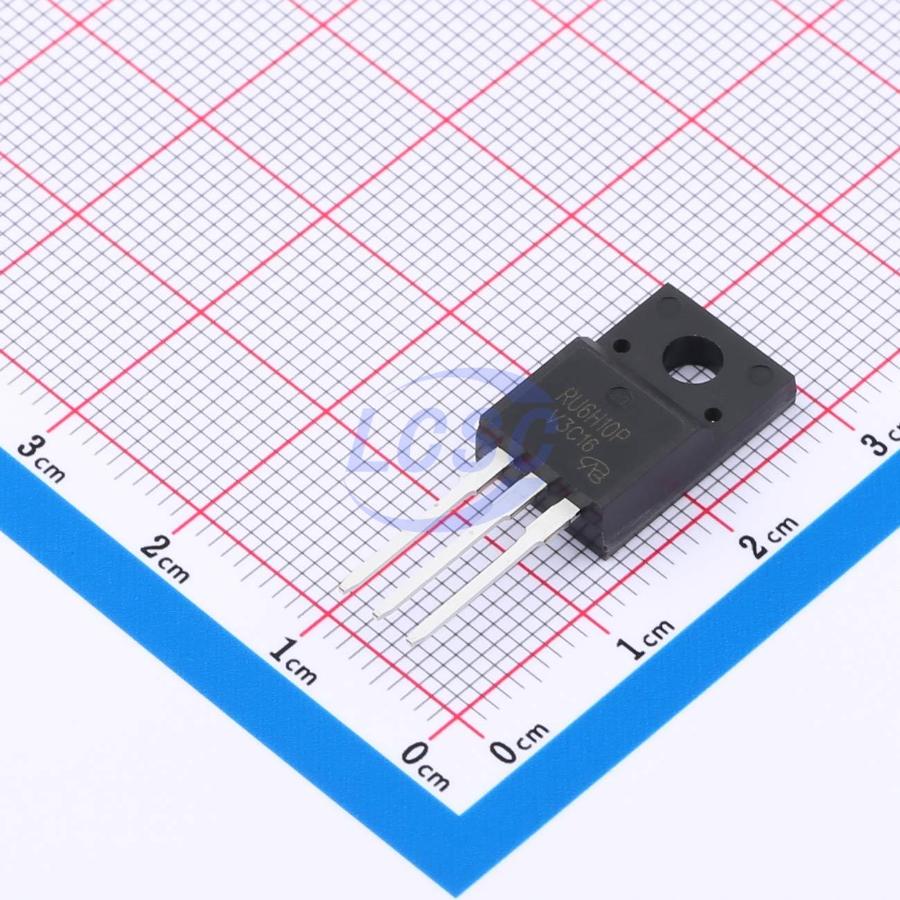

RU6H10P-VB
N-Channel 650V 12A Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 650V 12A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RU6H10P-VB
- Store part #
- C19632241
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C19632241
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.91 | ₹135.91 |
| 10+ | ₹112.39 | ₹1,123.90 |
| 50+ | ₹99.57 | ₹4,978.50 |
| 100+ | ₹84.87 | ₹8,487.00 |
| 500+ | ₹78.36 | ₹39,180.00 |
| 1,000+ | ₹75.41 | ₹75,410.00 |
1 × ₹135.91
₹135.91
excl. GST
₹160.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RU6H10P-VB
₹135.91 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 12A
- Ciss-Input Capacitance
- 1.6nF
- Reverse Transfer Capacitance (Crss)
- 200pF
- RDS(on)
- 650mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Gate Threshold Voltage (Vgs(th))
- 5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.95 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID) - Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) R_on×Q_g
- Low input capacitance (C_iss)
- Reduced switching and conduction losses
- Ultra low gate charge (Q_g)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 6R600E6 TO220F-VB#C19190253VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 9 | ₹141.79 · 9 in stock | View |
 | FK10KM-9-VB#C19626820VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 40 | ₹129.15 · 40 in stock | View |
 | TK11A65D-VB#C19632059VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 72 | ₹141.79 · 72 in stock | View |
 | TSF10N60M-VB#C19632263VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 20 | ₹135.91 · 20 in stock | View |
 | STP9NB50FP-VB#C20626344VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹135.91 · 6 in stock | View |
