MDD(Microdiode Semiconductor)
2N7002KN-Channel 60V 300mA 300mW Surface Mount SOT-23
From
₹2.32
25,99,250 in stock
ROHMDatasheet (PDF)

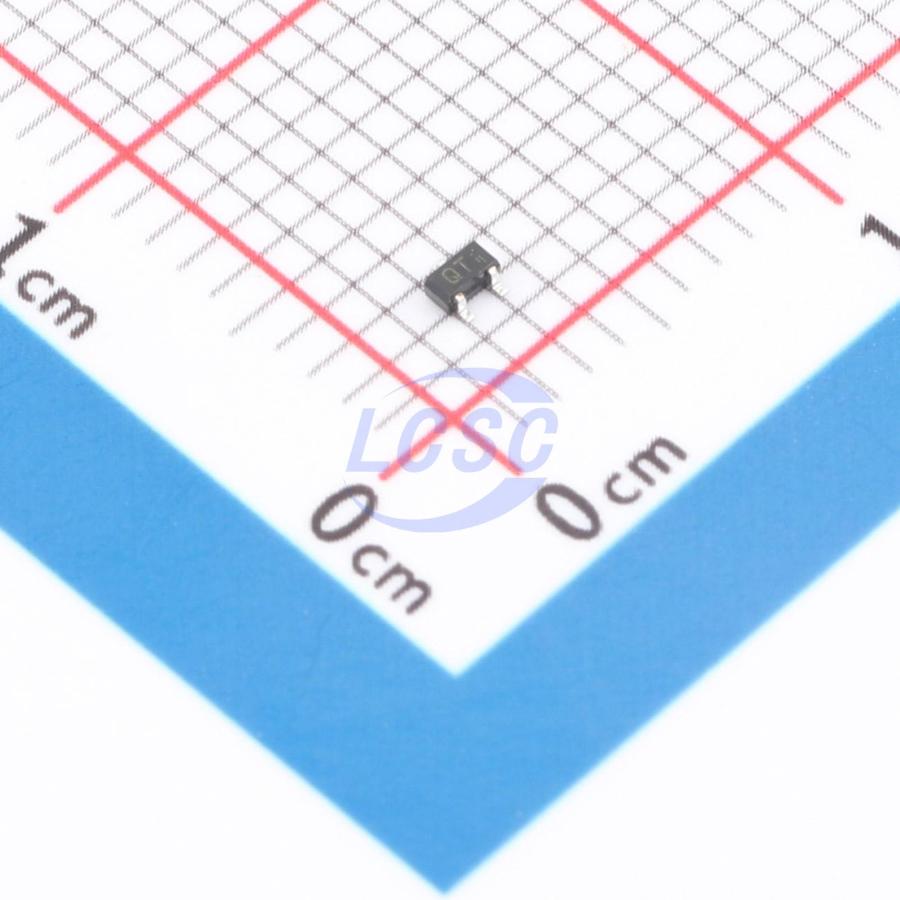

RUE003N02TL
N-Channel 20V 300mA 150mW Surface Mount SC-75(SOT-416)
SC-75(SOT-416)ROHS3 CompliantActive
MOSFET N-CH 20V 300mA SC-75(SOT-416)
- Manufacturer
- ROHM
- Manufacturer part #
- RUE003N02TL
- Store part #
- C5880020
- Package / case
- SC-75(SOT-416)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C5880020
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.11 | ₹68.11 |
| 10+ | ₹52.80 | ₹528.00 |
| 30+ | ₹46.34 | ₹1,390.20 |
| 100+ | ₹38.16 | ₹3,816.00 |
| 500+ | ₹34.49 | ₹17,245.00 |
| 1,000+ | ₹32.33 | ₹32,330.00 |
1 × ₹68.11
₹68.11
excl. GST
₹80.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RUE003N02TL
₹68.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 300mA
- Ciss-Input Capacitance
- 25pF
- Pd - Power Dissipation
- 150mW
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 700mΩ@4V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
Applications
- Switching
Key features
- Low on-resistance.
- Fast switching speed.
- Low voltage drive (1.8V) makes this device ideal for portable equipment.
- Drive circuits can be simple.
- Parallel use is easy.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPM1012ER3#C2830303TECH PUBLIC · SOT-523 | TECH PUBLIC | SOT-523 | 4,165 | ₹13.23 · 4,165 in stock | View |
| SSM3K36FS,LF#C5908555TOSHIBA · SC-75(SOT-416) | TOSHIBA | SC-75(SOT-416) | 25 | ₹15.78 · 25 in stock | View | |
 | DMG1012T-7#C7473321KUU · SOT-523 | KUU | SOT-523 | 6,700 | ₹3.72 · 6,700 in stock | View |
 | SL2302T#C22392335Slkor · SOT-523 | Slkor | SOT-523 | 2,780 | ₹4.26 · 2,780 in stock | View |
 | SI1012CR-T1-GE3#C388850VISHAY · SC-75A | VISHAY | SC-75A | 3,215 | ₹31.09 · 3,215 in stock | View |
