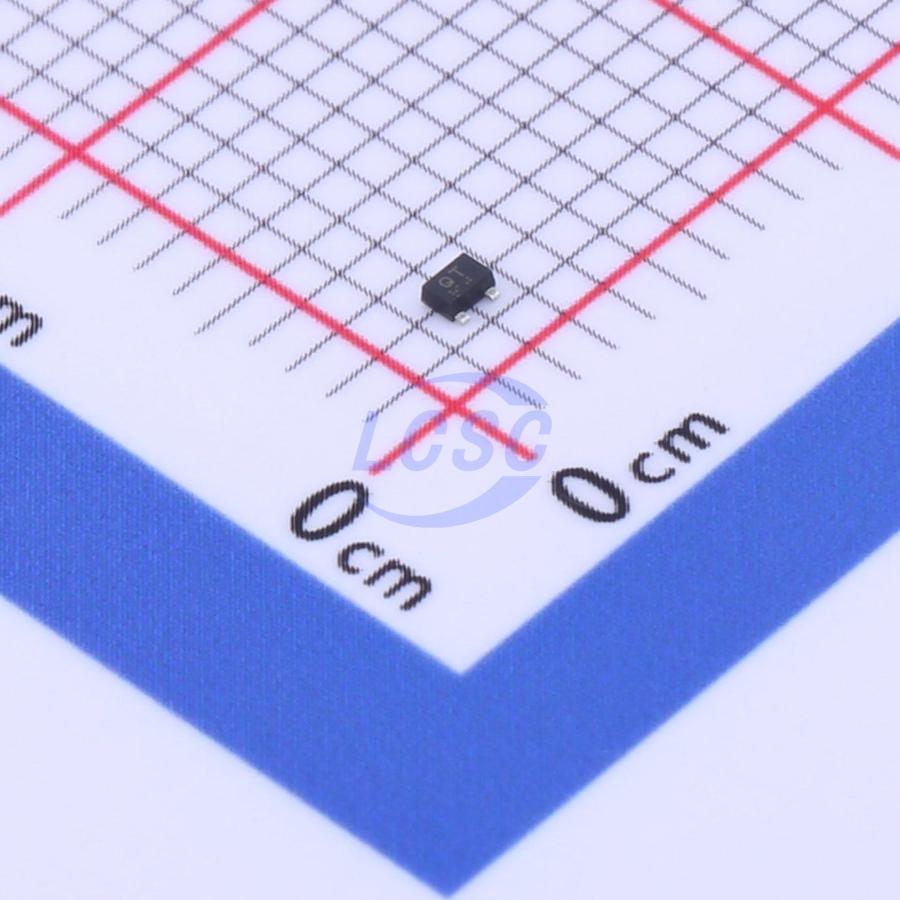

ROHMDatasheet (PDF)
RUM003N02T2L
N-Channel 20V 300mA 150mW Surface Mount SOT-723
SOT-723ROHS3 CompliantActive
MOSFET N-CH 20V 300mA SOT-723
- Manufacturer
- ROHM
- Manufacturer part #
- RUM003N02T2L
- Store part #
- C510348
- Package / case
- SOT-723
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
580 in stock
#C510348
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.94 | ₹54.70 |
| 50+ | ₹8.75 | ₹437.50 |
| 150+ | ₹7.66 | ₹1,149.00 |
| 500+ | ₹6.83 | ₹3,415.00 |
| 2,500+ | ₹6.18 | ₹15,450.00 |
| 5,000+ | ₹5.85 | ₹29,250.00 |
5 × ₹10.94
₹54.70
excl. GST
₹64.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
RUM003N02T2L
₹54.70 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 10pF
- Ciss-Input Capacitance
- 25pF
- Pd - Power Dissipation
- 150mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 10pF
- RDS(on)
- 1.2Ω
- Number
- 1 N-channel
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.01 g
Overview
Applications
- Switching
Key features
- Low on-resistance.
- Fast switching speed.
- Low voltage drive (1.8V) makes this device ideal for portable equipment.
- Drive circuits can be simple.
- Parallel use is easy.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N7002KM#C7528888amsem · SOT-723 | amsem | SOT-723 | 200 | ₹2.88 · 200 in stock | View |
 | WST2004#C719085Winsok Semicon · SOT-723 | Winsok Semicon | SOT-723 | 2,490 | ₹7.29 · 2,490 in stock | View |
 | TPM2077#C2827705TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 4,000 | ₹3.04 · 4,000 in stock | View |
 | WNM2030#C3011190TECH PUBLIC · SOT-723 | TECH PUBLIC | SOT-723 | 17,520 | ₹5.58 · 17,520 in stock | View |
 | SSM3K36MFV,L3F(T,LCFC#C396061TOSHIBA · VESM | TOSHIBA | VESM | 7,470 | ₹9.14 · 7,470 in stock | View |
