ROHMDatasheet (PDF)

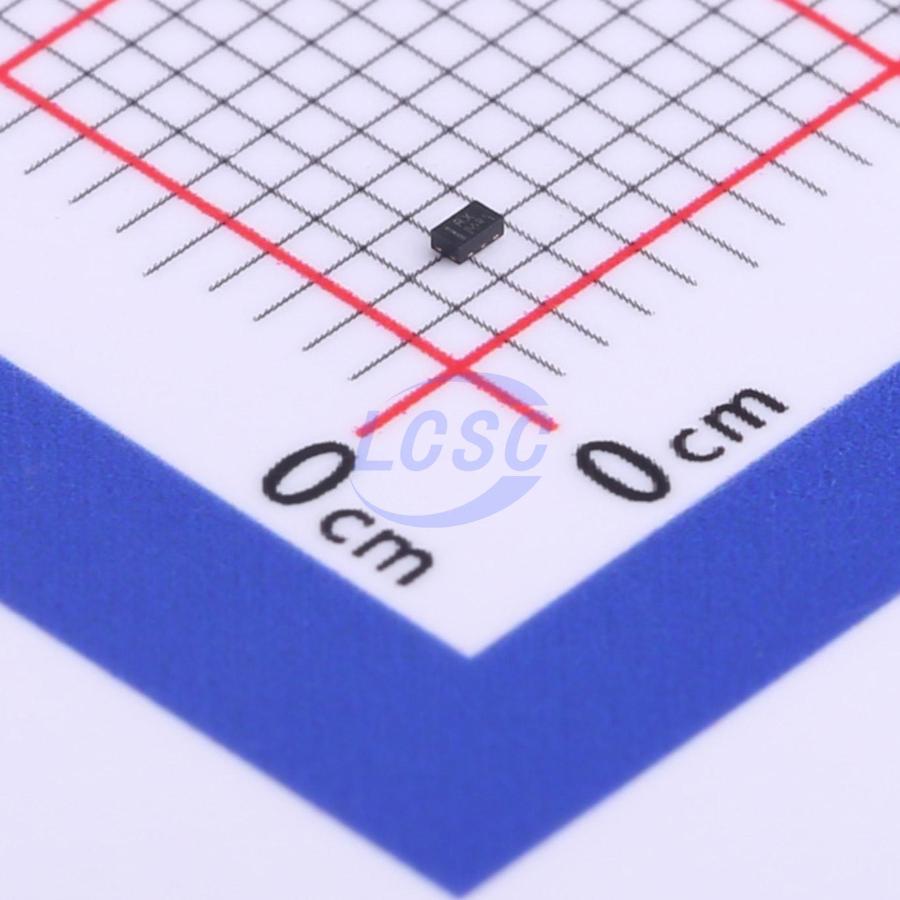

RV2C001ZPT2L
P-Channel 20V 100mA 100mW Surface Mount X1-DFN1006-3
X1-DFN1006-3ROHS3 CompliantActive
MOSFET P-CH 20V 100mA X1-DFN1006-3
- Manufacturer
- ROHM
- Manufacturer part #
- RV2C001ZPT2L
- Store part #
- C507504
- Package / case
- X1-DFN1006-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
465 in stock
#C507504
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.81 | ₹64.05 |
| 50+ | ₹10.23 | ₹511.50 |
| 150+ | ₹8.94 | ₹1,341.00 |
| 500+ | ₹7.99 | ₹3,995.00 |
| 2,500+ | ₹6.07 | ₹15,175.00 |
| 5,000+ | ₹5.68 | ₹28,400.00 |
5 × ₹12.81
₹64.05
excl. GST
₹75.58 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
RV2C001ZPT2L
₹64.05 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 4pF
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 100mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Current - Continuous Drain(Id)
- 100mA
- Reverse Transfer Capacitance (Crss)
- 1.5pF
- RDS(on)
- 3.8Ω@4.5V
- Number
- 1 P-Channel
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 300mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
Applications
- Switching
Key features
- Low on - resistance.
- High Power small mold Package (VML1006).
- Pb-free lead plating ; RoHS compliant.
- Halogen Free.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSM3J35CT,L3F#C396019TOSHIBA · CST-3 | TOSHIBA | CST-3 | 960 | ₹22.11 · 960 in stock | View |
 | CJAA3139K#C504061JSCJ · WBFBP-03E | JSCJ | WBFBP-03E | 4,600 | ₹4.31 · 4,600 in stock | View |
 | CJBA3139K#C504099JSCJ · DFN-3L(1x0.6) | JSCJ | DFN-3L(1x0.6) | 29,920 | ₹3.06 · 29,920 in stock | View |
 | CJBB3139K#C504103JSCJ · DFN-3L(1x0.6) | JSCJ | DFN-3L(1x0.6) | 9,370 | ₹4.97 · 9,370 in stock | View |
 | TPM2009EP3#C2844728TECH PUBLIC · DFN1006-3L | TECH PUBLIC | DFN1006-3L | 9,460 | ₹5.38 · 9,460 in stock | View |
