ROHMDatasheet (PDF)

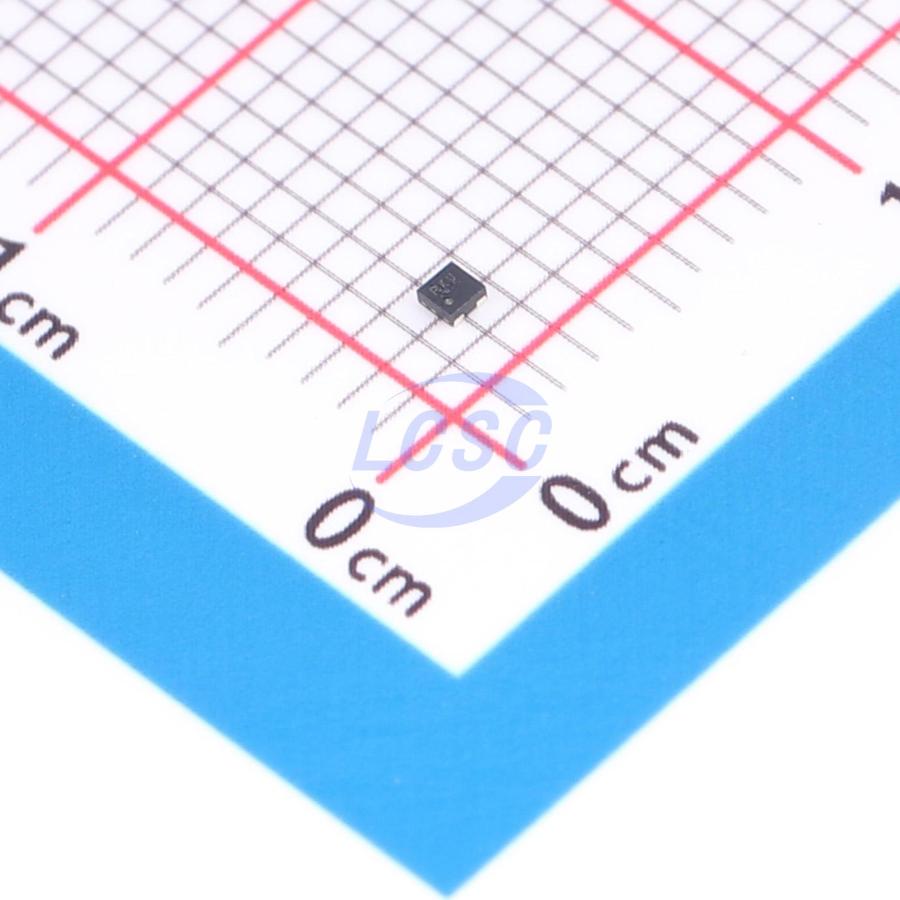

RV8L002SNHZGG2CR
60V 250mA 1W 2.4Ω@10V 1 N-channel DFN1010-3W Single FETs, MOSFETs RoHS
DFN1010-3WROHS3 CompliantActive
- Manufacturer
- ROHM
- Manufacturer part #
- RV8L002SNHZGG2CR
- Store part #
- C3277687
- Package / case
- DFN1010-3W
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
111 in stock
#C3277687
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.26 | ₹65.26 |
| 10+ | ₹50.74 | ₹507.40 |
| 30+ | ₹44.45 | ₹1,333.50 |
| 100+ | ₹36.44 | ₹3,644.00 |
| 500+ | ₹32.96 | ₹16,480.00 |
| 1,000+ | ₹31.01 | ₹31,010.00 |
1 × ₹65.26
₹65.26
excl. GST
₹77.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 8,000 per reel
RV8L002SNHZGG2CR
₹65.26 for 1 + GST
Specifications
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 250mA
- Ciss-Input Capacitance
- 15pF
- Pd - Power Dissipation
- 1W
- RDS(on)
- 2.4Ω@10V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 2.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 8,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.018 g
Overview
Leadless ultra-compact DFN0606-3 (SOT8001) SMD plastic package N-channel enhancement-mode FET using trench MOSFET technology.
Applications
- Switching Circuits - Low-Side Load Switch - Relay Driver
Key features
- Leadless, ultra-compact SMD plastic package with exposed drain pad (1.0×1.0×0.4mm) for excellent thermal performance
- Solderable side flanks for AOI
- 100% solderable tin-plated side pads with minimum solderable width of 125μm
- AEC-Q101 qualified
- ESD protection up to 2kV (HBM)
- Ultra-fast switching speed
- Ultra-low gate drive voltage (2.5V drive)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PMXB360ENEAZ#C458205Nexperia · DFN1010D-3 | Nexperia | DFN1010D-3 | On request | ₹30.97 · 0 in stock | View |
