RYCHIP Semiconductor Inc.Datasheet (PDF)

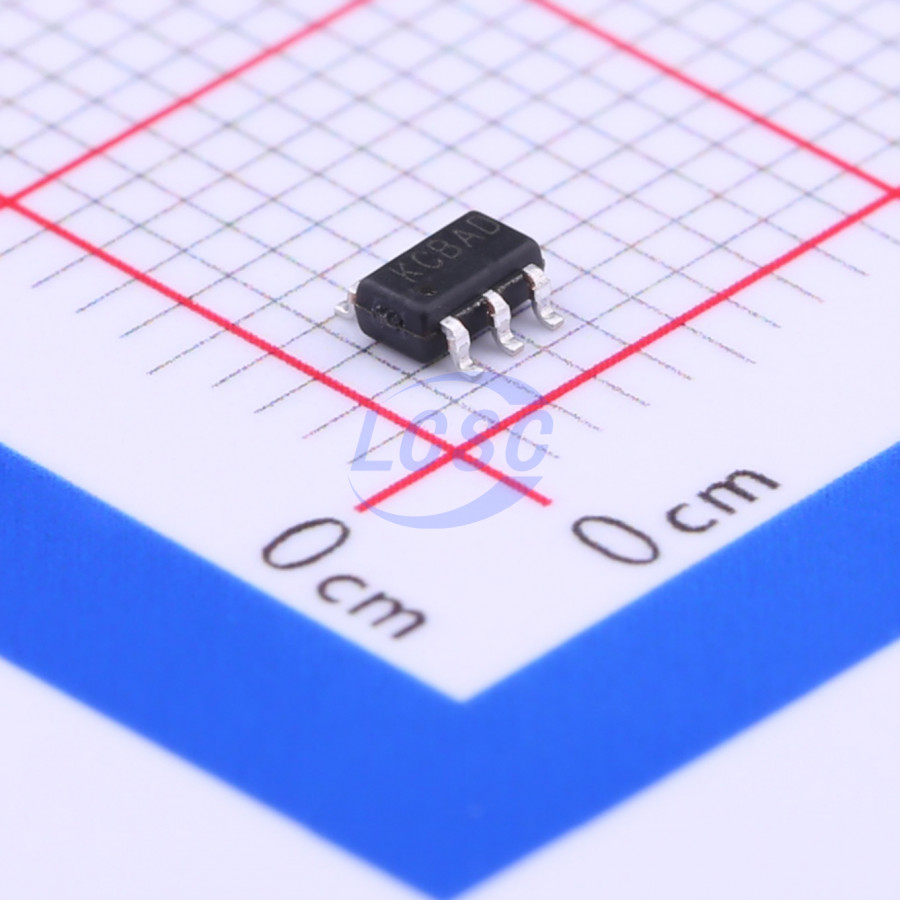

RY3710
1.2MHz Boost Adjustable 2A 600mV~24V SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
28V Output 2A 1.2MHz Boost Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY3710
- Store part #
- C370886
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C370886
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹17.34 | ₹173.40 |
| 100+ | ₹15.66 | ₹1,566.00 |
| 300+ | ₹14.72 | ₹4,416.00 |
| 3,000+ | ₹14.16 | ₹42,480.00 |
| 6,000+ | ₹13.67 | ₹82,020.00 |
| 9,000+ | ₹13.42 | ₹1,20,780.00 |
10 × ₹17.34
₹173.40
excl. GST
₹204.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY3710
₹173.40 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~12V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 600mV~24V
- Quiescent Current
- 50uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The RY3710 is a constant frequency, current mode step-up converter intended for small, low power applications. The RY3710 switches at 1.2MHz and allows the use of tiny, low cost capacitors and inductors 2mm or less in height. Internal soft-start results in small inrush current and extends battery life. The RY3710 includes under-voltage lockout, current limiting, and thermal overload protection to prevent damage in the event of an output overload. The RY3710 is available in a small 6-pin SOT-23 package.
Applications
- Digital Set-top Box (STB)
- Battery-Powered Equipment
- Tablet Personal Computer
- Portable Media Player (PMP)
- LCD Bias Supply
- General Purposes
Key features
- 2.3V to 12V Input Voltage
- Up to 28V Output Voltage
- Integrated 80mΩ Power MOSFET
- 1.2MHz Fixed Switching Frequency
- Internal 4A Switch Current Limit
- Internal Compensation
- Thermal Shutdown
- Output Adjustable from 0.6V
- -40°C to +85°C Temperature Range
- Available in SOT23-6 Package
