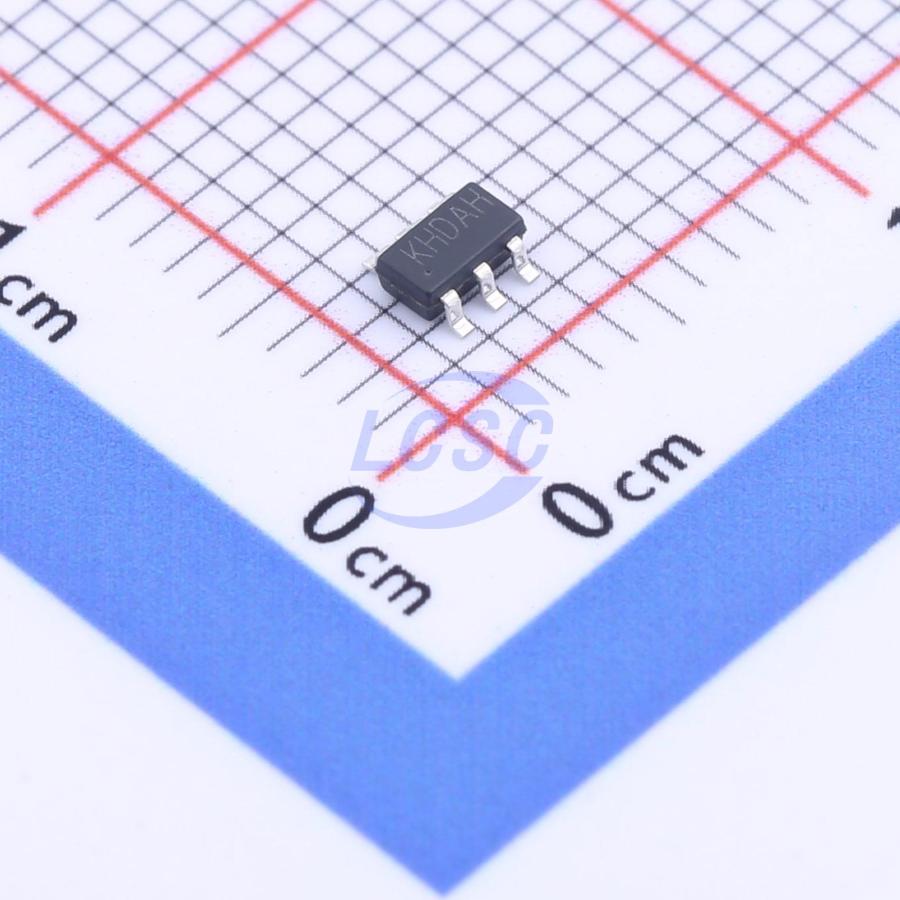

RYCHIP Semiconductor Inc.Datasheet (PDF)
RY3715
1.2MHz Boost Adjustable 600mV~18V 1A SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS CompliantActive
18V Output 1.2MHz Boost Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY3715
- Store part #
- C2935131
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,140 in stock
#C2935131
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.27 | ₹102.70 |
| 100+ | ₹8.44 | ₹844.00 |
| 300+ | ₹7.53 | ₹2,259.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.31 | ₹37,860.00 |
| 9,000+ | ₹6.03 | ₹54,270.00 |
10 × ₹10.27
₹102.70
excl. GST
₹121.19 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY3715
₹102.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.2MHz
- Number of Outputs
- 1
- Function
- Boost
- Features
- Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.3V~5.5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 600mV~18V
- Output Current
- 1A
- Quiescent Current
- 150uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.047 g
Overview
A highly integrated boost converter designed for applications requiring high voltage and high efficiency solution. It integrates a 20V power switch and can output up to 18V from input of a Li+ battery or two cell alkaline batteries in series. It operates with a switching frequency at 1.2 MHz, allowing the use of small external components. It has a typical 4A switch current limit and a 1.5 mS built - in soft start time to minimize the inrush current. It also implements output short circuit protection, output over - voltage protection and thermal shutdown. It is available in a small SOT23 - 6 package.
Applications
- Wearable Devices
- Sensor Power Supply
- Battery - Powered Equipment
- Portable Medical Equipment
Key features
- 2.3V to 5.5V Input Voltage
- Up to 18V Output Voltage
- Integrated 60 mΩ Power MOSFET
- 1.2MHz Fixed Switching Frequency
- Internal 4A Switch Current Limit
- Power Save Operation Mode at Light Load
- Internal 1.5 mS Soft Start Time
- Up to 85% Efficiency @3.6V Input 12V Output
- Output Short Circuit Protection
- Output Over - Voltage Protection
- Thermal Shutdown Protection
- Output Adjustable from 0.6V
- -40°C to +85°C Temperature Range
- Available in SOT23 - 6 Package
