RYCHIP Semiconductor Inc.Datasheet (PDF)

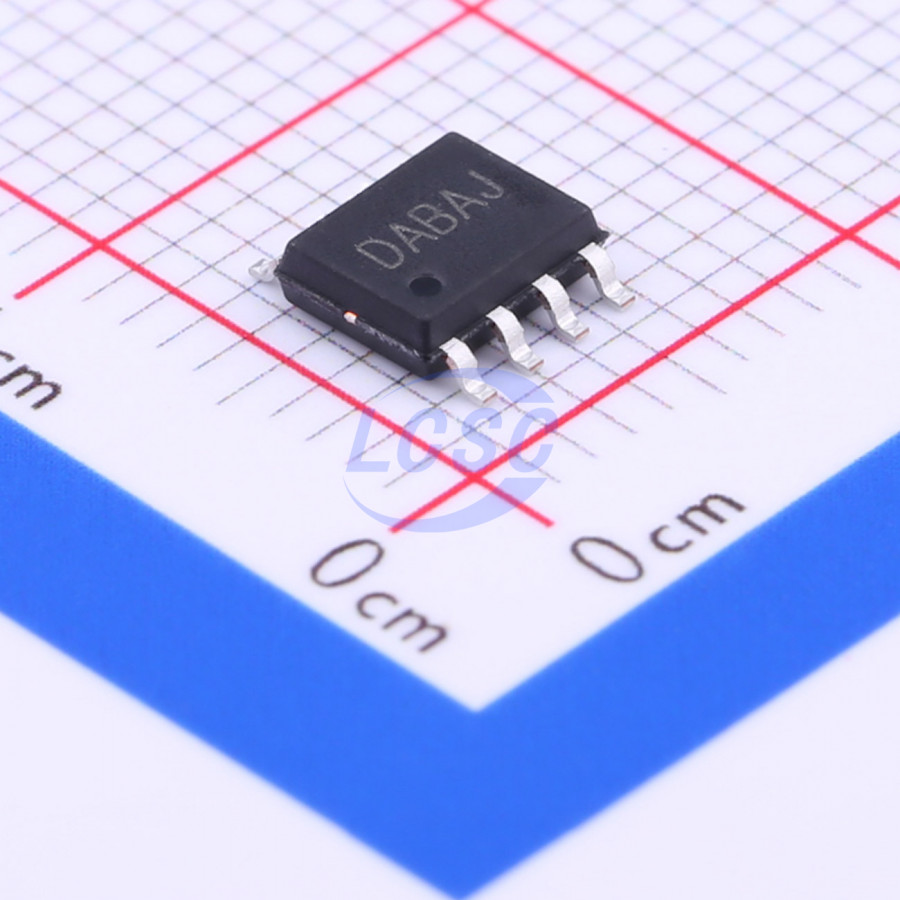

RY3834
Step-down type 500kHz Adjustable 904mV~940mV 3A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
18V 3A 500kHz Synchronous Step-Down Regulator
- Manufacturer
- RYCHIP Semiconductor Inc.
- Manufacturer part #
- RY3834
- Store part #
- C370772
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,170 in stock
#C370772
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.89 | ₹104.45 |
| 50+ | ₹16.29 | ₹814.50 |
| 150+ | ₹14.31 | ₹2,146.50 |
| 500+ | ₹11.85 | ₹5,925.00 |
| 3,000+ | ₹10.77 | ₹32,310.00 |
| 6,000+ | ₹10.11 | ₹60,660.00 |
5 × ₹20.89
₹104.45
excl. GST
₹123.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RY3834
₹104.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 904mV~940mV
- Output Current
- 3A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.186 g
Overview
The RY3834 is a high frequency, synchronous, rectified, step-down, switch-mode converter with internal power MOSFETs. It offers a very compact solution to achieve a 4A peak output current over a wide input supply range, with excellent load and line regulation. The RY3834 requires a minimal number of readily available, external components and is available in a space saving ESOP8 package.
Applications
- Digital Set-top Box (STB)
- Tablet Personal Computer (Pad)
- Flat-Panel Television and Monitor
- Wi-Fi Router / AP
- Digital Video Recorder (DVR)
- Portable Media Player (PMP)
- Cable Modem / XDSL
- General Purposes
Key features
- Wide 4V to 18V Operating Input Range
- 3A Continuous Output Current
- 500kHz Switching Frequency
- Short Protection with Hiccup-Mode
- Built-in Over Current Limit
- Built-in Over Voltage Protection
- Internal Power-Save Mode (PFM/PWM)
- Internal Soft-Start
- 70mΩ/50mΩ Low RDS(ON) Internal Power MOSFETs
- Output Adjustable from 0.925V
- No Schottky Diode Required
- Integrated internal compensation
- Thermal Shutdown
- Available in ESOP8 Package
- -40°C to +85°C Temperature Range
