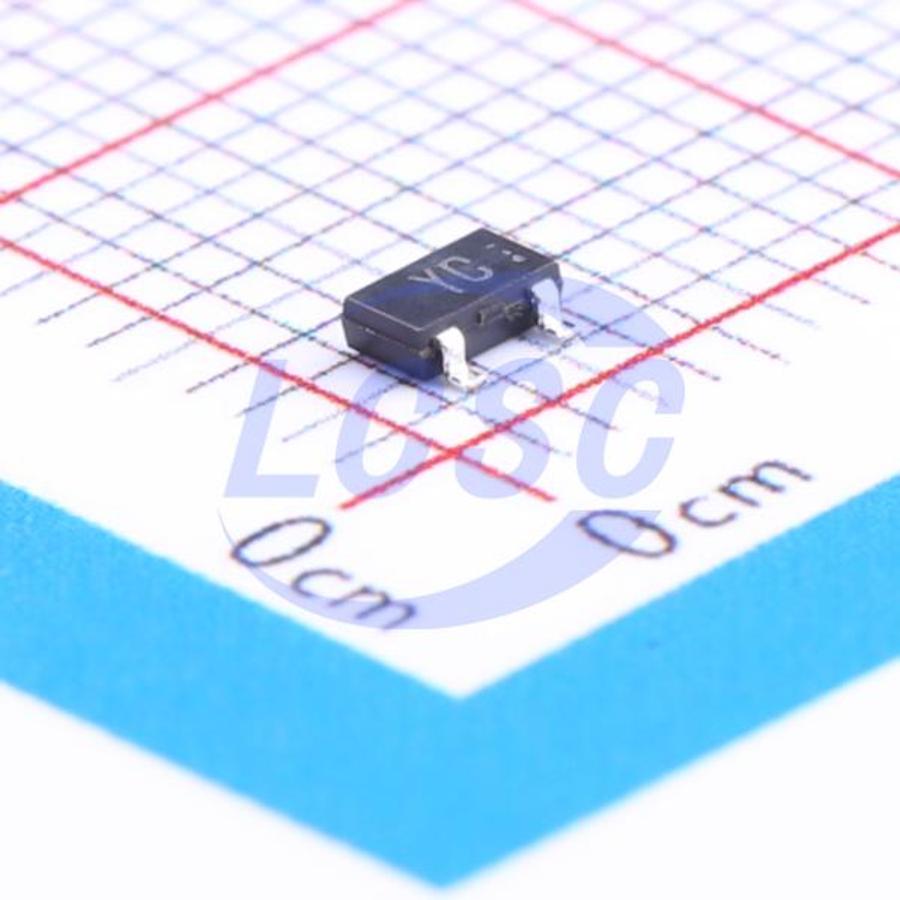

RZR025P01TL
P-Channel 12V 2.5A 1W Surface Mount SOT-23
SOT-23ROHS CompliantActive
MOSFET P-CH 12V 2.5A SOT-23
- Manufacturer
- ROHM
- Manufacturer part #
- RZR025P01TL
- Store part #
- C162067
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
385 in stock
#C162067
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.39 | ₹161.95 |
| 50+ | ₹25.63 | ₹1,281.50 |
| 150+ | ₹22.74 | ₹3,411.00 |
| 500+ | ₹19.13 | ₹9,565.00 |
| 3,000+ | ₹15.16 | ₹45,480.00 |
| 6,000+ | ₹14.20 | ₹85,200.00 |
5 × ₹32.39
₹161.95
excl. GST
₹191.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RZR025P01TL
₹161.95 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 130pF
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 1W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 12V
- Current - Continuous Drain(Id)
- 2.5A
- Reverse Transfer Capacitance (Crss)
- 125pF
- RDS(on)
- 61mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 13nC
- Vgs
- ±10V
- Gate Threshold Voltage (Vgs(th))
- 1V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Applications
- Switching applications
Key features
- Low on-resistance
- Built-in G-S Protection Diode
- Small and surface mount package(TSMT3)
- Pb-free lead plating ; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| RQ5A025ZPTL#C6201367ROHM · TSMT3 | ROHM | TSMT3 | 84 | ₹75.19 · 84 in stock | View | |
 | SSM3J358R,LF#C146322TOSHIBA · SOT-23F | TOSHIBA | SOT-23F | 1 | ₹28.75 · 1 in stock | View |
 | WST3415A#C2906355Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 6,000 | ₹7.49 · 6,000 in stock | View |
 | IRLML6401TRPBF#C5182042TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 7,250 | ₹8.82 · 7,250 in stock | View |
 | WST3325#C148355Winsok Semicon · SOT-23-3L | Winsok Semicon | SOT-23-3L | 1,850 | ₹10.76 · 1,850 in stock | View |
