VISHAYDatasheet (PDF)

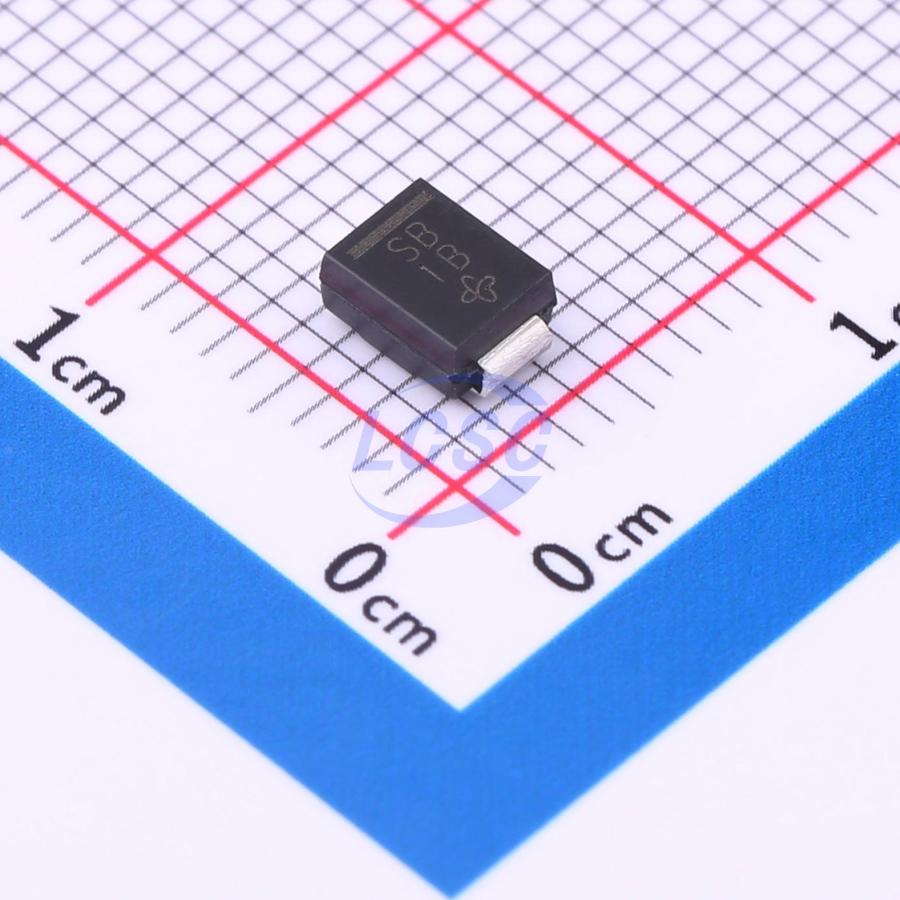

S2B-E3/52T
Diode 1 Independent 100V 1.5A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
DIODE STANDARD 100V 1.5A DO-214AA(SMB)
- Manufacturer
- VISHAY
- Manufacturer part #
- S2B-E3/52T
- Store part #
- C3008954
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C3008954
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.09 | ₹130.45 |
| 50+ | ₹21.43 | ₹1,071.50 |
| 150+ | ₹19.43 | ₹2,914.50 |
| 750+ | ₹15.56 | ₹11,670.00 |
| 2,250+ | ₹14.45 | ₹32,512.50 |
| 5,250+ | ₹13.79 | ₹72,397.50 |
5 × ₹26.09
₹130.45
excl. GST
₹153.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 750 per reel
S2B-E3/52T
₹130.45 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1.15V@1.5A
- Reverse Leakage Current (Ir)
- 1uA
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 750 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.21 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop RoHS
- Low leakage current COMPLIANT HALOGEN
- High forward surge capability FREE
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
