VISHAYDatasheet (PDF)

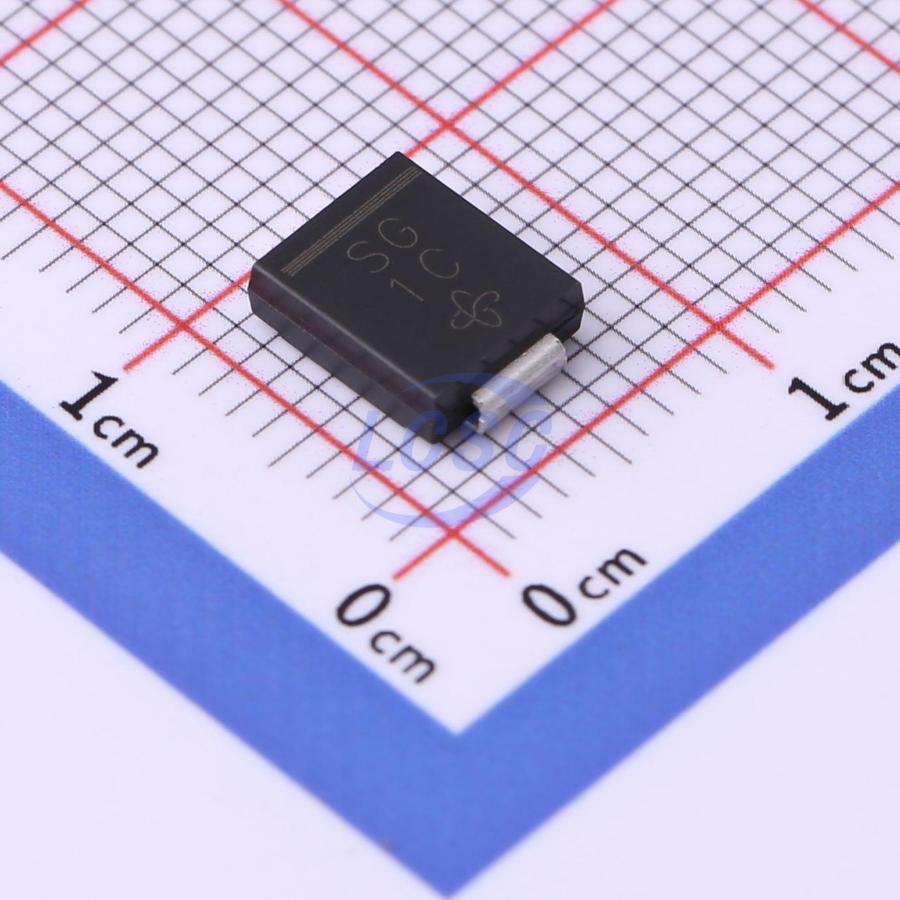

S3G-E3/9AT
Diode 1 Independent 400V 3A Surface Mount DO-214AB
DO-214ABROHS3 CompliantActive
DIODE STANDARD 400V 3A DO-214AB
- Manufacturer
- VISHAY
- Manufacturer part #
- S3G-E3/9AT
- Store part #
- C3014149
- Package / case
- DO-214AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C3014149
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.63 | ₹143.15 |
| 50+ | ₹28.10 | ₹1,405.00 |
| 150+ | ₹27.74 | ₹4,161.00 |
| 500+ | ₹27.39 | ₹13,695.00 |
5 × ₹28.63
₹143.15
excl. GST
₹168.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
S3G-E3/9AT
₹143.15 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Voltage - Forward(Vf@If)
- 1.15V@2.5A
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
- AEC - Q101 qualified available
