VISHAYDatasheet (PDF)

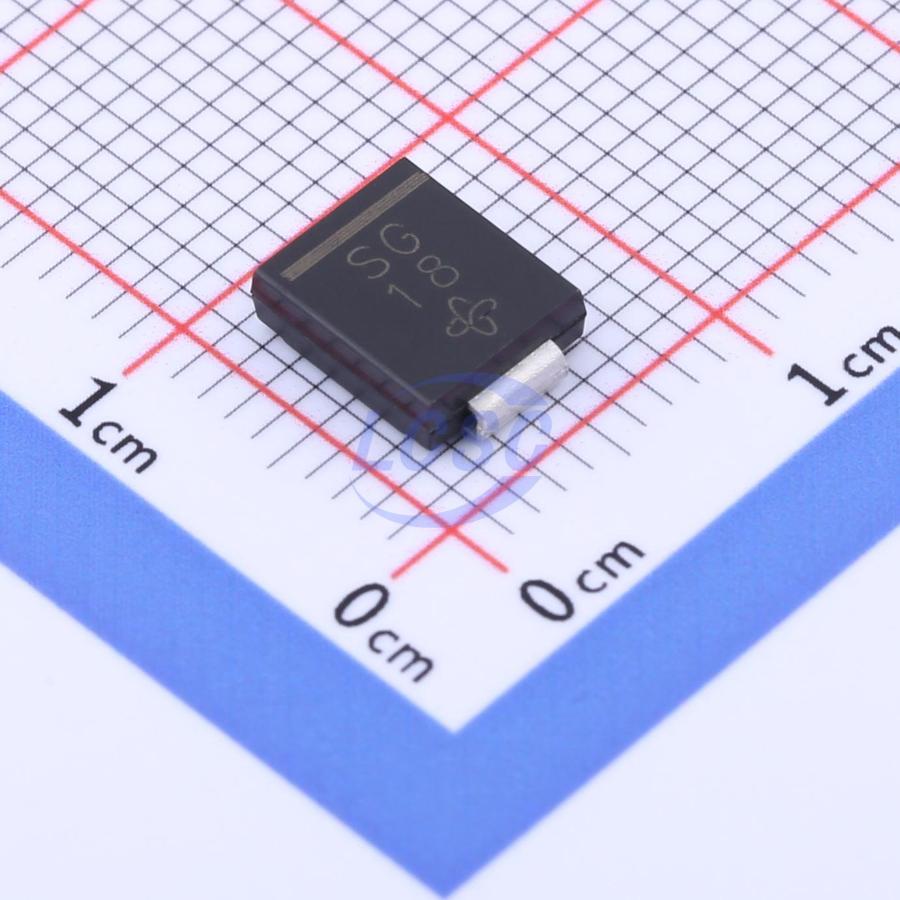

S3GHE3_A/I
Diode 1 Independent 400V 3A Surface Mount DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
DIODE STANDARD 400V 3A DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- S3GHE3_A/I
- Store part #
- C2981055
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,276 in stock
#C2981055
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.89 | ₹35.89 |
| 10+ | ₹31.06 | ₹310.60 |
| 30+ | ₹28.97 | ₹869.10 |
| 100+ | ₹26.24 | ₹2,624.00 |
| 500+ | ₹25.19 | ₹12,595.00 |
| 1,000+ | ₹24.55 | ₹24,550.00 |
1 × ₹35.89
₹35.89
excl. GST
₹42.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
S3GHE3_A/I
₹35.89 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Voltage - Forward(Vf@If)
- 1.15V@2.5A
- Reverse Leakage Current (Ir)
- 10uA@400V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.364 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
- AEC - Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5G-E3/57T#C142622VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 440 | ₹24.93 · 440 in stock | View |
 | S5MHE3_A/I#C17343199VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 500 | ₹97.94 · 500 in stock | View |
 | GN3M#C174030Suzhou Good-Ark Elec · SMC(DO-214AB) | Suzhou Good-Ark Elec | SMC(DO-214AB) | 2,415 | ₹25.22 · 2,415 in stock | View |
 | S5MS-E3/9AT#C17598338VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 1,115 | ₹26.79 · 1,115 in stock | View |
 | S5G#C18548242DOWO · SMC | DOWO | SMC | 2,120 | ₹4.86 · 2,120 in stock | View |
