VISHAYDatasheet (PDF)

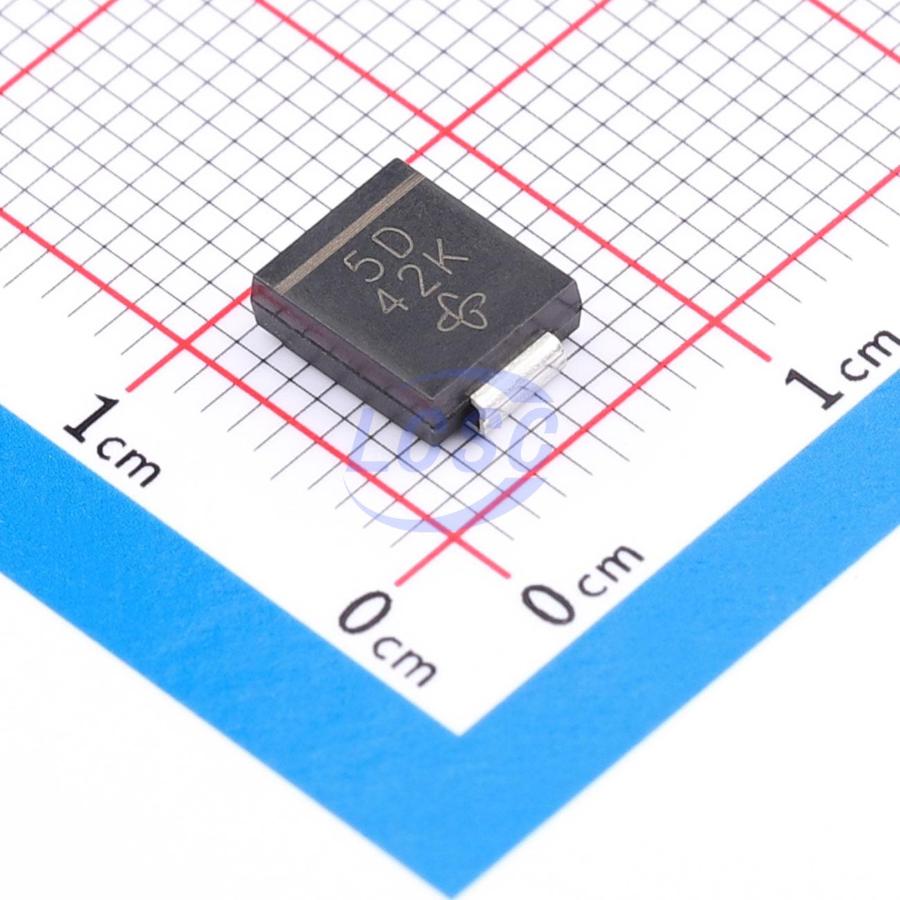

S5D-E3/9AT
200V 1 Independent 1.15V@5A 5A DO-214AB(SMC) Single Diodes RoHS
DO-214AB(SMC)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- S5D-E3/9AT
- Store part #
- C17563407
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
206 in stock
#C17563407
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹135.82 | ₹135.82 |
| 10+ | ₹110.83 | ₹1,108.30 |
| 30+ | ₹98.22 | ₹2,946.60 |
| 100+ | ₹85.62 | ₹8,562.00 |
| 500+ | ₹78.23 | ₹39,115.00 |
| 1,000+ | ₹74.33 | ₹74,330.00 |
1 × ₹135.82
₹135.82
excl. GST
₹160.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
S5D-E3/9AT
₹135.82 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@5A
- Reverse Leakage Current (Ir)
- 10uA
- Current - Rectified
- 5A
- Non-Repetitive Peak Forward Surge Current
- 100A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.31 g
Overview
Applications
- General-purpose rectifier and freewheeling diode for power supplies, inverters, and converters in consumer, automotive, and telecom applications
Key features
- Thin package
- Suitable for automatic placement
- Glass passivated chip junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- MSL Level 1 per J-STD-020, LF max peak temperature 260℃
- AEC-Q101 qualified parts available
- Automotive ordering code: base part number P/N HE3 or P/N HM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S5G-E3/57T#C142622VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 440 | ₹24.93 · 440 in stock | View |
 | S5MHE3_A/I#C17343199VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 500 | ₹97.94 · 500 in stock | View |
 | S5MS-E3/9AT#C17598338VISHAY · DO-214AB(SMC) | VISHAY | DO-214AB(SMC) | 1,115 | ₹26.79 · 1,115 in stock | View |
 | S5G#C18548242DOWO · SMC | DOWO | SMC | 2,120 | ₹4.86 · 2,120 in stock | View |
| S5K#C34693482Taiwan Semiconductor · DO-214AB | Taiwan Semiconductor | DO-214AB | 100 | ₹188.94 · 100 in stock | View | |
