DIODESDatasheet (PDF)

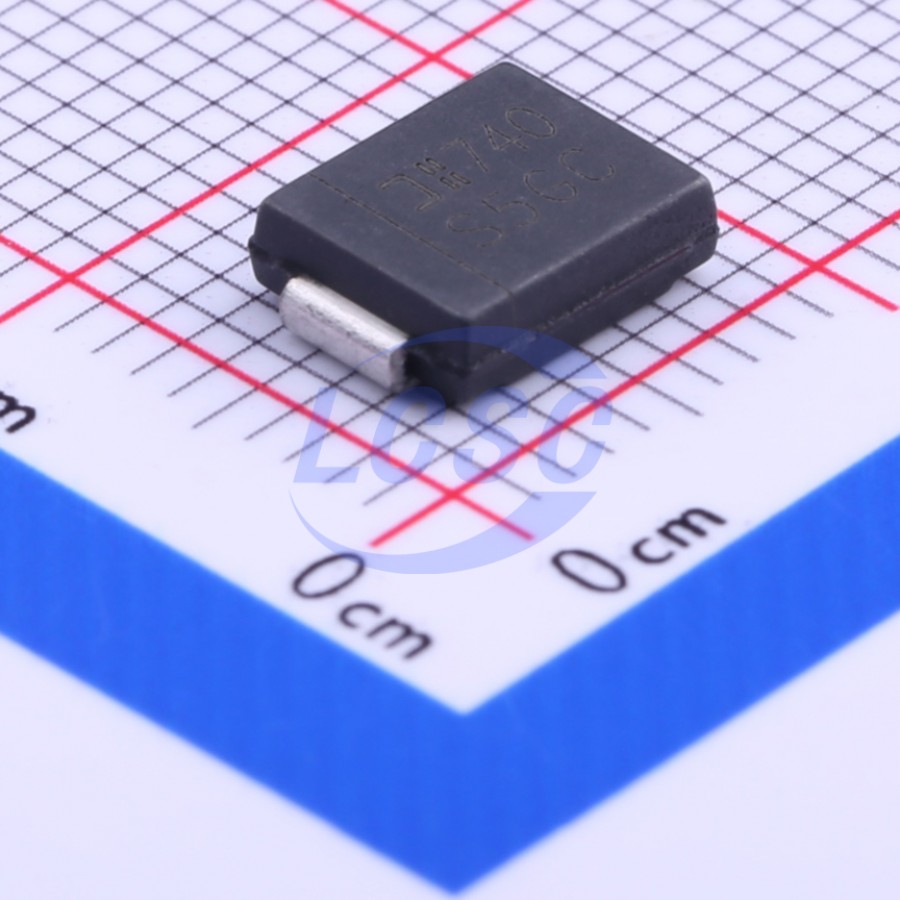

S5GC-13-F
Diode 400V 5A SMC(DO-214AB)
SMC(DO-214AB)ROHS3 CompliantActive
DIODE STANDARD 400V 5A SMC(DO-214AB)
- Manufacturer
- DIODES
- Manufacturer part #
- S5GC-13-F
- Store part #
- C211400
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
870 in stock
#C211400
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.39 | ₹186.95 |
| 50+ | ₹29.69 | ₹1,484.50 |
| 150+ | ₹26.39 | ₹3,958.50 |
| 500+ | ₹22.27 | ₹11,135.00 |
| 3,000+ | ₹20.44 | ₹61,320.00 |
| 6,000+ | ₹19.34 | ₹1,16,040.00 |
5 × ₹37.39
₹186.95
excl. GST
₹220.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S5GC-13-F
₹186.95 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@5A
- Reverse Leakage Current (Ir)
- 10uA@400V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 100A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
