LittelfuseDatasheet (PDF)

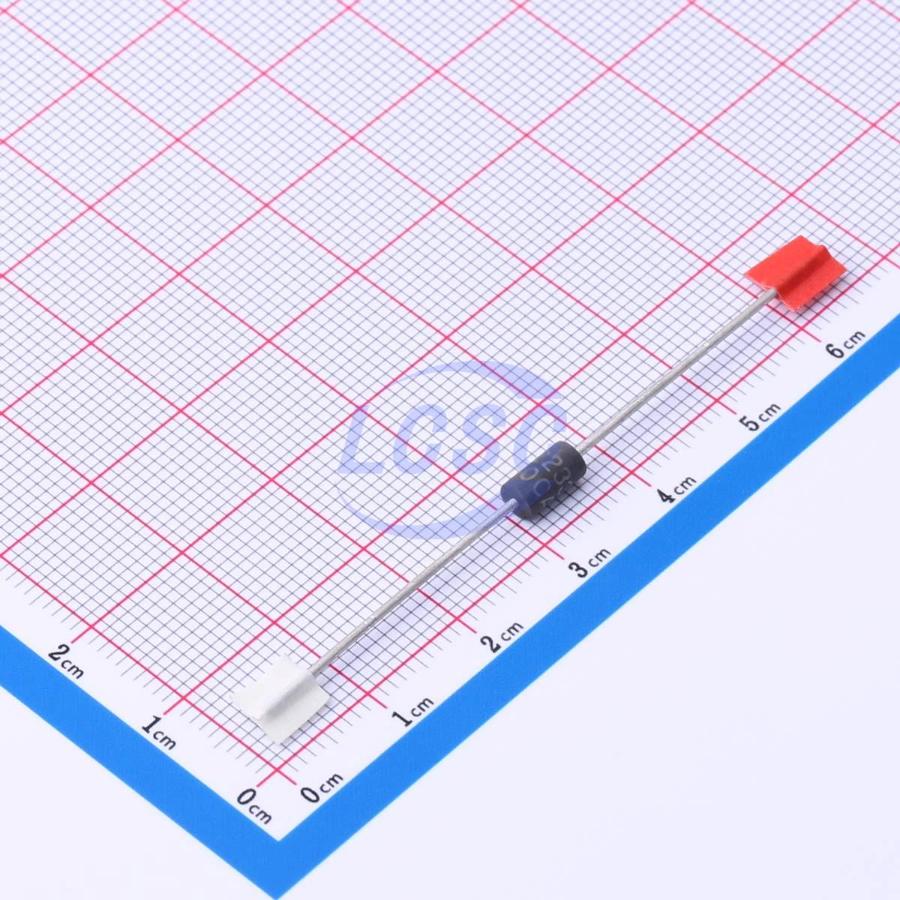

SA30CA
45.4VC Clamp 10.5A@10/1000us Ipp TVS DIODE DO-204AC(DO-15)
DO-204AC(DO-15)ROHS3 CompliantActive
TVS DIODE 30VWM 45.4VC DO-204AC(DO-15)
- Manufacturer
- Littelfuse
- Manufacturer part #
- SA30CA
- Store part #
- C1974821
- Package / case
- DO-204AC(DO-15)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C1974821
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.37 | ₹72.37 |
| 10+ | ₹57.59 | ₹575.90 |
| 30+ | ₹51.07 | ₹1,532.10 |
| 100+ | ₹43.25 | ₹4,325.00 |
| 500+ | ₹39.56 | ₹19,780.00 |
| 1,000+ | ₹37.60 | ₹37,600.00 |
1 × ₹72.37
₹72.37
excl. GST
₹85.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA30CA
₹72.37 for 1 + GST
Specifications
- Clamping Voltage
- 48.4V
- Peak Pulse Current (Ipp)
- 10.5A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 500W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 33.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 30V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.48 g
Overview
The SA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- 500N peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- V @ T = V @25°C x (1+αT x (T - 25)) (αT:Temperature Coeffcient, typical value is 0.1% )
- Glass passivated chip junction in DO - 15 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over - specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Low incremental surge resistance
- Typical |R less than 1μΔ when VBR max>13V
- High temperature to refow soldering guaranteed: 260°C/40sec / 0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
- Plastic package is fammability rated V - 0 per Underwriters Laboratories
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SA28CA#C1977510Littelfuse · DO-204AC(DO-15) | Littelfuse | DO-204AC(DO-15) | 4 | ₹110.74 · 4 in stock | View |
| P6KE36CA#C5294513JSCJ · DO-15 | JSCJ | DO-15 | 2,420 | ₹11.87 · 2,420 in stock | View | |
 | P6KE36CA#C284092DOWO · DO-15 | DOWO | DO-15 | 1,070 | ₹8.39 · 1,070 in stock | View |
 | P6KE36CA#C600793BORN · DO-15(DO-204AC) | BORN | DO-15(DO-204AC) | 8,250 | ₹8.48 · 8,250 in stock | View |
 | P6KE36CA-AT/B#C776087Brightking · DO-204AC(DO-15) | Brightking | DO-204AC(DO-15) | 1,610 | ₹11.62 · 1,610 in stock | View |
