VISHAYDatasheet (PDF)

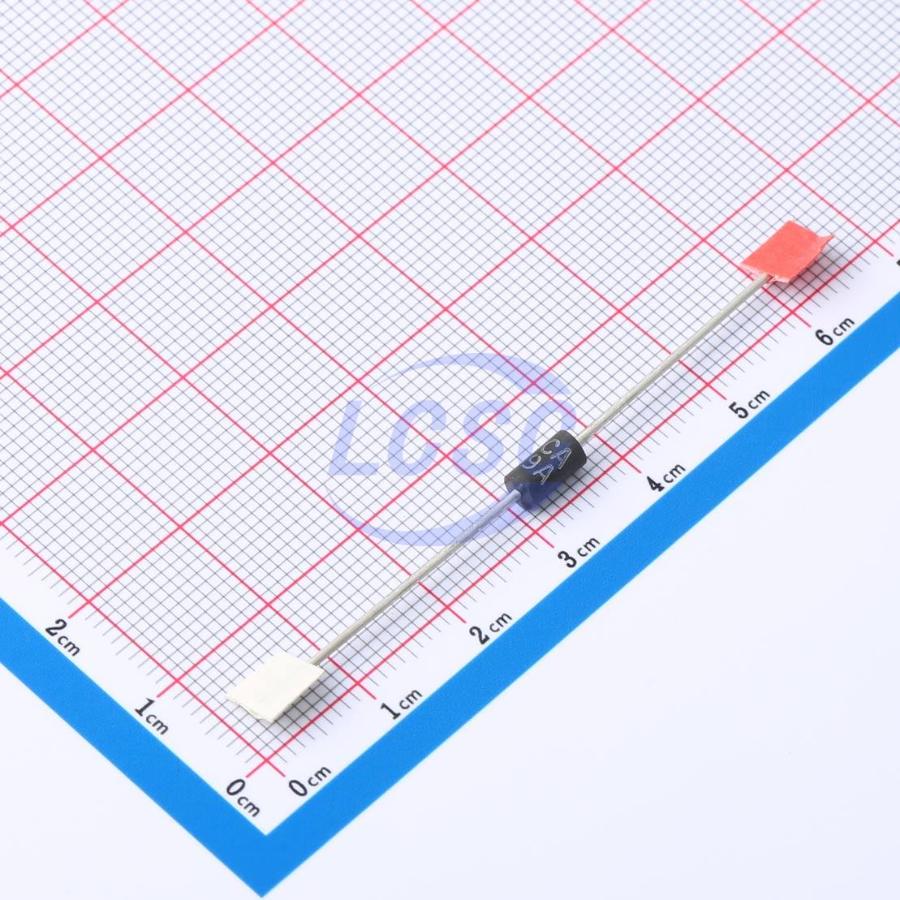

SA5.0CA-E3/54
9.2VC Clamp 54.3A@10/1000us Ipp TVS DIODE DO-15(DO-204AC)
DO-15(DO-204AC)ROHS3 CompliantActive
TVS DIODE 5VWM 9.2VC DO-15(DO-204AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SA5.0CA-E3/54
- Store part #
- C1973200
- Package / case
- DO-15(DO-204AC)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7 in stock
#C1973200
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.37 | ₹62.37 |
| 10+ | ₹61.07 | ₹610.70 |
| 30+ | ₹60.20 | ₹1,806.00 |
| 100+ | ₹59.11 | ₹5,911.00 |
1 × ₹62.37
₹62.37
excl. GST
₹73.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA5.0CA-E3/54
₹62.37 for 1 + GST
Specifications
- Clamping Voltage
- 9.2V
- Operating Temperature
- -55℃~+175℃
- Peak Pulse Current (Ipp)
- 54.3A@10/1000us
- Peak Pulse Power Dissipation (Ppp)
- 500W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.25V
- type
- TVS
- Reverse Leakage Current (Ir)
- 600uA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.457 g
Overview
Applications
- Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, and telecommunication.
Key features
- Glass passivated chip junction
- Available in uni-directional and bi-directional
- 500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle): 0.01 %
- Excellent clamping capability
- Very fast response time
- Low incremental surge resistance
- Solder dip 275 °C max. 10 s, per JESD 22-B106
- AEC-Q101 qualified
