LittelfuseDatasheet (PDF)

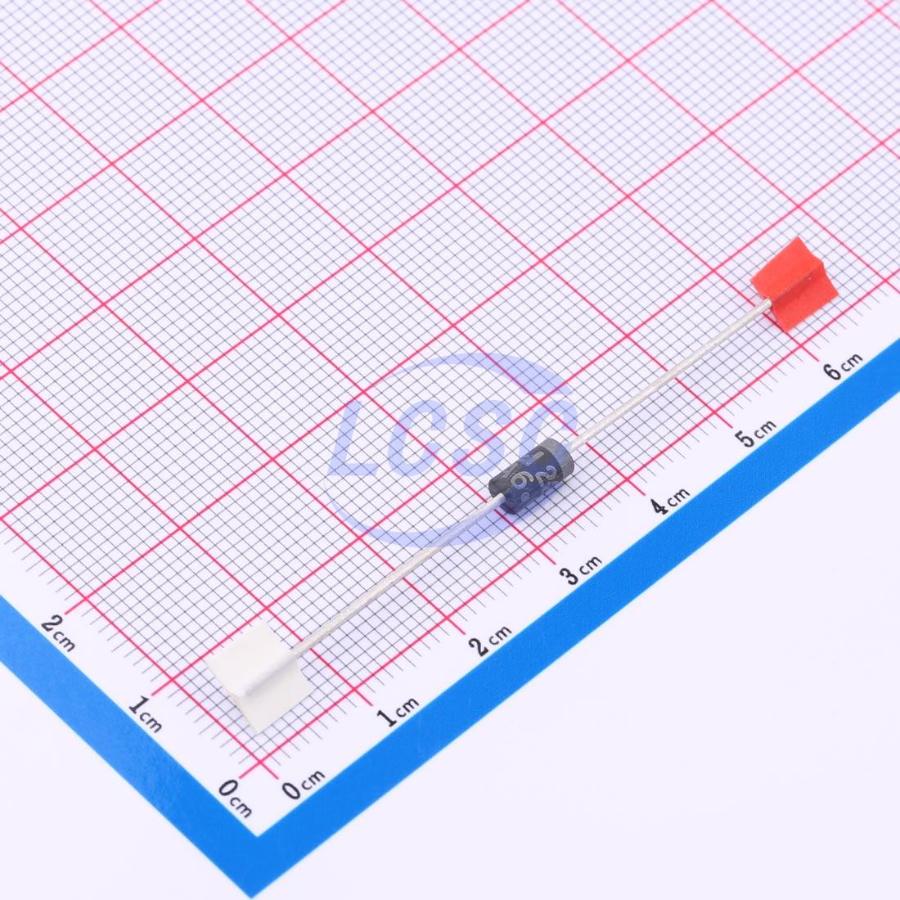

SA6.0A
10.3VC Clamp 49.5A@10/1000us Ipp TVS DIODE DO-204AC(DO-15)
DO-204AC(DO-15)ROHS3 CompliantActive
TVS DIODE 6.5VWM 10.3VC DO-204AC(DO-15)
- Manufacturer
- Littelfuse
- Manufacturer part #
- SA6.0A
- Store part #
- C1973281
- Package / case
- DO-204AC(DO-15)
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
54 in stock
#C1973281
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.89 | ₹68.89 |
| 10+ | ₹54.34 | ₹543.40 |
| 30+ | ₹48.02 | ₹1,440.60 |
| 100+ | ₹40.21 | ₹4,021.00 |
| 500+ | ₹36.73 | ₹18,365.00 |
| 1,000+ | ₹34.56 | ₹34,560.00 |
1 × ₹68.89
₹68.89
excl. GST
₹81.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SA6.0A
₹68.89 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -65℃~+175℃
- Peak Pulse Current (Ipp)
- 49.5A
- Peak Pulse Power Dissipation (Ppp)
- 500W@10/1000us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.37V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 600uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
The SA Series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- TVS devices are ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
Key features
- 500N peak pulse capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- V @ T = V @25°C x (1+αT x (T - 25)) (αT:Temperature Coeffcient, typical value is 0.1% )
- Glass passivated chip junction in DO - 15 Package
- Fast response time: typically less than 1.0ps from 0 Volts to BV min
- Excellent clamping capability
- Typical failure mode is short from over - specifed voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC - 61000 - 4 - 2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000 - 4 - 2
- EFT protection of data lines in accordance with IEC 61000 - 4 - 4
- Low incremental surge resistance
- Typical |R less than 1μΔ when VBR max>13V
- High temperature to refow soldering guaranteed: 260°C/40sec / 0.375"(9.5mm) lead length, 5 lbs., (2.3kg) tension
- Plastic package is fammability rated V - 0 per Underwriters Laboratories
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb - free E3 means 2nd level interconnect is Pbfree and the terminal finish material is tin(Sn) (IPC/ JEDEC J - STD - 609A.01)
