LittelfuseDatasheet (PDF)

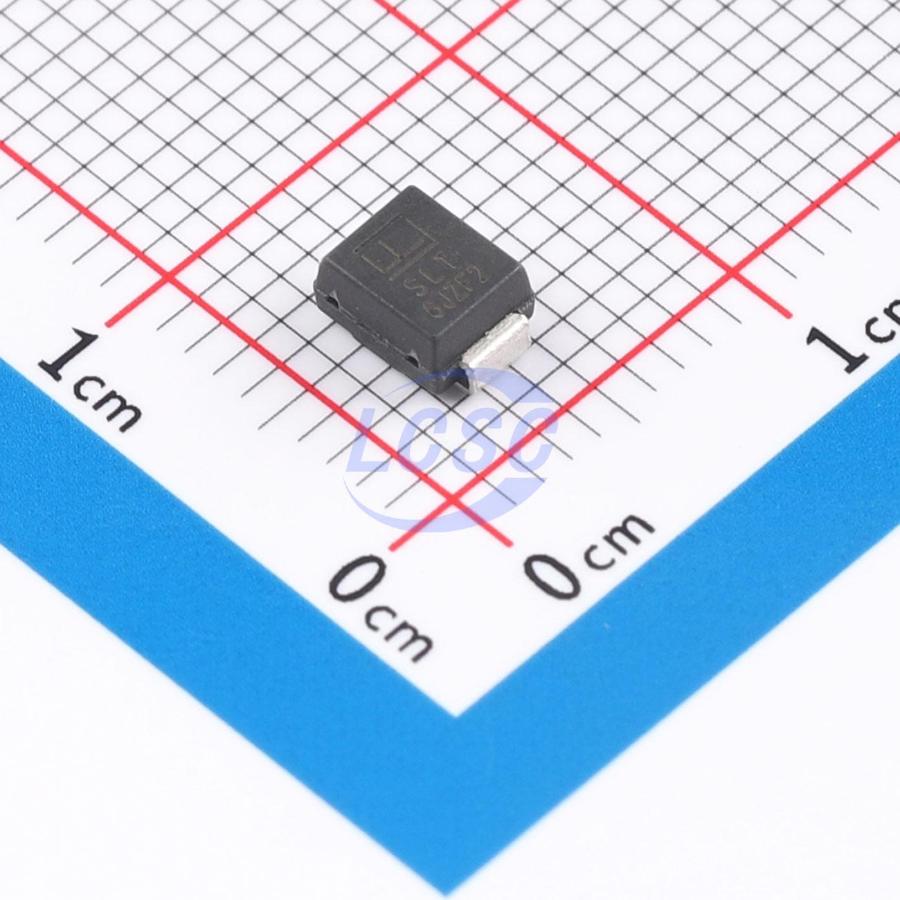

SACB18
28.8VC Clamp 15A Ipp TVS DIODE SMB
SMBROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- SACB18
- Store part #
- C1976688
- Package / case
- SMB
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
258 in stock
#C1976688
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹193.83 | ₹193.83 |
| 10+ | ₹166.53 | ₹1,665.30 |
| 30+ | ₹151.56 | ₹4,546.80 |
| 100+ | ₹134.65 | ₹13,465.00 |
| 500+ | ₹127.27 | ₹63,635.00 |
| 1,000+ | ₹123.81 | ₹1,23,810.00 |
1 × ₹193.83
₹193.83
excl. GST
₹228.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SACB18
₹193.83 for 1 + GST
Specifications
- Clamping Voltage
- 28.8V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 15A
- Peak Pulse Power Dissipation (Ppp)
- 500W@10/1000us
- Voltage - Breakdown
- 20V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.143 g
Overview
SACB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- Telecom
- Computer
- Industrial
- Consumer electronic applications
Key features
- 500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- For surface mounted applications in order to optimize board space
- Low profile package
- Built-in strain relief
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- V @ T = V @25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1% )
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to BV min
- Excellent clamping capability
- Low incremental surge resistance
- High temperature to reflow soldering guaranteed: 260°C/40sec
- Plastic package is flammability rated V-0 per Underwriters Laboratories
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
