LittelfuseDatasheet (PDF)

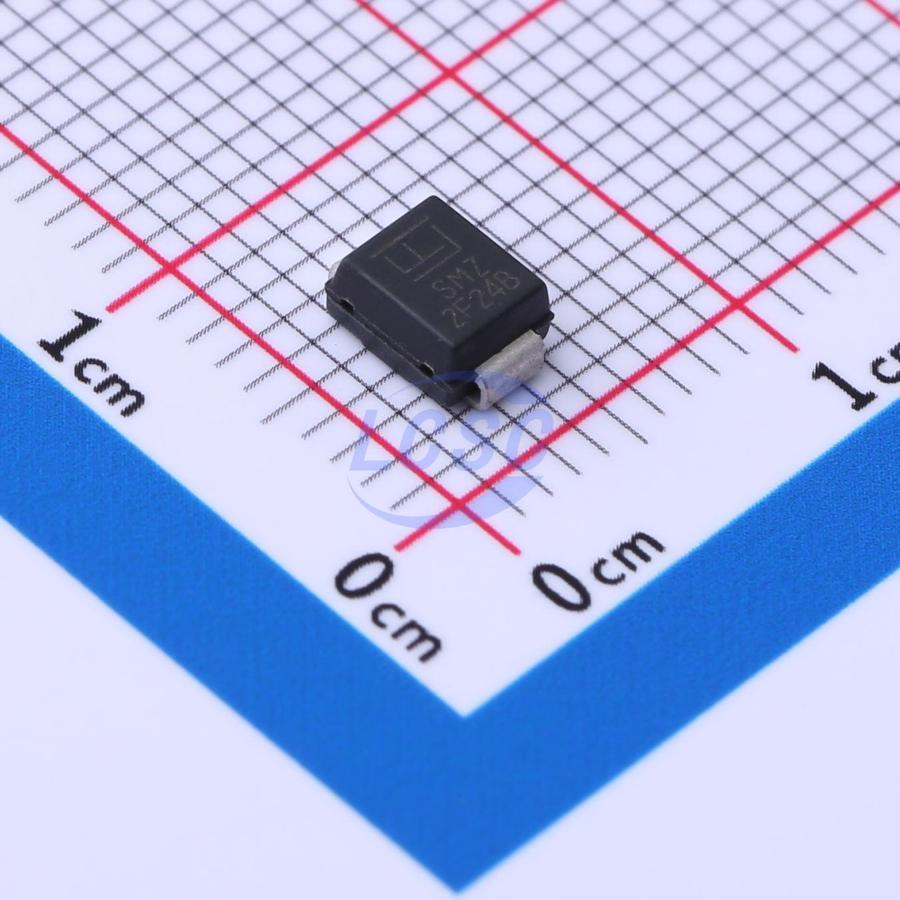

SACB50
88VC Clamp 5.8A Ipp TVS DIODE DO-214AA
DO-214AAROHS3 CompliantActive
TVS DIODE 50VWM 88VC DO-214AA
- Manufacturer
- Littelfuse
- Manufacturer part #
- SACB50
- Store part #
- C3706751
- Package / case
- DO-214AA
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3706751
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹164.86 | ₹164.86 |
| 10+ | ₹140.15 | ₹1,401.50 |
| 30+ | ₹127.89 | ₹3,836.70 |
| 100+ | ₹115.64 | ₹11,564.00 |
| 500+ | ₹108.34 | ₹54,170.00 |
| 1,000+ | ₹104.46 | ₹1,04,460.00 |
1 × ₹164.86
₹164.86
excl. GST
₹194.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SACB50
₹164.86 for 1 + GST
Specifications
- Clamping Voltage
- 88V
- Operating Temperature
- -65℃~+150℃
- Peak Pulse Current (Ipp)
- 5.8A
- Peak Pulse Power Dissipation (Ppp)
- 500W
- Number of Channels
- 1
- Voltage - Breakdown
- 55.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 5uA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 50V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
SACB series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events.
Applications
- Telecom
- Computer
- Industrial
- Consumer electronic applications
Key features
- 500W peak pulse power capability at 10/1000μs waveform, repetition rate (duty cycles): 0.01%
- For surface mounted applications in order to optimize board space
- Low profile package
- Built-in strain relief
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30kV(Air), 30kV (Contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- V @ T = V @25°C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1% )
- Glass passivated chip junction
- Fast response time: typically less than 1.0ps from 0V to BV min
- Excellent clamping capability
- Low incremental surge resistance
- High temperature to reflow soldering guaranteed: 260°C/40sec
- Plastic package is flammability rated V-0 per Underwriters Laboratories
- Meet MSL level1, per J-STD-020, LF maximun peak of 260°C
- Matte tin lead–free plated
- Halogen free and RoHS compliant
- Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD609A.01)
